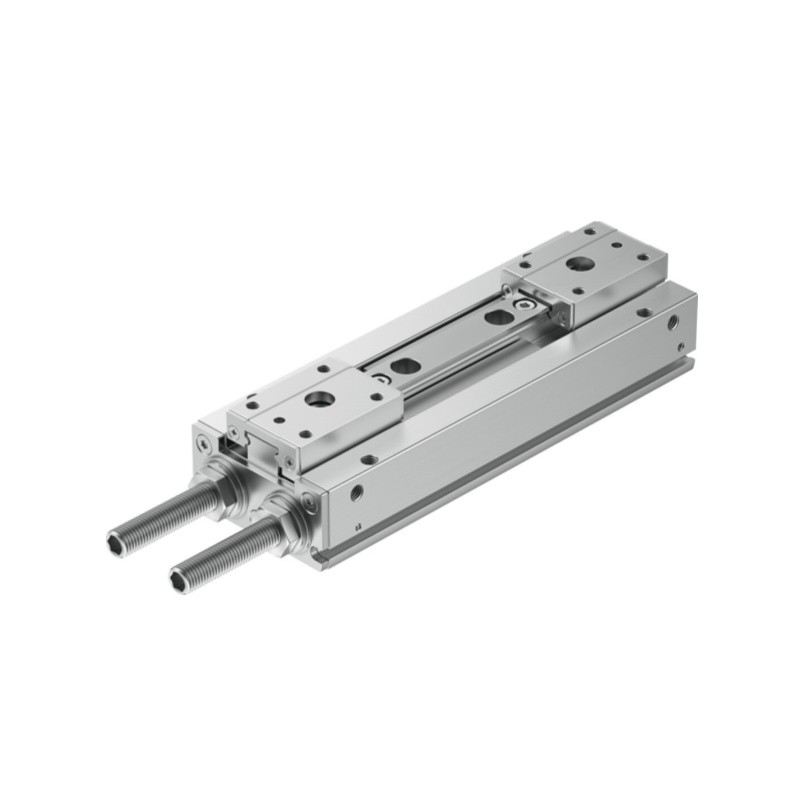

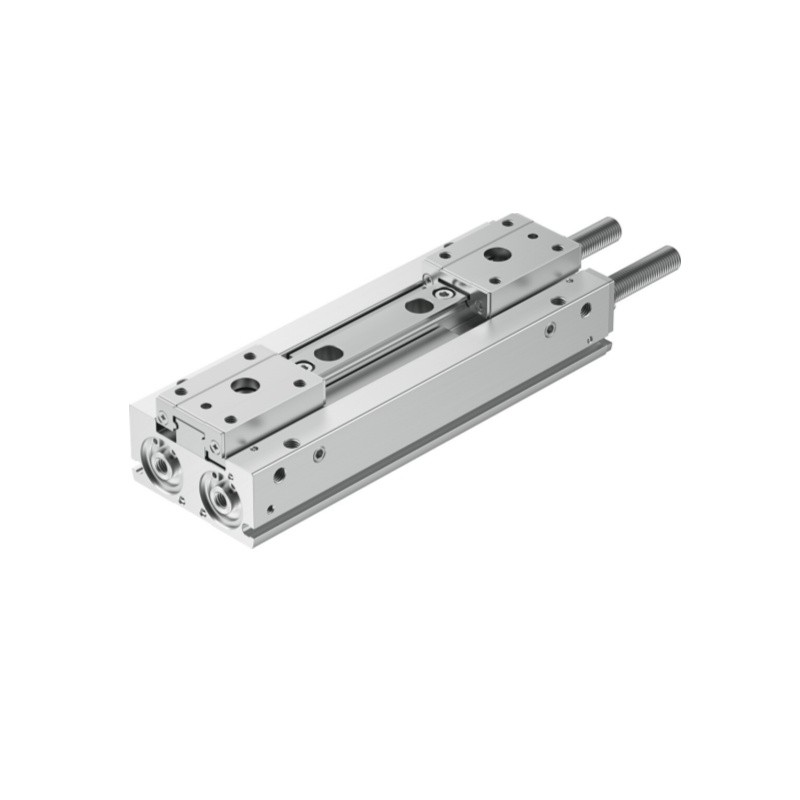

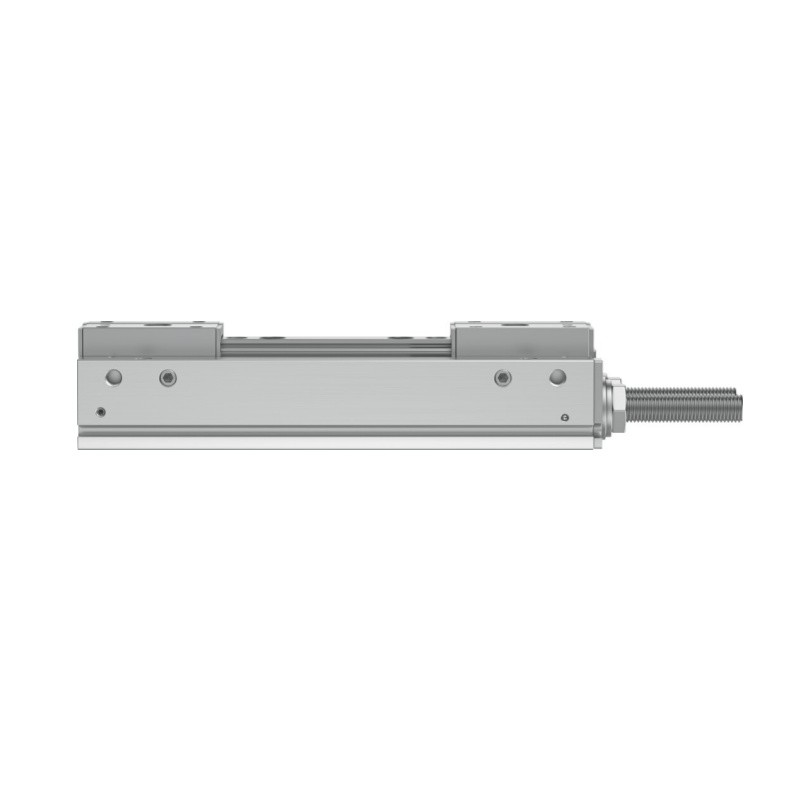

HPPF-16-64-A-S
Product Overview
FESTO HPPF-16-64-A-S belongs to HPPF flat parallel pneumatic gripper series. Double acting, total stroke 64mm, 32mm stroke per jaw, S variant supports adjustable stroke. Adopts rack-and-pinion transmission and maintenance-free precision ball guide, repeat accuracy ≤0.06mm. Low flat compact structure, low copper/zinc/nickel composition, suitable for battery and electronic industry. Equipped with elastic cushion plates on both ends, C-slot for proximity sensor installation, supports internal & external workpiece gripping, widely used for pick and place in automated assembly lines.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | HPPF-16-64-A-S |
| Order No. | 8143714 |
| Product Series | HPPF |
| Product Type | Pneumatic Parallel Gripper |
| Action Type | Double-acting |
| Size | 16 |
| Total Stroke | 64 mm |
| Stroke per Jaw | 32 mm |
| Gripper Jaw Quantity | 2 jaws |
| Guide Type | Precision ball guide, maintenance-free |
| Transmission | Rack and pinion |
| Variant | S: Adjustable stroke version |
| Position Detection | Via C-slot proximity sensor |
| Cushioning | Elastic cushion plates at both ends |
| Operating Pressure | 1 ~ 7 bar |
| Gripping Force(6bar) | 109.1 N |
| Repeat Accuracy | ≤0.06 mm |
| Ambient Temperature | -10 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Feature | Flat low-profile design, low Cu/Zn/Ni content, suitable for battery & electronics industry |
| Mounting | Any mounting position |
| Weight | 755 g |
| Certificate | RoHS, CE |
| Origin | Germany |
| Condition | New Original |
