SMT-10M-PS-24V-E-2,5-Q-OE
Product Overview

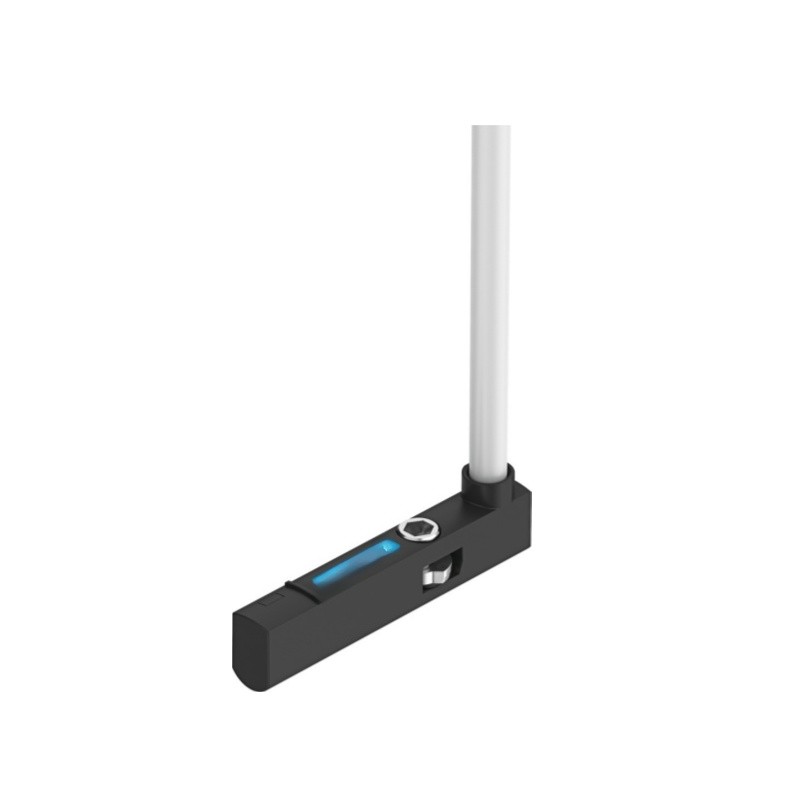

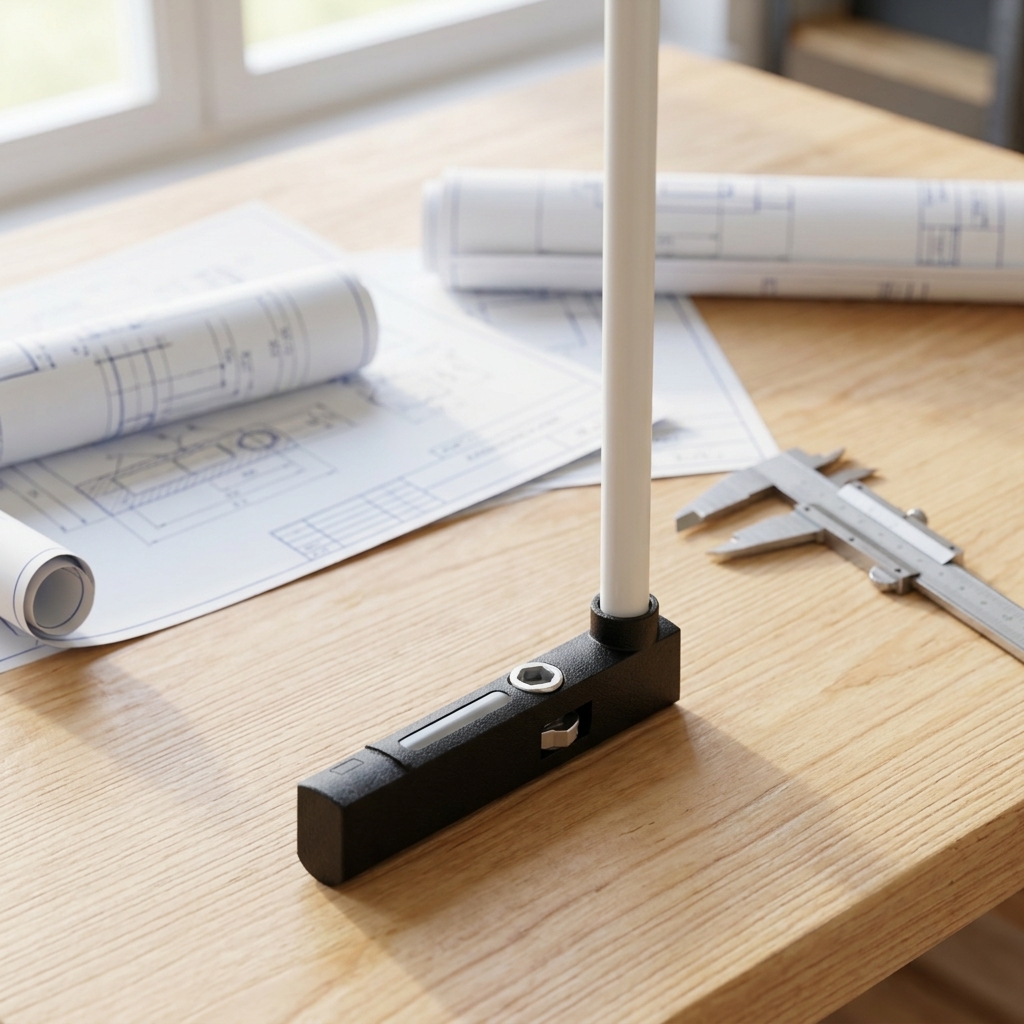

FESTO SMT-10M-PS-24V-E-2,5-Q-OE magneto-resistive proximity sensor belongs to SMT-10M series, designed for C-slot pneumatic cylinders. PNP 3-wire normally open output, rated DC24V, with 2.5m oil-resistant drag chain cable, lateral cable outlet and open cable end. It features reverse polarity, short-circuit and overload protection, repeat accuracy 0.2mm, max switching frequency 130Hz. Halogen-free design, suitable for robot and energy chain moving applications, widely used for cylinder piston position detection in pneumatic automation.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | SMT-10M-PS-24V-E-2,5-Q-OE |
| Order No. | 551374 |
| Product Series | SMT-10M |
| Product Type | Magneto-resistive Proximity Sensor / Cylinder Position Sensor |
| Mounting Type | C-slot, top insertion |
| Measuring Principle | Magneto-resistive |
| Output Type | PNP, 3-wire, Normally Open (N/O) |
| Rated Voltage | DC 24V |
| Operating Voltage Range | DC 5 ~ 30V |
| Max Output Current | 100 mA |
| Cable Spec | 2.5m drag chain cable, oil-resistant |
| Cable Outlet | Lateral (Q) |
| Cable End | Open end (OE) |
| Max Switching Frequency | 130 Hz |
| Repeat Accuracy | 0.2 mm |
| Ambient Temperature | -40 ~ +70 ℃ |
| Feature | Reverse polarity protection, short-circuit & overload protection, halogen-free |
| Weight | 16.8 g |
| Standard | EN 60947-5-2 |
| Certificate | CE, RoHS, RCM |
| Origin | Germany |
| Condition | New Original |
