ADN-40-15-A-P-A-S20

属性名称	属性值
Brand	FESTO
Model	ADN-40-15-A-P-A-S20
Base Order No.	536291
Product Series	ADN
Product Type	Compact Pneumatic Cylinder
Action Type	Double-acting
Piston Diameter	40 mm
Stroke	15 mm
Piston Rod Thread	M10×1.25 Male thread
Standard	ISO 21287
Pneumatic Port	G1/8
Cushioning	Elastic cushion rings at both ends
Variant	S20 High temperature version
Operating Pressure	0.6 ~ 10 bar
Ambient Temperature	-20 ~ +150 ℃
Medium	Compressed air ISO 8573-1:2010 [7:4:4]
Barrel Material	Anodiz

INQUIRY

Product Details

Product Tags

Product Overview

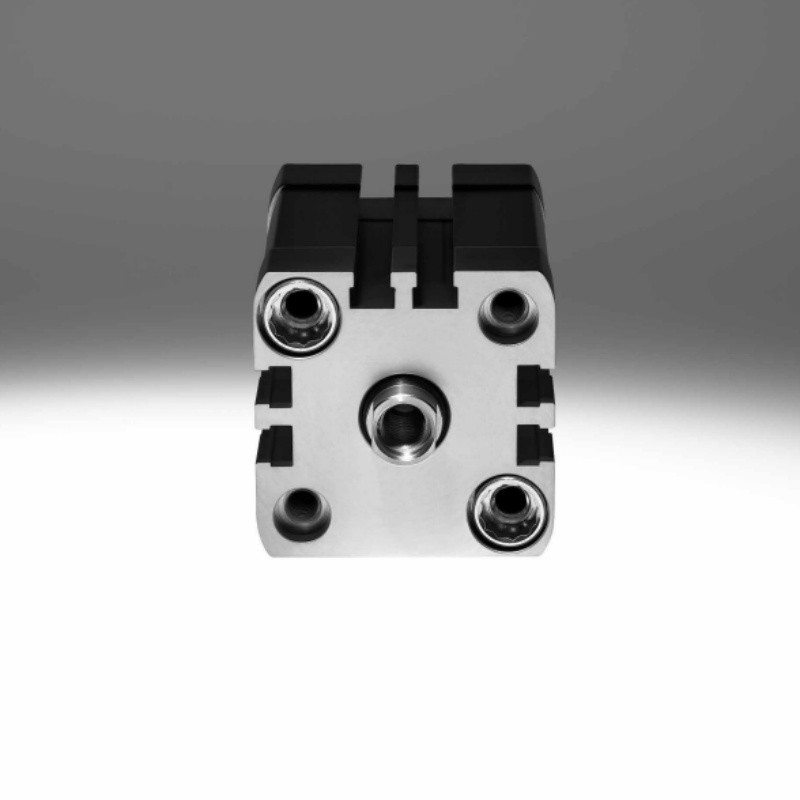

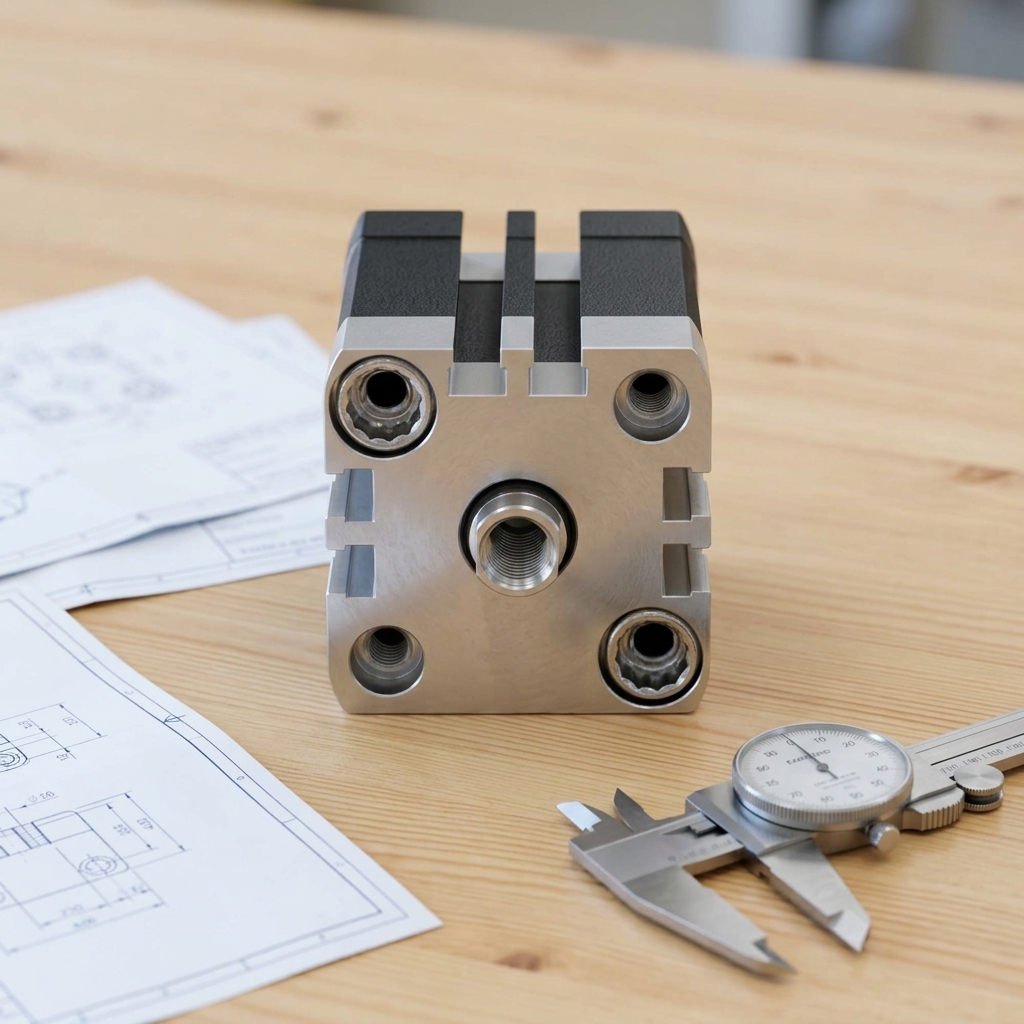

FESTO ADN-40-15-A-P-A-S20 belongs to ADN compact cylinder series, conforming to ISO21287 standard. Double acting design, bore 40mm, stroke 15mm, piston rod M10×1.25 male thread. S20 high temperature variant can withstand ambient temperature up to 150℃. Equipped with built-in piston magnet for proximity switch position feedback, elastic cushion rings on both ends to reduce impact. Anodized aluminium barrel, compact structure, can be installed at any orientation, suitable for high-temperature working environment in automation equipment.

属性名称	属性值
Brand	FESTO
Model	ADN-40-15-A-P-A-S20
Base Order No.	536291
Product Series	ADN
Product Type	Compact Pneumatic Cylinder
Action Type	Double-acting
Piston Diameter	40 mm
Stroke	15 mm
Piston Rod Thread	M10×1.25 Male thread
Standard	ISO 21287
Pneumatic Port	G1/8
Cushioning	Elastic cushion rings at both ends
Variant	S20 High temperature version
Operating Pressure	0.6 ~ 10 bar
Ambient Temperature	-20 ~ +150 ℃
Medium	Compressed air ISO 8573-1:2010 [7:4:4]
Barrel Material	Anodized aluminium alloy
Piston Rod Material	High alloy steel
Seal Material	High temperature resistant seal
Feature	Built-in magnet for proximity sensor, high temp S20 version
Mounting	Any mounting position
Corrosion Resistance Class	CRC 2
Certificate	RoHS, CE
Origin	Germany
Condition	New Original
