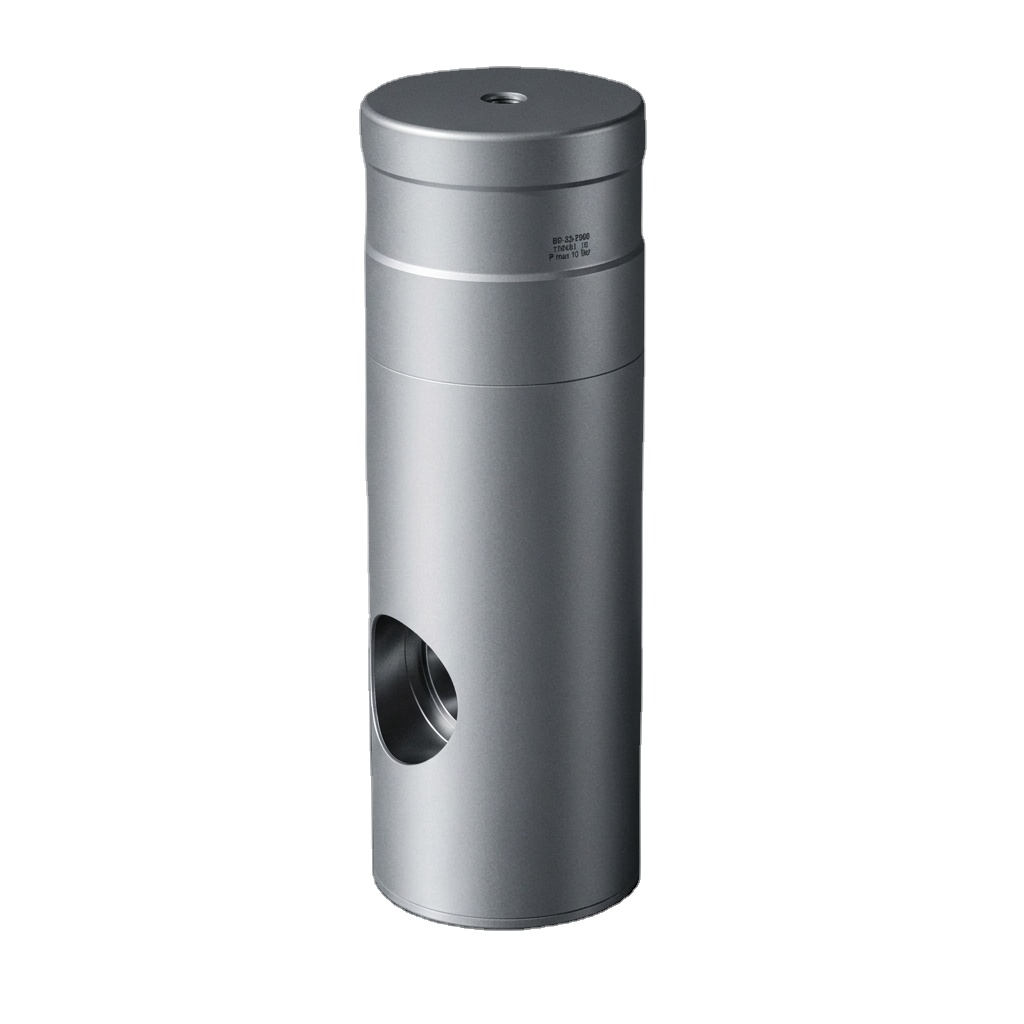

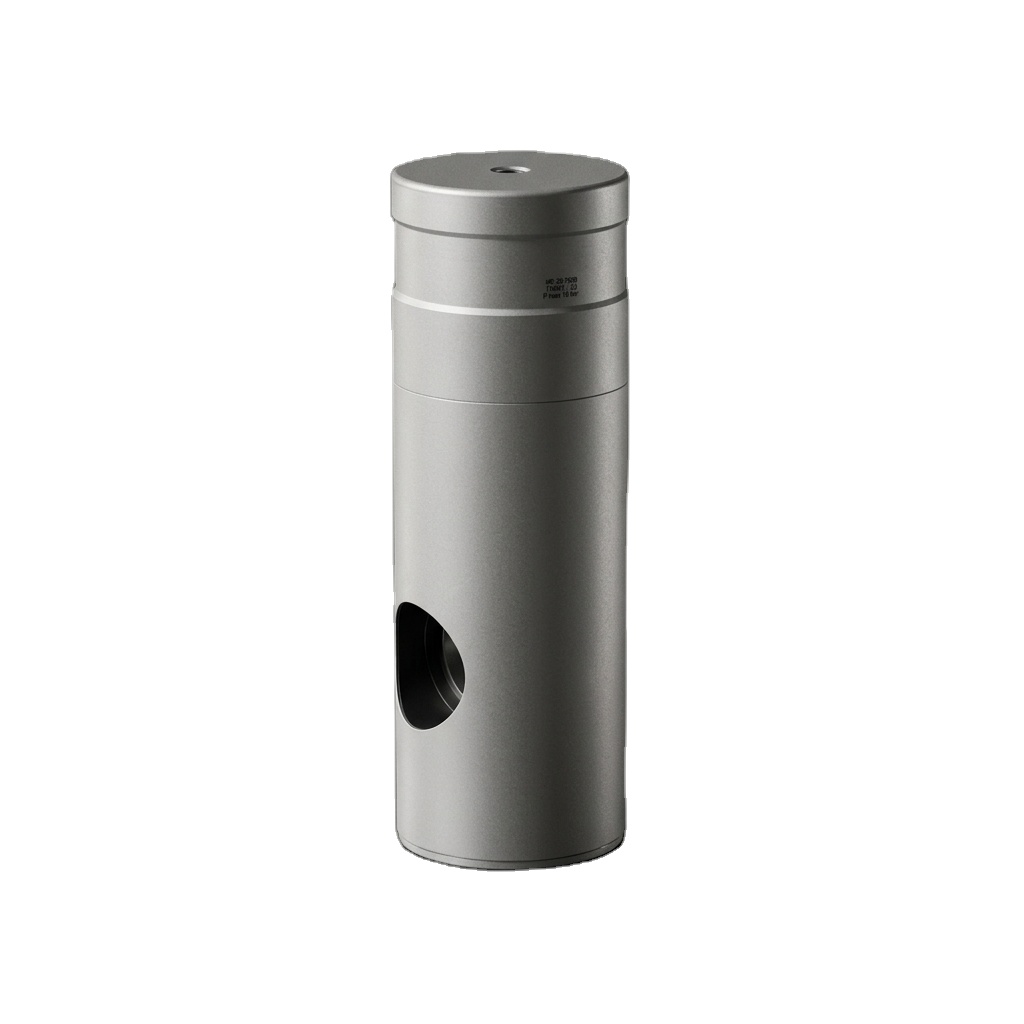

KP-20-2000
Product Overview
KP-20-2000 (Part No.178459) is Festo KP series clamping cartridge, designed for locking and braking of 20mm round shaft. It adopts tilting wedge mechanism, clamping by spring force and released by compressed air. It can be installed at any position, reliably holds round shaft under static load, widely used for linear motion locking in pneumatic automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | KP-20-2000 |
| Part No. | 178459 |
| Product Type | Clamping Cartridge |
| Series | KP |
| Clamping Shaft Diameter | 20 mm |
| Static Holding Force | 2000 N |
| Operating Pressure | 3 ~ 10 bar (0.3~1.0 MPa) |
| Minimum Release Pressure | ≥3 bar |
| Working Principle | Spring clamping, compressed air release |
| Structure | Tilting wedge mechanism |
| Variant | Piston rod at one end |
| Mounting Position | Any position |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -10 ~ +80 ℃ |
| Housing Material | Anodised aluminium |
| Clamp Jaw Material | Brass |
| Spring Material | Spring steel |
| Piston Material | POM |
| Seal Material | NBR, TPE-U(PU) |
| CRC Corrosion Class | CRC2 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Net Weight | 0.17 kg |
| Gross Weight | 0.22 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Clamping & braking for round shaft, linear guide, pneumatic automation |
