VMPA2-M1H-J-PI
Product Overview

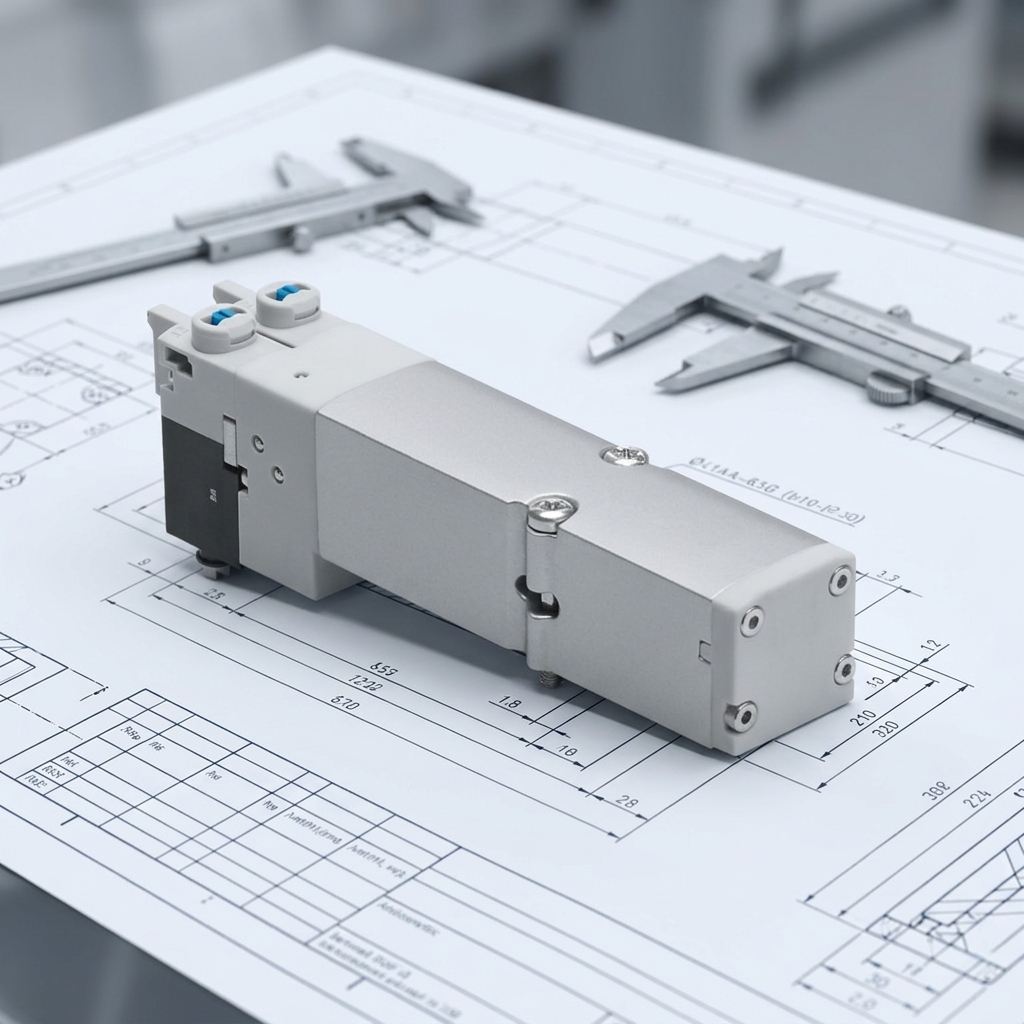

VMPA2-M1H-J-PI (Part No.537953) is Festo VMPA2 series 20mm valve slice for VMPA2 valve island. It is a 5/2-way bistable double solenoid pneumatic solenoid valve with 24V DC power supply. Designed for modular valve terminal assembly, this pneumatic valve features compact size, fast switching speed and reversible flow direction, it also supports vacuum application, widely used for industrial automation pneumatic control systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VMPA2-M1H-J-PI |
| Part No. | 537953 |
| Product Type | Solenoid Valve / Valve Island Valve Slice |
| Series | VMPA2 |
| Valve Function | 5/2-way, bistable (double solenoid) |
| Valve Width | 20 mm |
| Rated Flow | 670 l/min (QS-8) / 860 l/min (QS-10) |
| Operating Voltage | 24V DC |
| Voltage Tolerance | ±25% |
| Operating Pressure | -0.9 ~ 10 bar (-0.09~1.0 MPa) |
| Pilot Pressure | 3 ~ 8 bar (0.3~0.8 MPa) |
| Structure | Piston gate valve |
| Sealing Type | Soft seal |
| Protection Class | IP65 |
| Manual Override | Detenting & Non-detenting |
| Switching Time ON | 9 ms |
| Changeover Time | 22 ms |
| Vacuum Suitable | Yes |
| Flow Direction | Reversible |
| Signal Indicator | Yes |
| Mounting | Through-hole, mounting position optional |
| Tightening Torque | 0.65 Nm |
| Ambient Temperature | -5 ~ +50 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Housing Material | Die-cast aluminium |
| Seal Material | NBR |
| Net Weight | 0.10 kg |
| Gross Weight | 0.14 kg |
| RoHS | Compliant |
| Certification | cULus Recognized |
| Condition | New Original |
| Application | Pneumatic Automation, Valve Island Assembly |
