QSL-G1/4-6
Product Overview

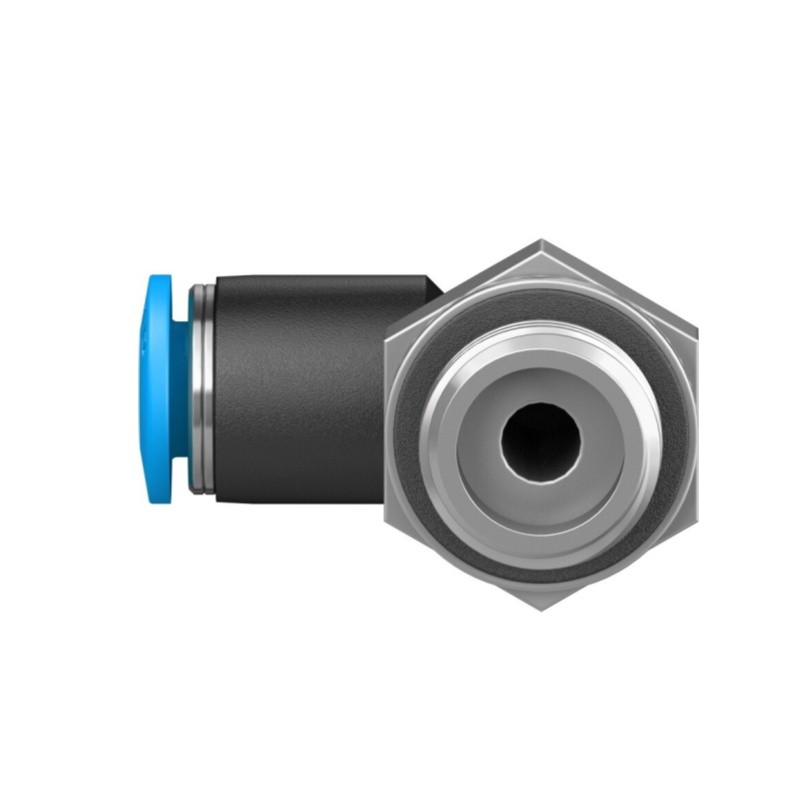

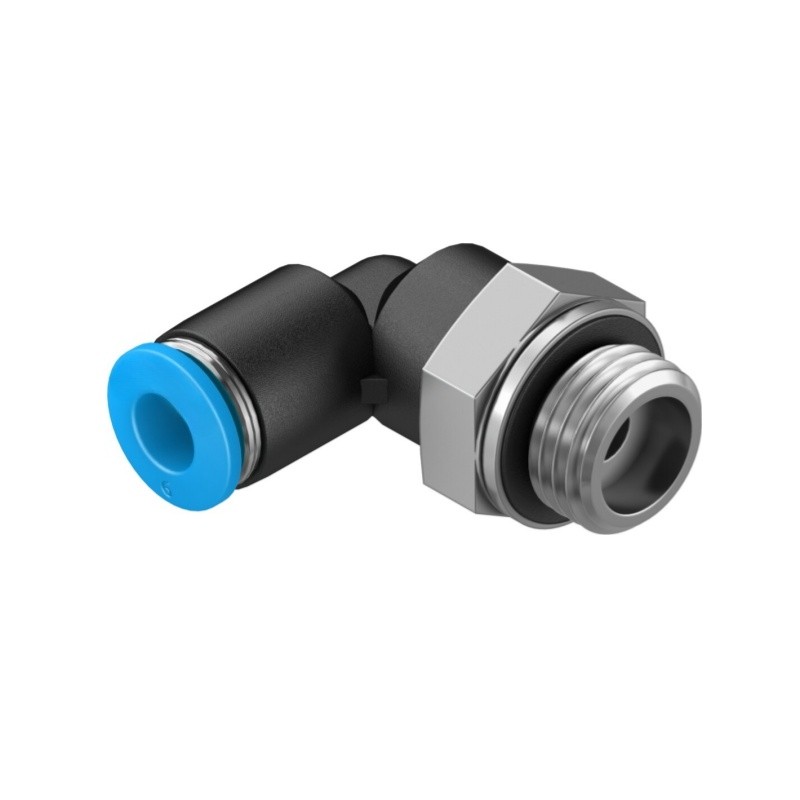

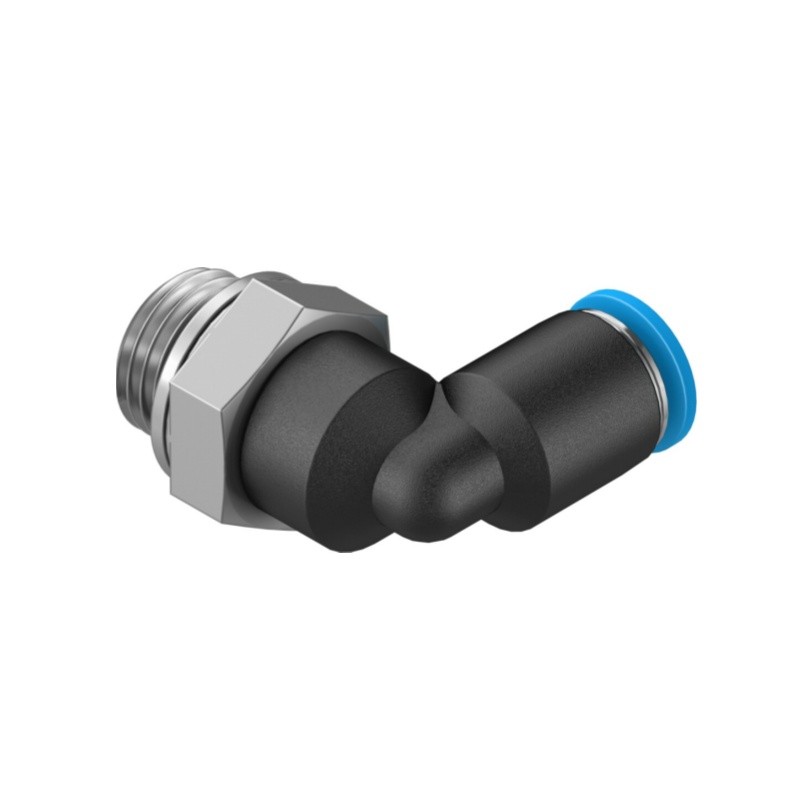

QSL-G1/4-6 (Part No.186118) is Festo QS series L-shape push-in pneumatic fitting. It adopts push-pull quick connection principle, one end is G1/4 male thread, the other end is for 6mm outer diameter pneumatic tubing. Easy to assemble and disassemble, widely used for compressed air pipeline connection in pneumatic automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSL-G1/4-6 |
| Part No. | 186118 |
| Product Type | Pneumatic Push-in Fitting / L-fitting |
| Series | QS |
| Port 1 | Male thread G1/4 |
| Port 2 | For tubing OD 6 mm |
| Nominal Width | 4.3 mm |
| Operating Pressure | -0.95 ~ 14 bar |
| Nominal Tightening Torque | 9 Nm (±20%) |
| Design | L-shape, push-pull principle |
| Mounting Position | Optional |
| Release Ring Color | Blue |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:-:-], ice-free water |
| Ambient Temperature | -10 ~ +80 ℃ |
| Housing Material | PBT |
| Screw Plug | Nickel-plated brass |
| Release Ring Material | POM |
| Tubing Seal Material | NBR |
| Clamping Element | High-alloy stainless steel |
| CRC Corrosion Class | CRC1 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Net Weight | 0.02 kg |
| Gross Weight | 0.03 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Pneumatic tubing connection, automation pneumatic circuit |
