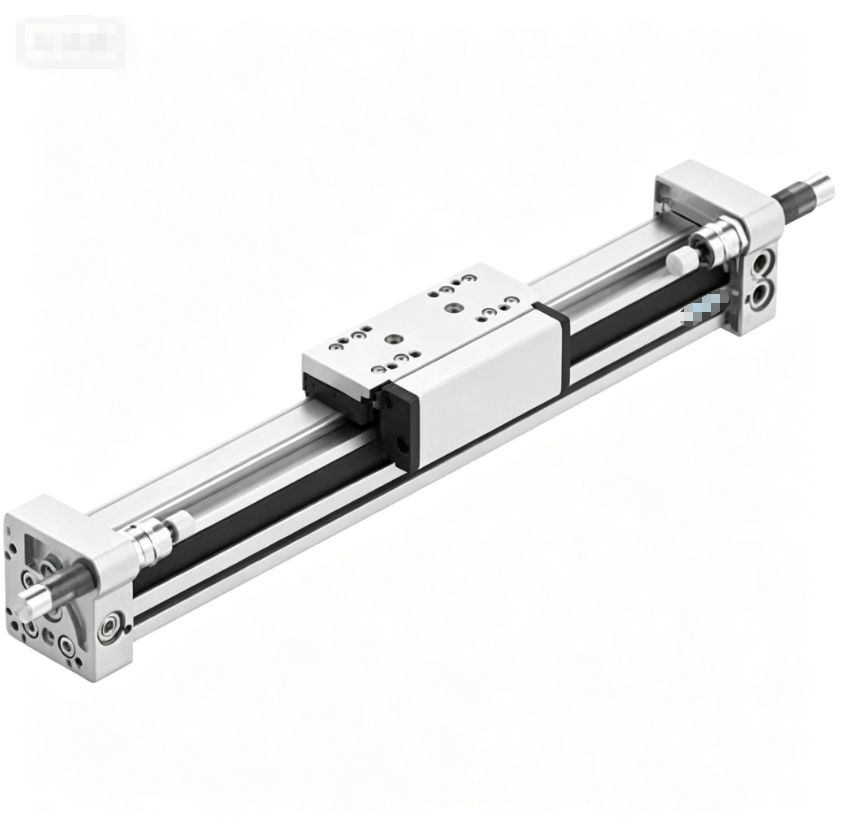

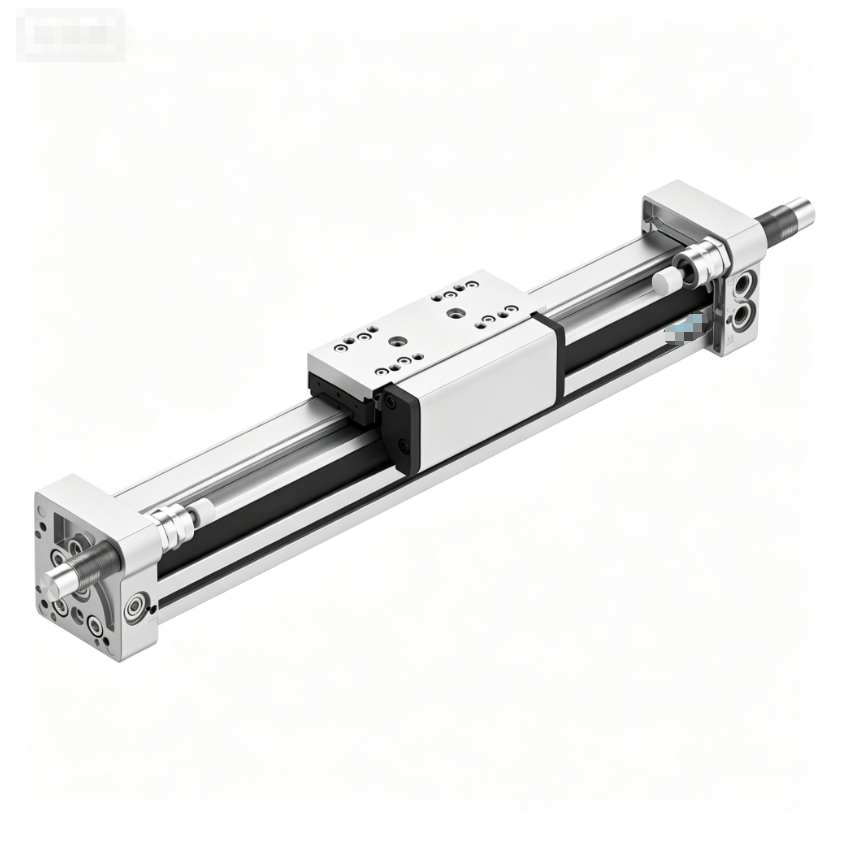

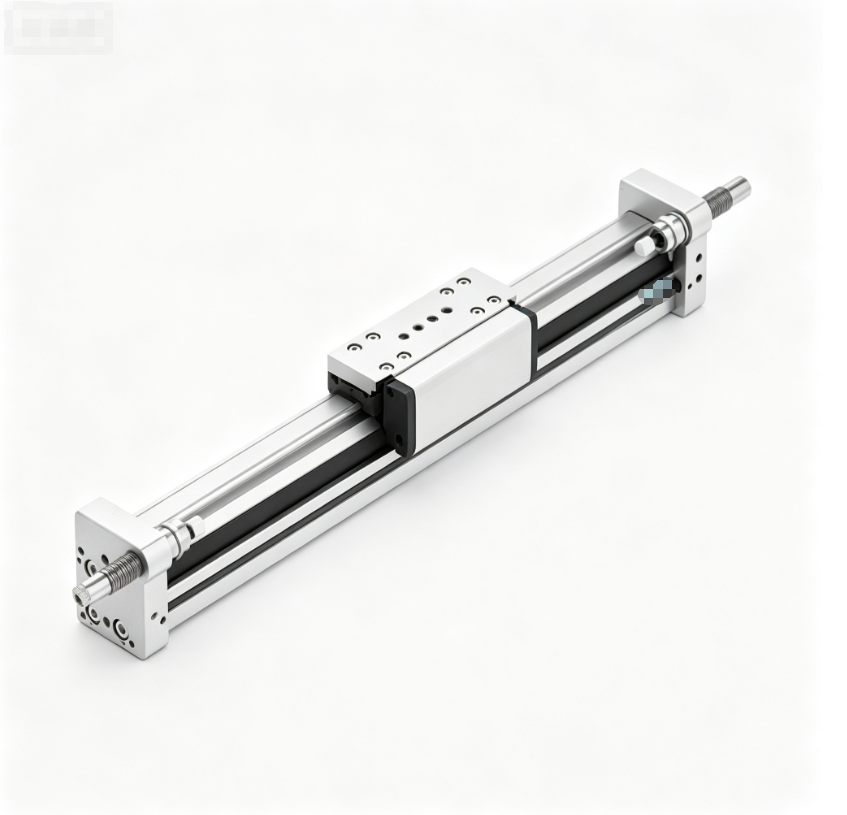

532447 DGC-25-445-KF-PPV-A
Product Overview
Item No: 532447 Model: DGC-25-445-KF-PPV-A Brand: Festo Type: Rodless Pneumatic Linear Drive
Festo DGC-25-445-KF-PPV-A linear drive (532447) is a double acting rodless pneumatic actuator of DGC series. KF stands for recirculating ball bearing guide to ensure high rigidity and precise linear movement. PPV adjustable pneumatic cushion reduces impact at stroke ends. Version A has integrated slot for proximity switches for position feedback. The rodless design saves installation space compared with traditional cylinders.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | DGC-25-445-KF-PPV-A |
| Part No. | 532447 |
| Type | Rodless Pneumatic Linear Drive |
| Series | DGC |
| Bore | 25 mm |
| Stroke | 445 mm |
| Action | Double acting |
| Guide Type | KF: Recirculating ball bearing guide |
| Cushion | PPV, adjustable pneumatic cushion at both ends |
| Feature | A: Proximity switch mounting groove |
| Port Size | G1/4 |
| Working Pressure | 0.2 ~ 0.8 MPa (2 ~ 8 bar) |
| Theoretical force @6bar | 295 N |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Ambient Temperature | -10 ~ +60 ℃ |
| Material | Aluminum alloy profile, stainless steel sealing band, PUR seals |
| Max Speed | 2 m/s |
| Mounting | Any mounting position |
| Condition | New Original |
