WTB2S-2P3151 (1067502)
Product Overview

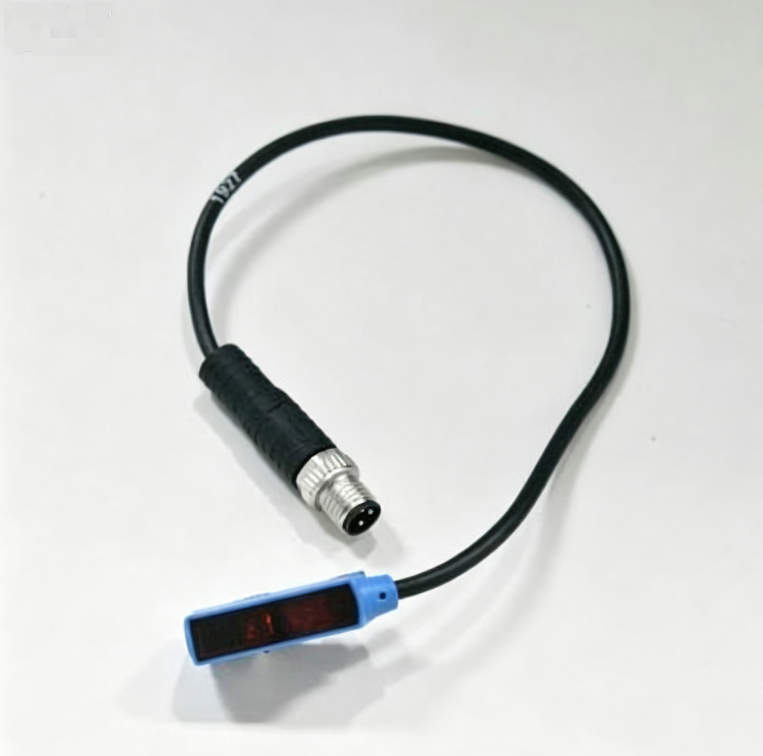

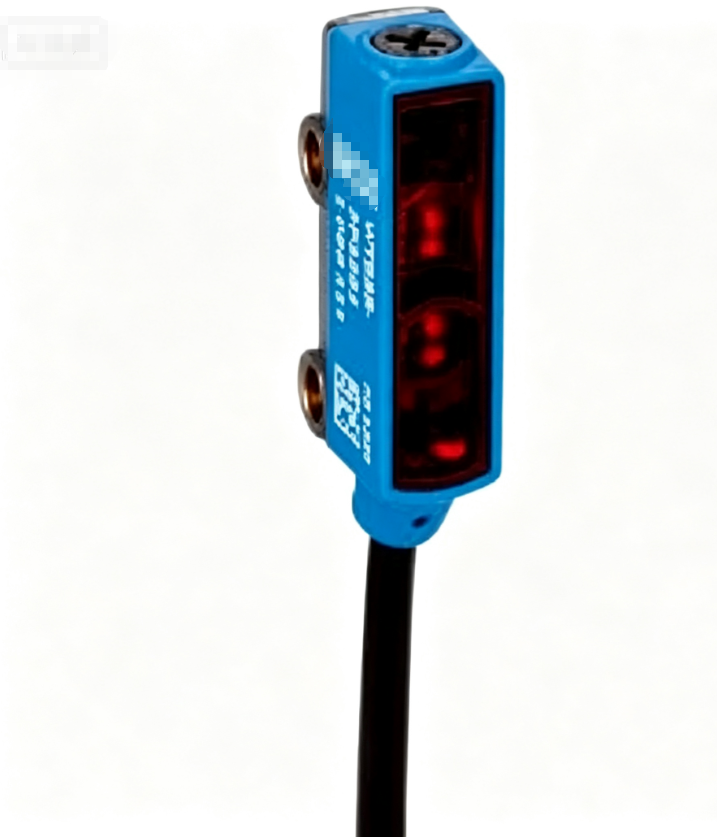

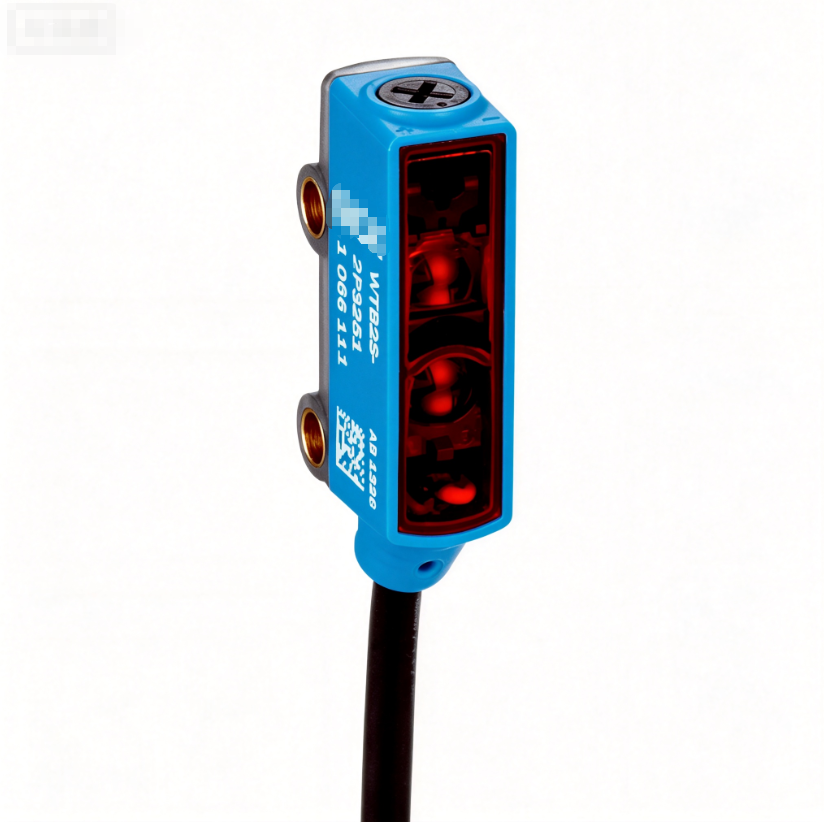

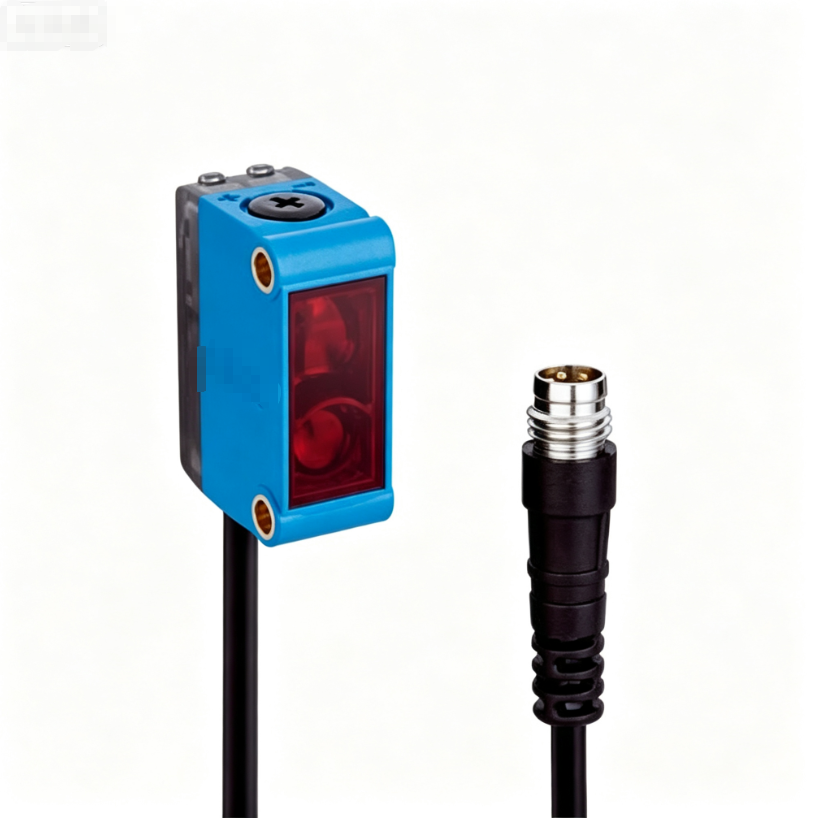

WTB2S-2P3151 (Part No.1067502) is an ultra-compact miniature square diffuse photoelectric sensor with background suppression from SICK WTB2S series. It uses PinPoint 640nm visible red LED light source, sensing distance ranges from 1 mm to 150 mm. It comes with a 3-turn potentiometer for sensitivity adjustment, and provides PNP output with Light-ON mode. It is fitted with M8 3-pin male connector and 200mm short cable. Made of miniature square plastic housing with dimension 7.7×27.5×13.5 mm, IP67 protection class and built-in visible LED working indicator. Thanks to background suppression technology, it can detect tiny objects stably and eliminate false detection caused by background interference. Brand new original SICK photoelectric sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | WTB2S-2P3151 |
| Part No. | 1067502 |
| Product Type | Photoelectric Sensor |
| Series | W2 / WTB2S |
| Detection principle | Diffuse photoelectric sensor with background suppression |
| Light Source | PinPoint red LED, 640nm visible red light |
| Sensing Distance | 1 ~ 150 mm |
| Adjustment | 3-turn potentiometer for sensitivity setting |
| Output | PNP, Light-ON mode |
| Supply Voltage | DC10 ~ 30 V |
| Connector | M8 3-pin male connector, 200mm short cable |
| Housing | Miniature square plastic housing, size 7.7×27.5×13.5mm |
| Protection Class | IP67 |
| Special Feature | Ultra compact miniature design, PinPoint precise light spot, background suppression, visible LED indicator, for small object detection |
| Condition | New Original |
| Application | Small object detection, packaging machinery, conveyor systems, automated production lines |
| Net Weight | 0.018 KG |
| Gross Weight | 0.042 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
