KTM-WP11182P
Product Overview

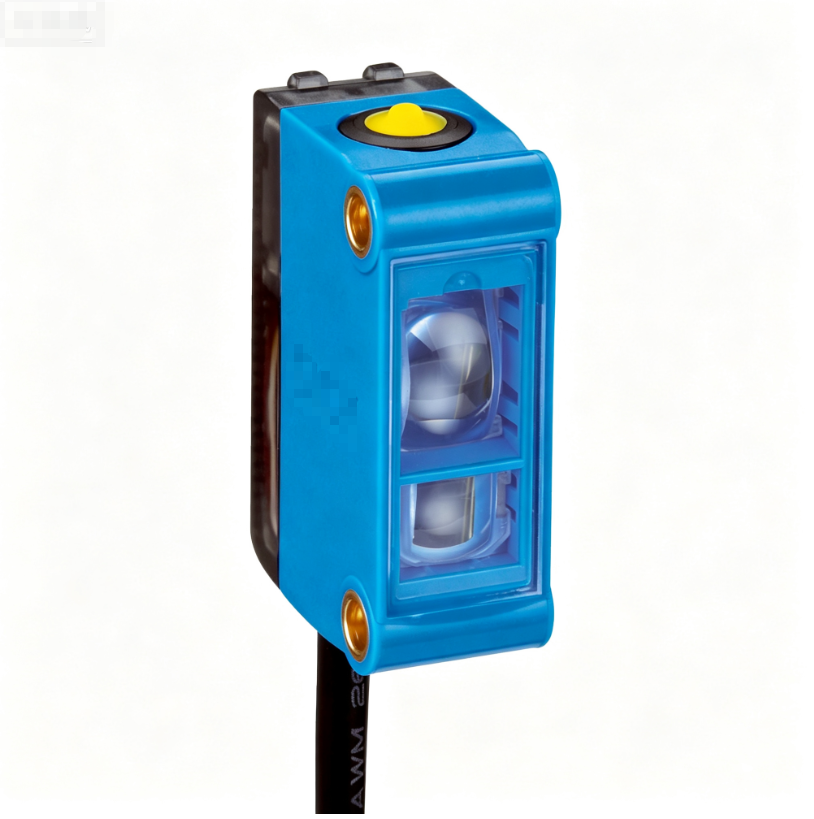

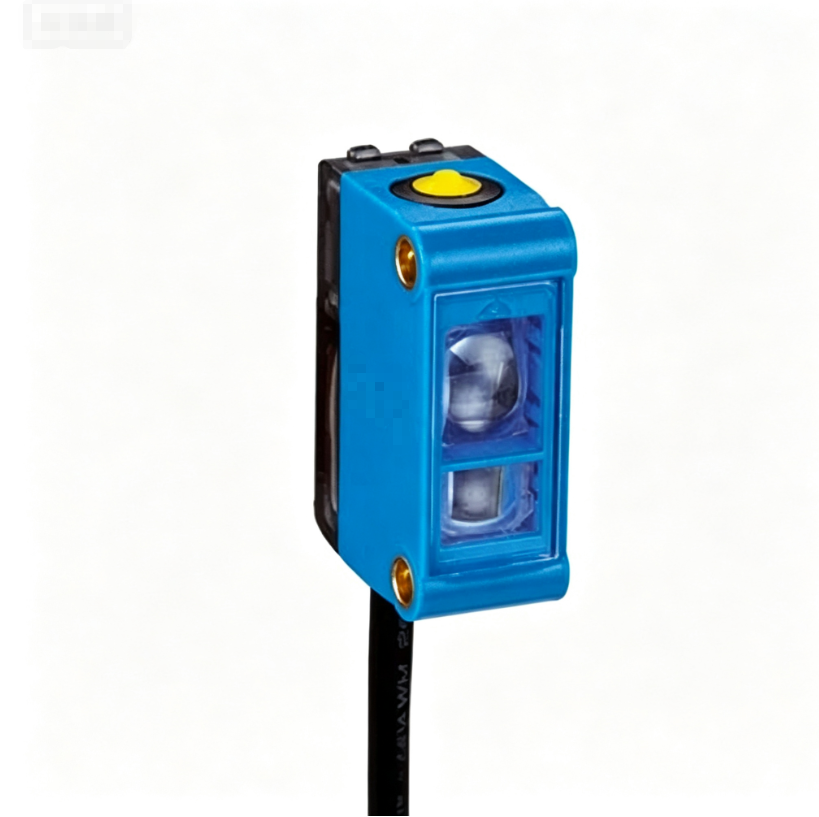

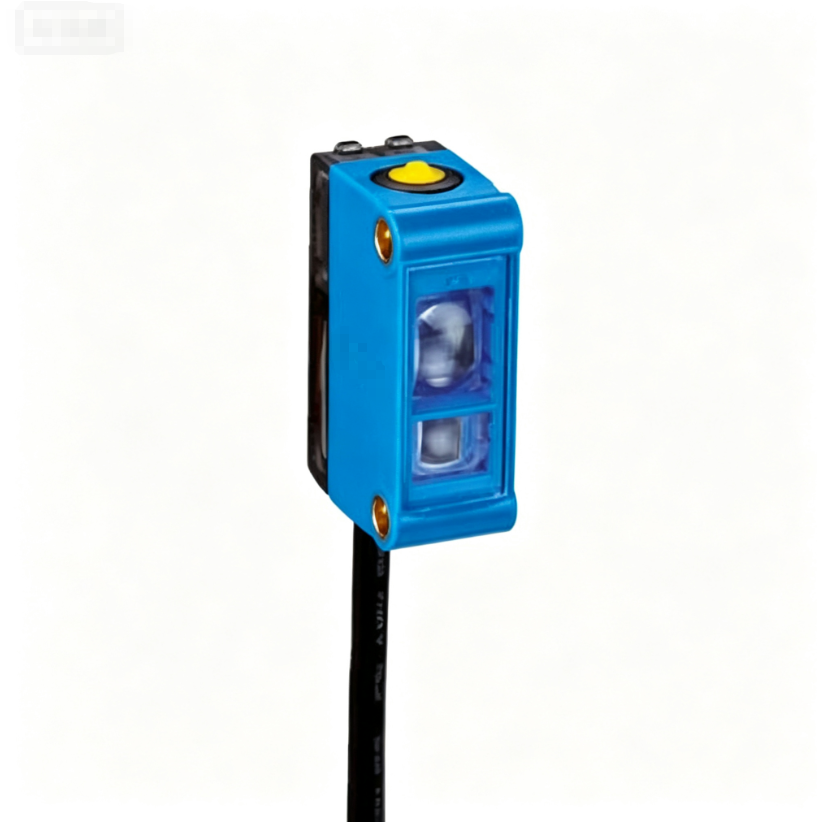

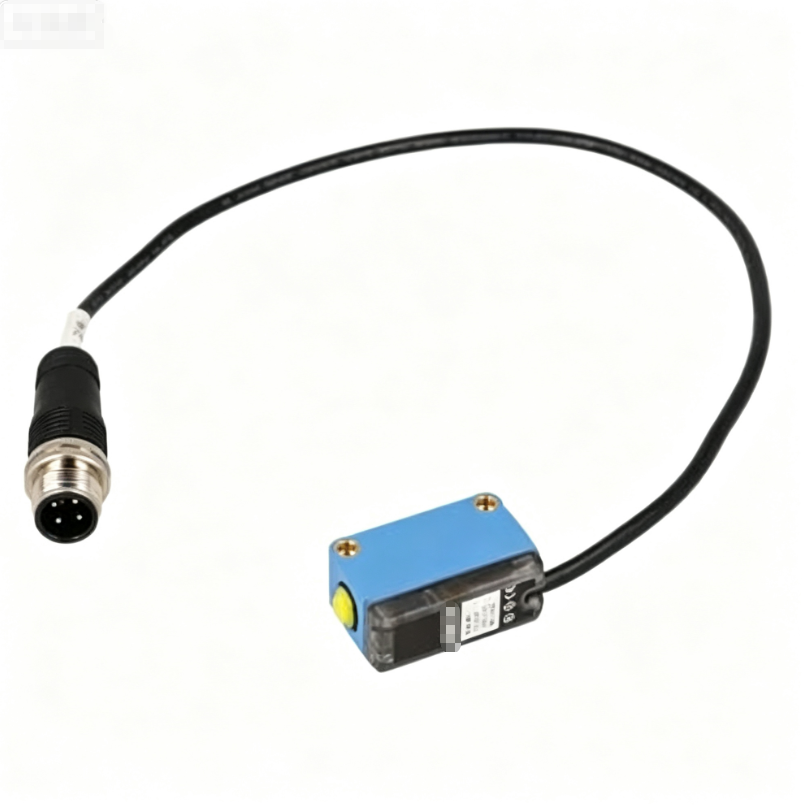

KTM-WP11182P (Part No.1062201) is a compact rectangular contrast sensor from SICK KTM series. It is equipped with RGB multi-color LED light source, sensing distance is 12.5 mm ±3 mm. It supports Teach-in function for parameter learning and provides PNP output with switchable Light-ON / Dark-ON mode. It comes with M12 4-pin male connector, rectangular plastic housing, IP67 protection class and built-in visible LED working indicator. With high switching frequency of 15000 Hz, it achieves stable and accurate mark detection, ideal for registration mark tracking on packaging films. Brand new original SICK contrast sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | KTM-WP11182P |
| Part No. | 1062201 |
| Product Type | Contrast Sensor |
| Series | KTM Prime / KTM |
| Detection principle | Contrast sensor, RGB multi-color LED |
| Light Source | RGB LED |
| Sensing Distance | 12.5 mm ±3 mm |
| Adjustment | Teach-in setting |
| Output | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | DC10 ~ 30 V |
| Connector | M12 4-pin male connector |
| Housing | Rectangular plastic housing |
| Protection Class | IP67 |
| Switching Frequency | 15000 Hz |
| Special Feature | RGB multi-color LED, teach-in function, stable for printing mark detection, compact rectangular design, visible LED indicator |
| Condition | New Original |
| Application | Mark detection, packaging machinery, printing line, packaging film registration, material handling |
| Net Weight | 0.028 KG |
| Gross Weight | 0.052 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
