QSS-6
Product Overview

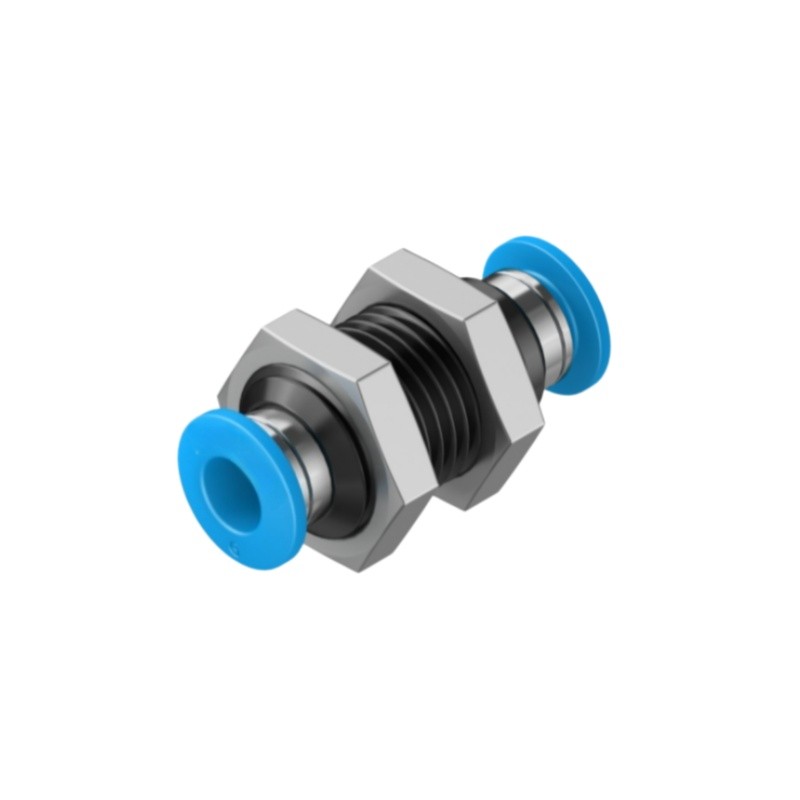

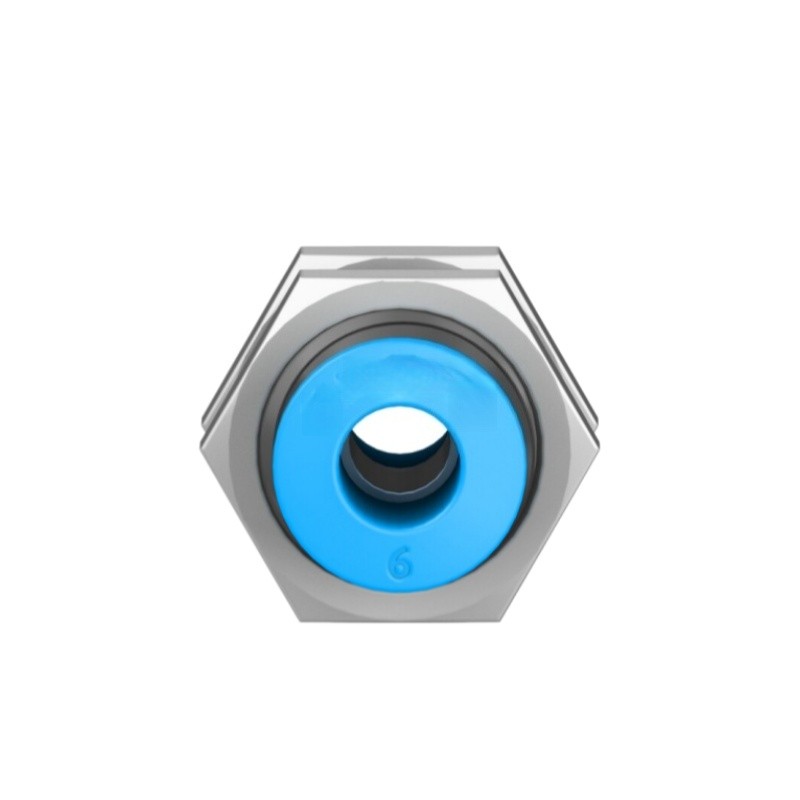

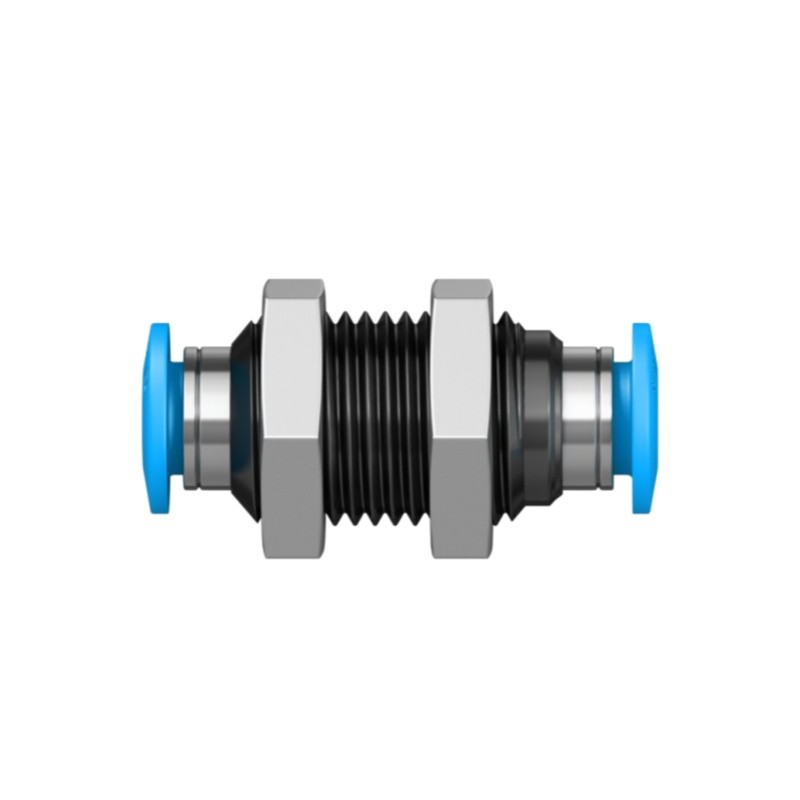

QSS-6 (Part No.153158) is Festo QSS series bulkhead push-in pneumatic fitting. It adopts push-pull quick connection principle, both sides connect tubing OD 6mm, designed for panel/cabinet bulkhead installation. It supports ISO Class4 cleanroom environment. Easy to assemble and disassemble, widely used for compressed air pipeline through panel in pneumatic automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSS-6 |
| Part No. | 153158 |
| Product Type | Pneumatic Push-in Fitting / Bulkhead fitting |
| Series | QSS |
| Port 1 | For tubing OD 6 mm |
| Port 2 | For tubing OD 6 mm |
| Nominal Width | 5.0 mm |
| Operating Pressure | -0.95 ~ 14 bar |
| Design | Bulkhead type, push-pull principle |
| Mounting Position | Optional |
| Release Ring Color | Blue |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:-:-], ice-free water |
| Ambient Temperature | -10 ~ +80 ℃ |
| Housing Material | PBT, nickel-plated brass |
| Release Ring Material | POM |
| Tubing Seal Material | NBR |
| Clamping Element | High-alloy stainless steel |
| CRC Corrosion Class | CRC1 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Cleanroom Class | ISO 14644-1 Class 4 |
| Net Weight | 0.022 kg |
| Gross Weight | 0.03 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Pneumatic tubing bulkhead connection, cabinet panel installation, automation pneumatic circuit, cleanroom equipment |
