CLR-50-50-R-P-A
Product Overview

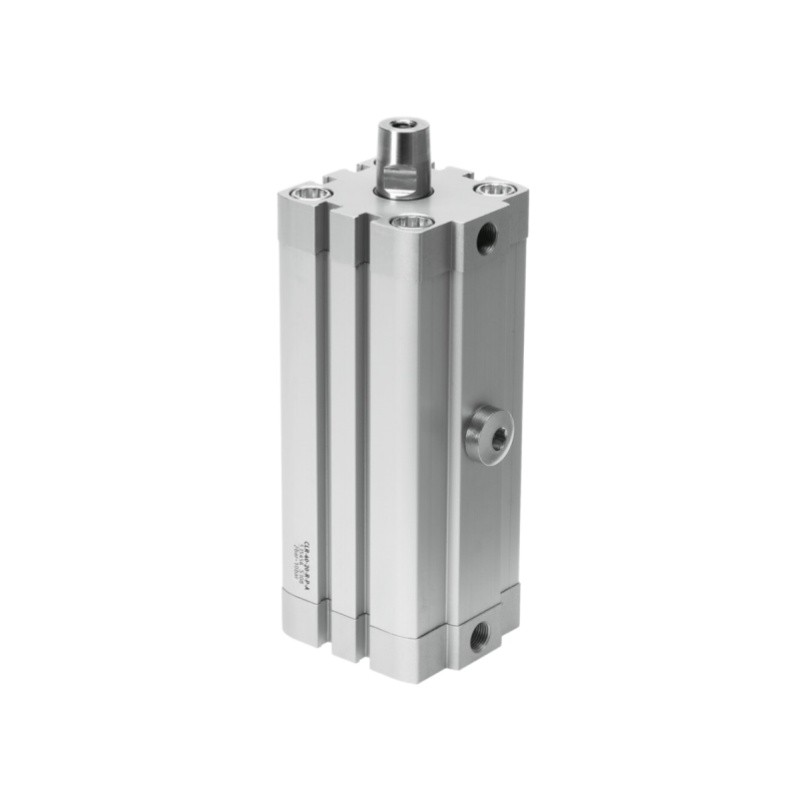

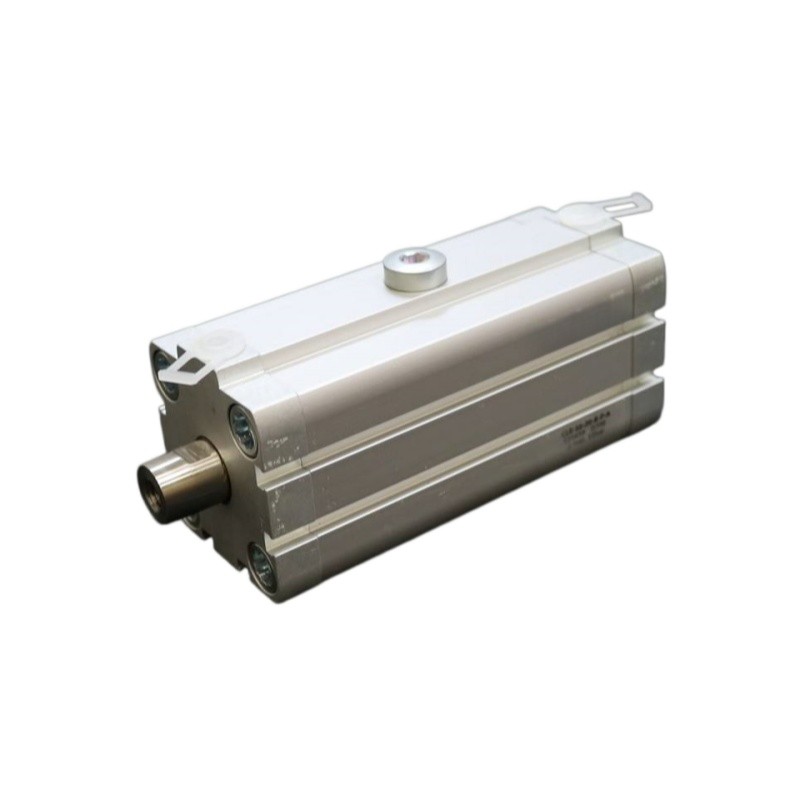

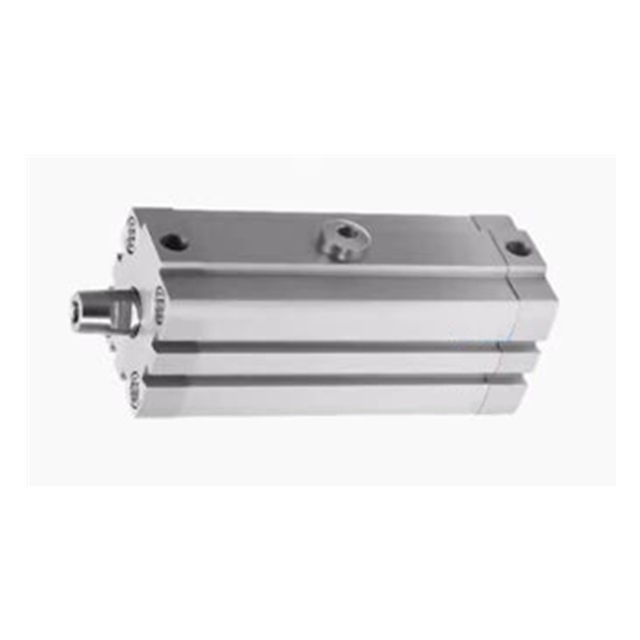

CLR-50-50-R-P-A (Part No.535462) is Festo CLR series linear swivel clamp cylinder. It combines linear pushing and 90° right rotary movement, double acting design. The piston rod rotates 90° right first and then moves forward for clamping workpiece. With elastic cushioning on both ends, stable clamping force, widely used for workpiece fixture in automation assembly, handling and testing equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | CLR-50-50-R-P-A |
| Part No. | 535462 |
| Product Type | Pneumatic Linear Swivel Clamp Cylinder |
| Series | CLR |
| Bore | 50 mm |
| Clamping Stroke | 50 mm |
| Total Stroke | 71 mm |
| Swivel Direction | Right |
| Swivel Angle | 90° ±2° |
| Piston Rod Thread | M10 |
| Pneumatic Connection | G1/8 |
| Operating Pressure | 2 ~ 10 bar |
| Mode of Operation | Double-acting |
| Cushioning | Elastic cushioning rings at both ends |
| Mounting Position | Optional / Any position |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -10 ~ +80 ℃ |
| Theoretical Clamping Force @6bar | 990 N |
| Effective Clamping Force @6bar | 716 N |
| Material Cylinder Barrel | Wrought aluminium alloy, smooth anodised |
| Material Piston Rod | High-alloy stainless steel, coated |
| Seal Material | NBR, TPE-U(PU) |
| CRC Corrosion Class | CRC2 |
| LABS Compliance | VDMA24364-B2-L |
| Net Weight | 2.115 kg |
| Gross Weight | 2.30 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Workpiece clamping, automation fixture, handling, assembly machinery |
