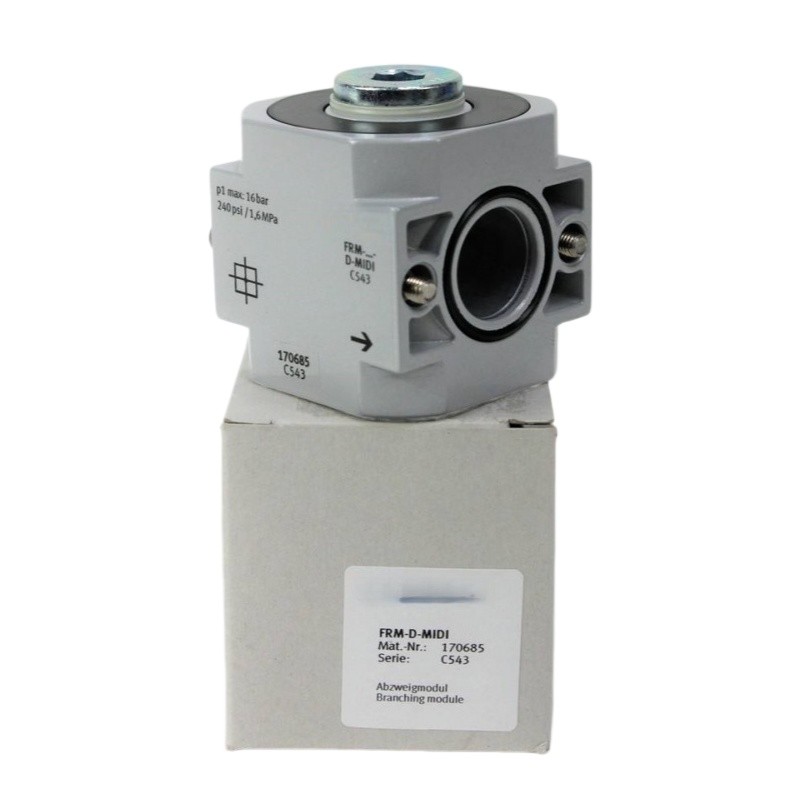

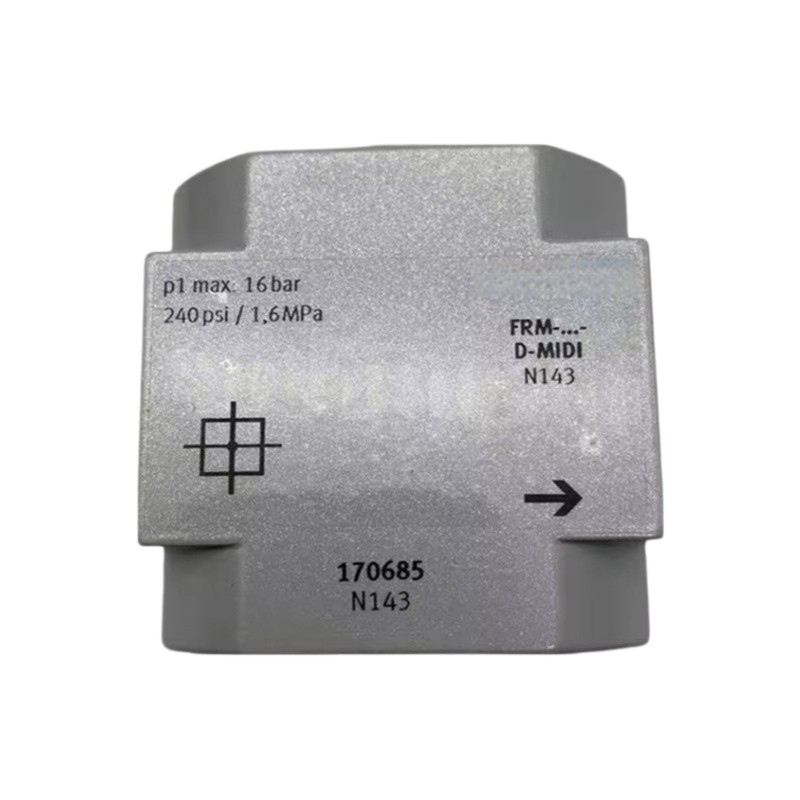

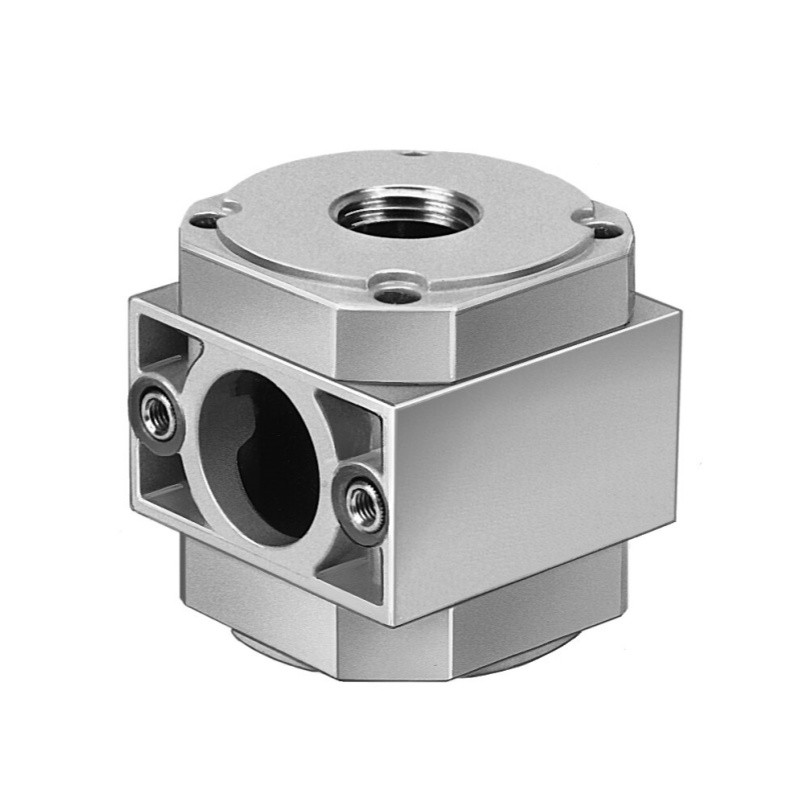

FRM-D-MIDI
Product Overview
Item No: 170685 Model: FRM-D-MIDI Brand: Festo Type: Pneumatic Branching Module, FRM Series
Festo FRM-D-MIDI branching module, part number 170685, is a MIDI size air distribution accessory for Festo D series service units. This manifold block adopts G1/2 main port and G1/4 branch port design, supporting high flow up to 8200 l/min. The die-cast aluminium housing offers good mechanical strength and CRC2 corrosion resistance. It can be installed at any position, working medium includes filtered compressed air and inert gas, operating pressure from 0 to 16 bar. The module is used to branch the main air source into multiple circuits, realizing centralized air supply for multiple pneumatic components. It is widely assembled with filter regulator service units in automation equipment to build stable compressed air distribution system.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | FRM-D-MIDI |
| Part No. | 170685 |
| Product Series | FRM |
| Product Type | Branching Module |
| Product Function | Air branching distributor module for D series MIDI service unit |
| Pneumatic Connection | Main port G1/2, branch port G1/4, M5 mounting port |
| Operating Pressure | 0 ~ 16 bar |
| Nominal Flow Rate (1→2) | 8200 l/min |
| Operating Medium | Filtered compressed air ISO 8573-1 [7:-:-], inert gas |
| Ambient & Medium Temp | -10 ℃ ~ +60 ℃ |
| Housing Material | Die-cast aluminium |
| Corrosion Resistance Class | CRC 2 |
| Mounting | Any mounting position |
| Net Weight | 382 g/pc |
| RoHS Compliance | Yes |
| Feature | MIDI size air branching module, for D series service unit assembly, high flow air distribution |
| Application | Pneumatic air circuit branching, air supply distribution for filter regulator service unit, automation air manifold |
