PL20A 1012719

Attribute Name	Value
Brand	SICK
Model	PL20A
Part No.	1012719
Series	PL Series Reflector
Type	Retro-reflective Reflector
Shape	Rectangular, 2-hole screw mounting
Dimension	18mm × 60mm
Material	PMMA/ABS
Operating Temp	-30℃ ~ +65℃
Reflection Principle	Corner cube retroreflection
Compatible Sensor	SICK W4, W12, W140 series retro-reflective photoelectric sensors
Net Weight	0.02kg
Gross Weight	0.08kg
Origin	Germany
Warranty	1 year
Condition	New Original
Application	Matching reflector

INQUIRY

Product Details

Product Tags

Product Overview

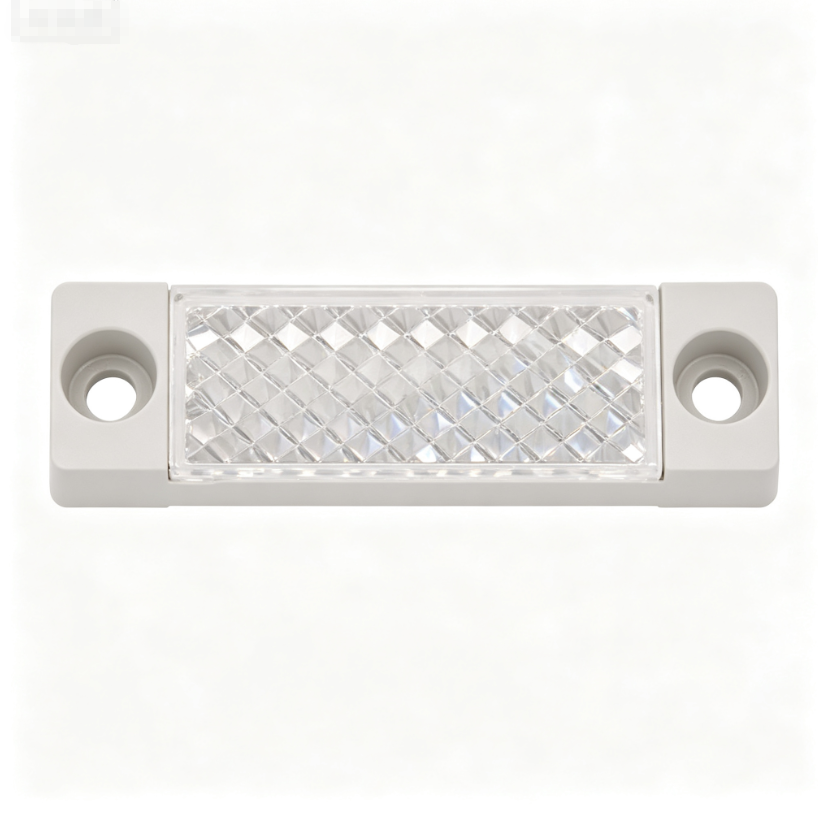

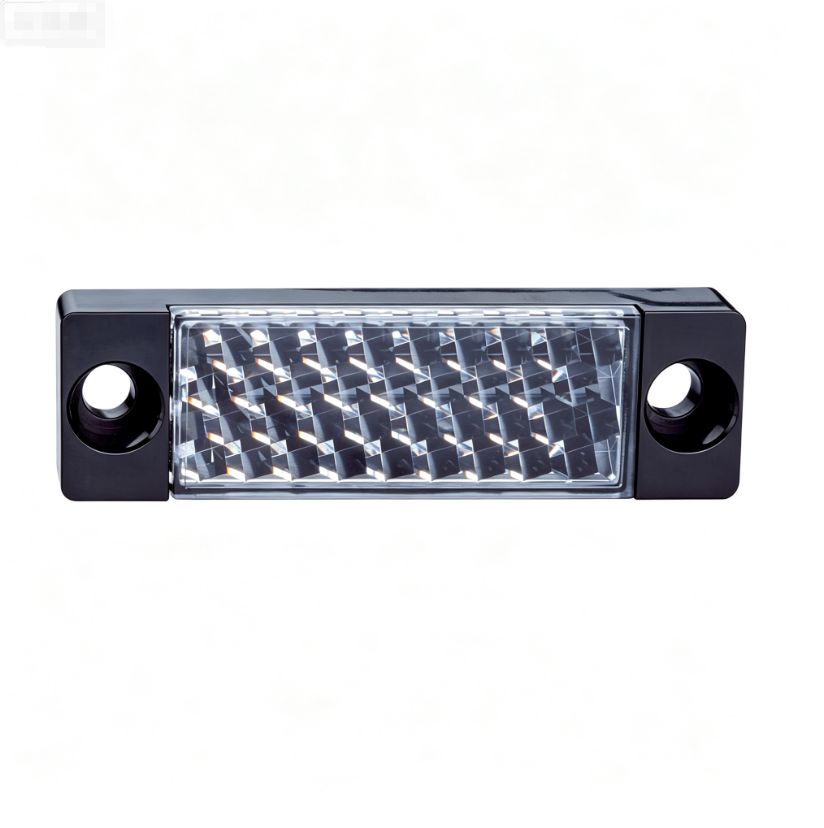

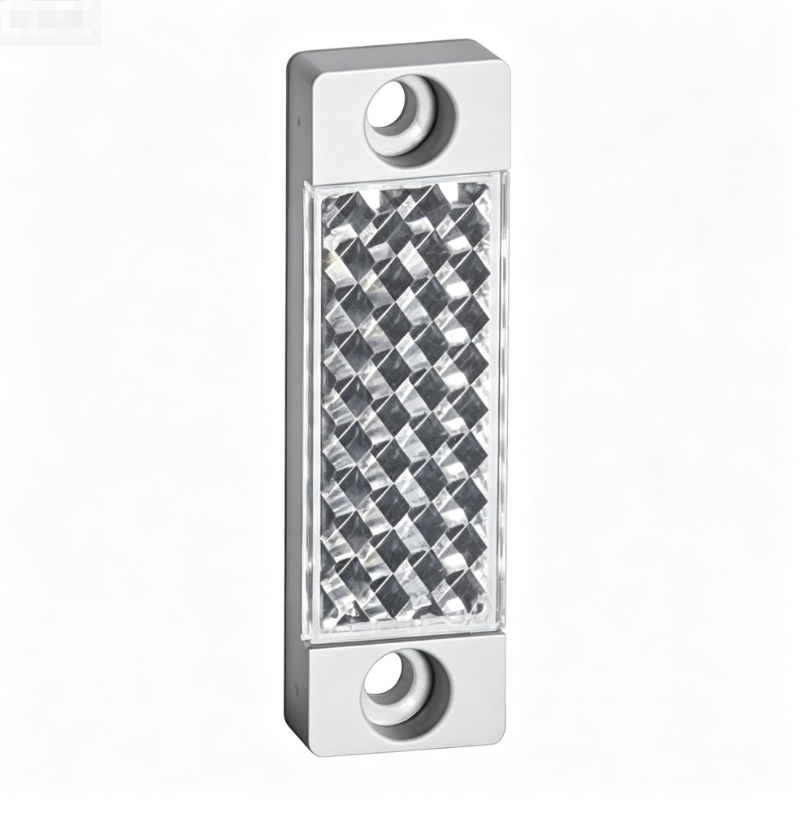

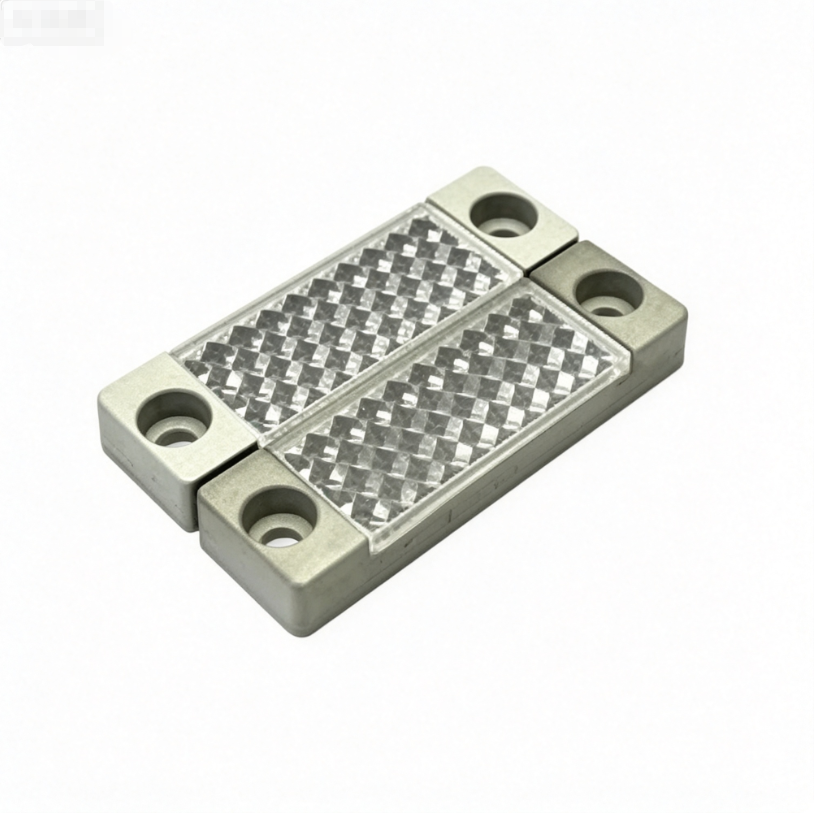

SICK PL20A (Part No.1012719) is a retro-reflective reflector for SICK photoelectric sensors. Rectangular shape with 2 mounting holes, dimension 18mm × 60mm, made of PMMA/ABS material. Adopts corner cube retroreflection principle, returns light beam back to the photoelectric sensor emitter. Operating temperature range -30℃ ~ +65℃. Designed for matching retro-reflective photoelectric sensors such as SICK W4, W12, W140 series. It is widely used as accessory for conveyor, production line and logistics sorting detection.

Attribute Name	Value
Brand	SICK
Model	PL20A
Part No.	1012719
Series	PL Series Reflector
Type	Retro-reflective Reflector
Shape	Rectangular, 2-hole screw mounting
Dimension	18mm × 60mm
Material	PMMA/ABS
Operating Temp	-30℃ ~ +65℃
Reflection Principle	Corner cube retroreflection
Compatible Sensor	SICK W4, W12, W140 series retro-reflective photoelectric sensors
Net Weight	0.02kg
Gross Weight	0.08kg
Origin	Germany
Warranty	1 year
Condition	New Original
Application	Matching reflector for retro-reflective photoelectric sensors, production line, material handling, conveyor detection, factory automation accessory
