6030716

属性项	参数
Brand	SICK
Model	WS/WE100L-F2231
Order No.	6030716
Product Type	Through-beam Laser Photoelectric Sensor
Sensing Principle	Through-beam (Transmitter + Receiver), Class1 red laser
Sensing Range	0 ~30 m
Output Type	PNP, Light-on / Dark-on switchable
Supply Voltage	10~30V DC
Connection	M8 4-pin male connector
Housing Material	ABS+PC Plastic
Protection Grade	IP65
Light Source	Red Laser,650nm,Class1
Size	11 × 31 × 20 mm
Response Time	≤250μs
Max Output Current	100mA
Operating Tem

INQUIRY

Product Details

Product Tags

Product Overview

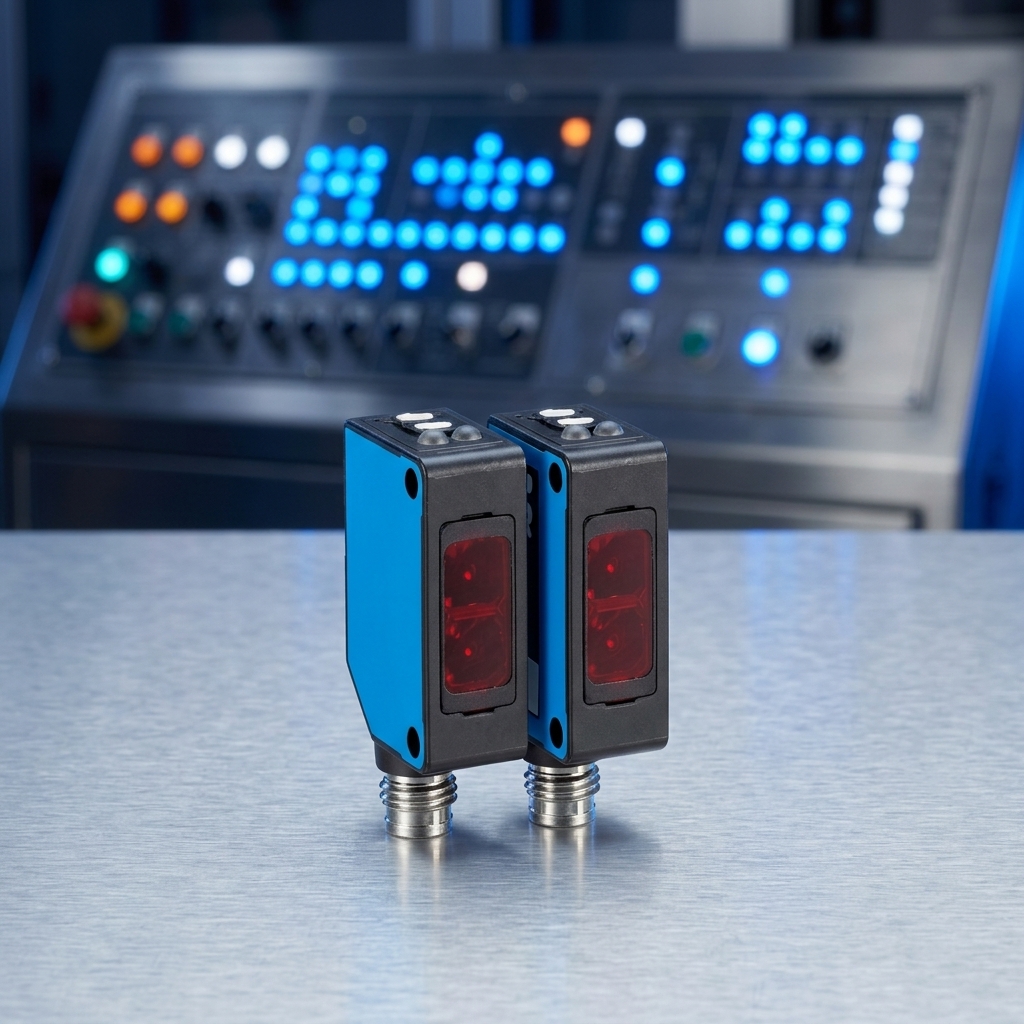

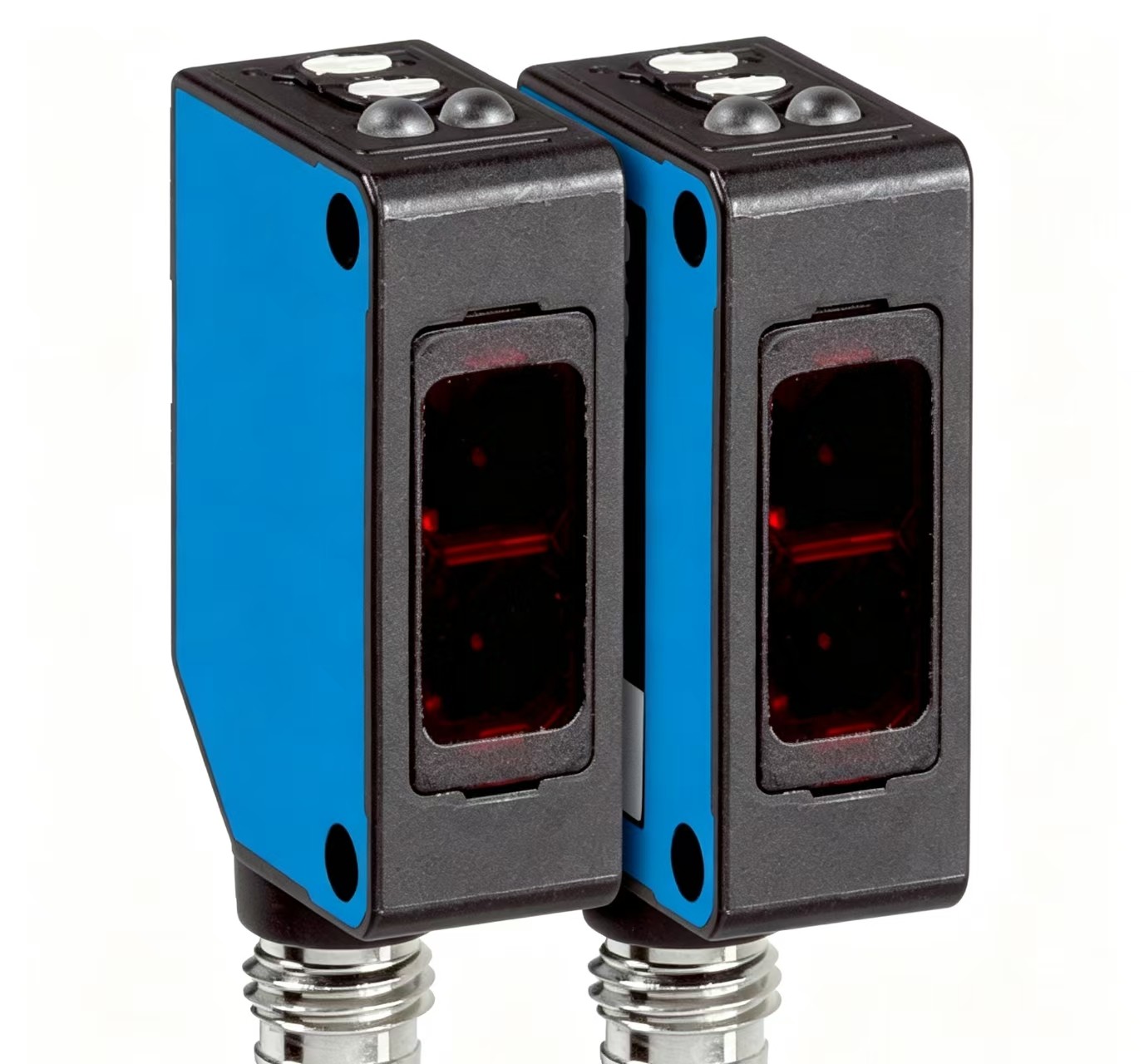

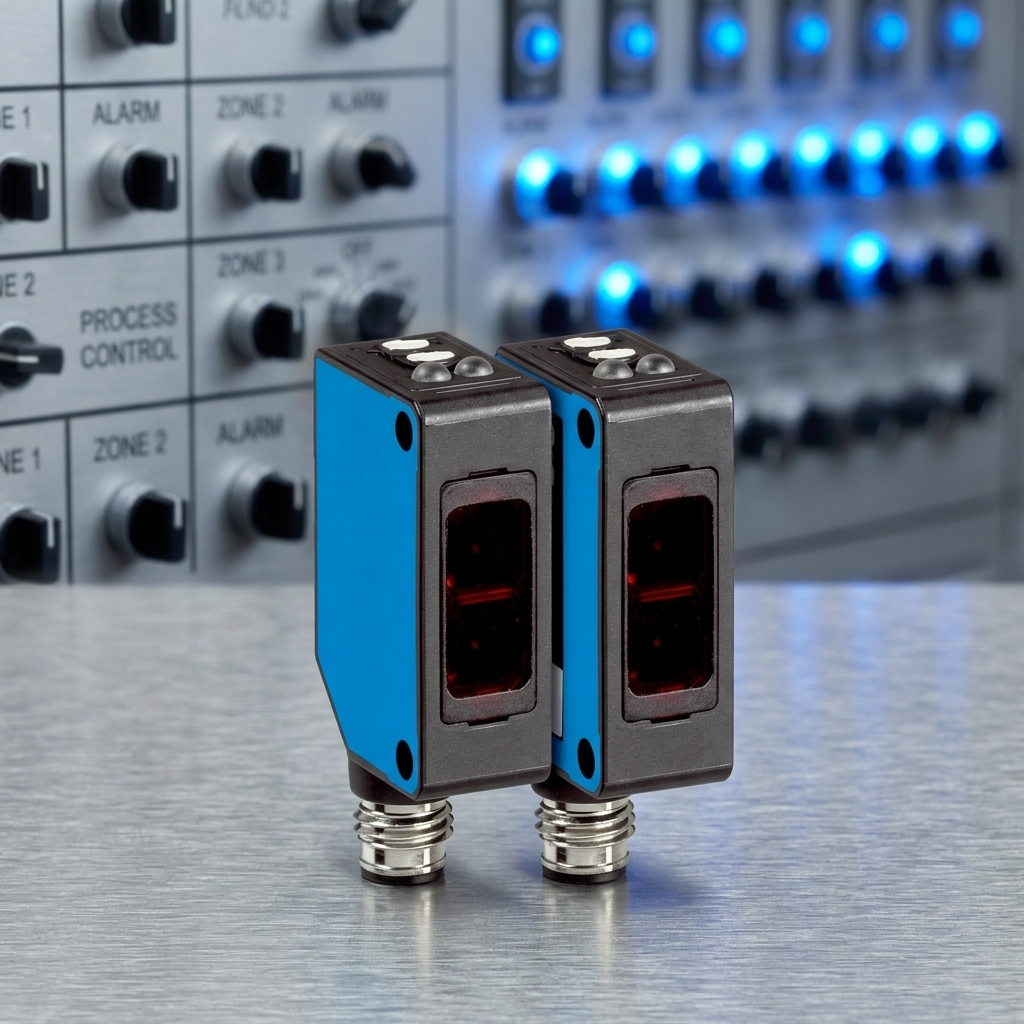

SICK WS/WE100L-F2231, Order No.6030716 is a through-beam laser photoelectric sensor set including transmitter and receiver. Equipped with Class1 red laser source, it creates ultra-fine laser spot for high-precision detection. It supports switchable Light-on / Dark-on modes, designed for long-distance and tiny object detection in industrial production.

属性项	参数
Brand	SICK
Model	WS/WE100L-F2231
Order No.	6030716
Product Type	Through-beam Laser Photoelectric Sensor
Sensing Principle	Through-beam (Transmitter + Receiver), Class1 red laser
Sensing Range	0 ~30 m
Output Type	PNP, Light-on / Dark-on switchable
Supply Voltage	10~30V DC
Connection	M8 4-pin male connector
Housing Material	ABS+PC Plastic
Protection Grade	IP65
Light Source	Red Laser,650nm,Class1
Size	11 × 31 × 20 mm
Response Time	≤250μs
Max Output Current	100mA
Operating Temp	-10℃ ~ +50℃
Net Weight	0.07kg
Gross Weight	0.10kg
Certification	CE
Application	Factory Automation, Conveyor, Packaging Machine, Long distance & small object detection
