6030710

属性项	参数
Brand	SICK
Model	WL100L-F2231
Order No.	6030710
Product Type	Retro-reflective Laser Photoelectric Sensor
Sensing Principle	Retro-reflective, dual lens, polarizing filter, Class1 red laser
Sensing Range	0.08 ~12 m (with P250F reflector)
Output Type	PNP, Light-on / Dark-on switchable
Supply Voltage	10~30V DC
Connection	M8 4-pin male connector
Housing Material	ABS+PC Plastic
Protection Grade	IP65
Light Source	Red Laser,650nm,Class1
Size	23.5 × 74.5 × 63 mm
Response Time	≤250μs

INQUIRY

Product Details

Product Tags

Product Overview

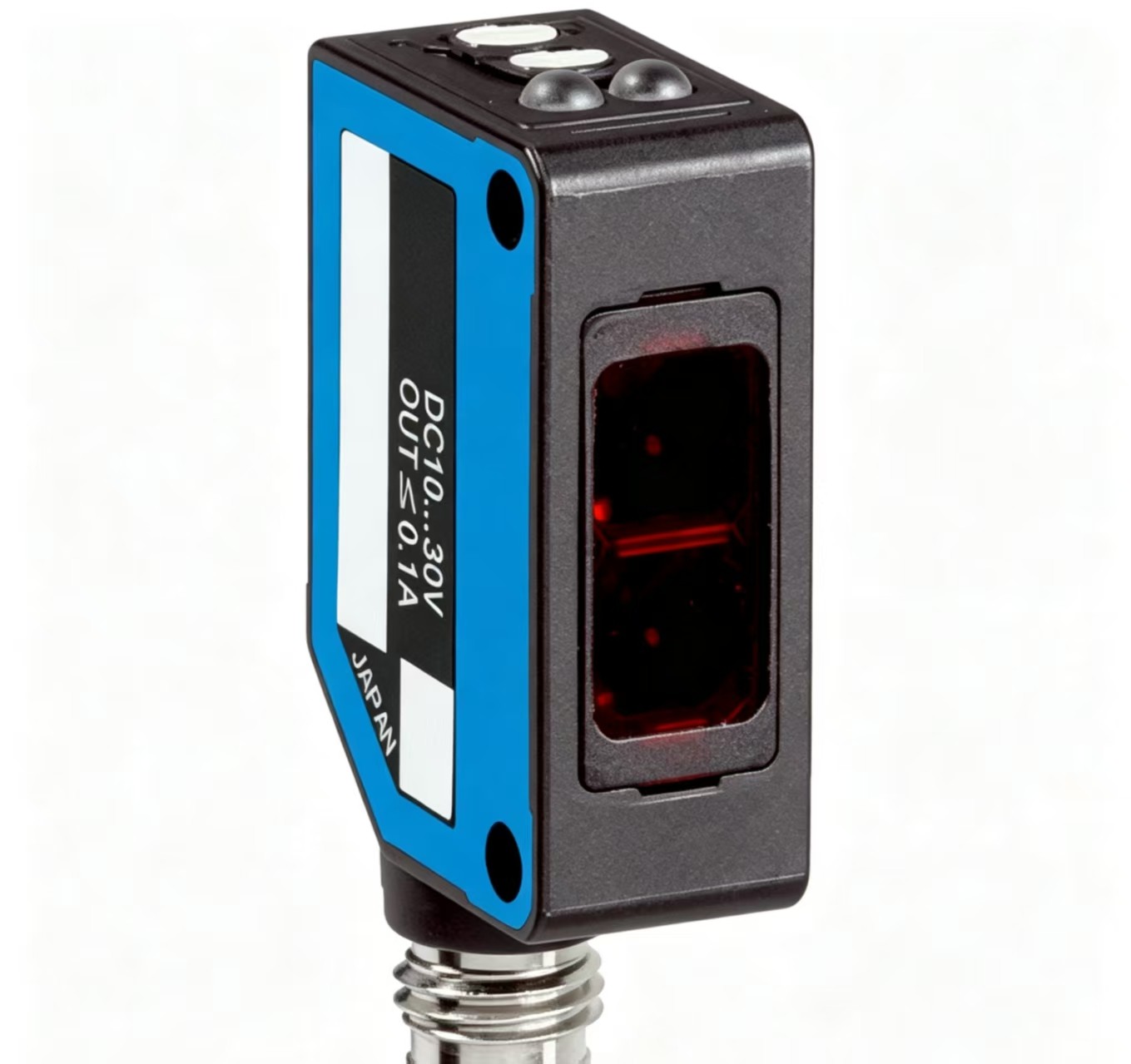

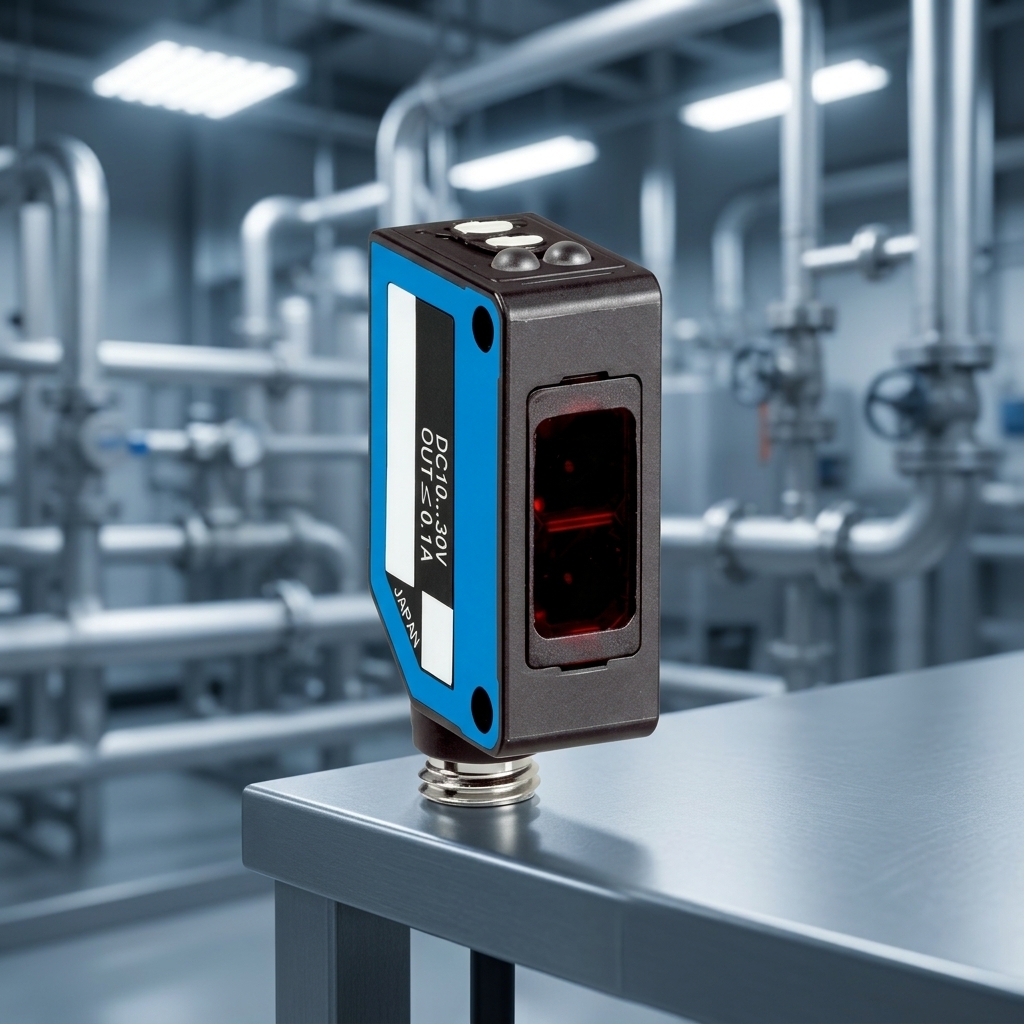

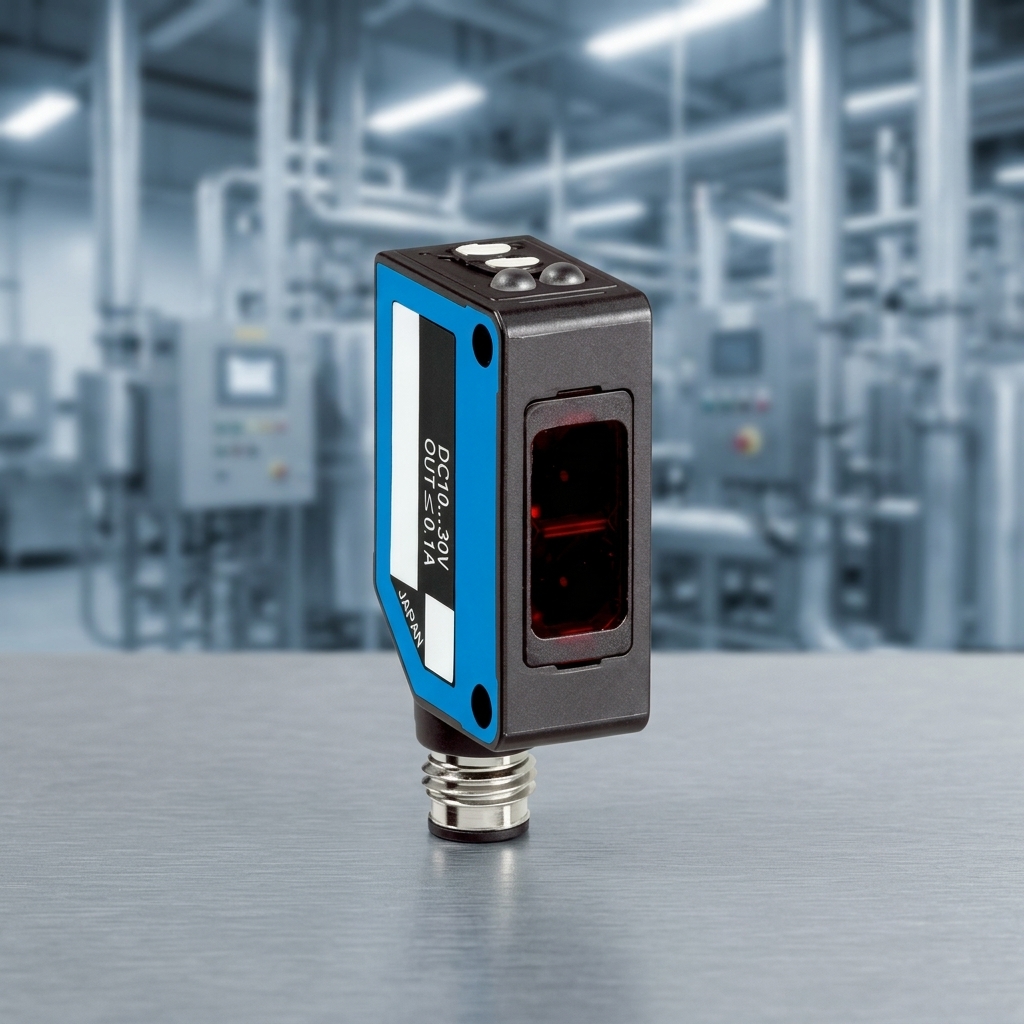

SICK WL100L-F2231, Order No.6030710 is a retro-reflective laser photoelectric sensor with Class1 red laser and built-in polarizing filter. The ultra-fine laser spot enables precise detection of tiny objects. It supports switchable Light-on / Dark-on modes, offering flexible setup for different industrial detection tasks.

属性项	参数
Brand	SICK
Model	WL100L-F2231
Order No.	6030710
Product Type	Retro-reflective Laser Photoelectric Sensor
Sensing Principle	Retro-reflective, dual lens, polarizing filter, Class1 red laser
Sensing Range	0.08 ~12 m (with P250F reflector)
Output Type	PNP, Light-on / Dark-on switchable
Supply Voltage	10~30V DC
Connection	M8 4-pin male connector
Housing Material	ABS+PC Plastic
Protection Grade	IP65
Light Source	Red Laser,650nm,Class1
Size	23.5 × 74.5 × 63 mm
Response Time	≤250μs
Max Output Current	100mA
Operating Temp	-10℃ ~ +50℃
Net Weight	0.07kg
Gross Weight	0.11kg
Certification	CE
Condition	New Original
Application	Factory Automation, Conveyor, Packaging Machine, High speed & small object detection
