1082138 (KTM-WP11172P)

属性项	参数
Brand	SICK
Model	KTM-WP11172P
Order No.	1082138
Product Type	Contrast Sensor / Color Mark Sensor
Sensing Principle	Contrast detection
Sensing Range	8mm
Output Type	PNP, Light-on / Dark-on switchable
Supply Voltage	10~30V DC
Connection	M12 4-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	White LED
Size	12 × 34.6 × 71.9 mm
Response Time	25μs
Max Output Current	100mA
Operating Temp	-25℃ ~ +55℃
Net Weight	0.07kg
Gross Weight	0.10kg
Certif

INQUIRY

Product Details

Product Tags

Product Overview

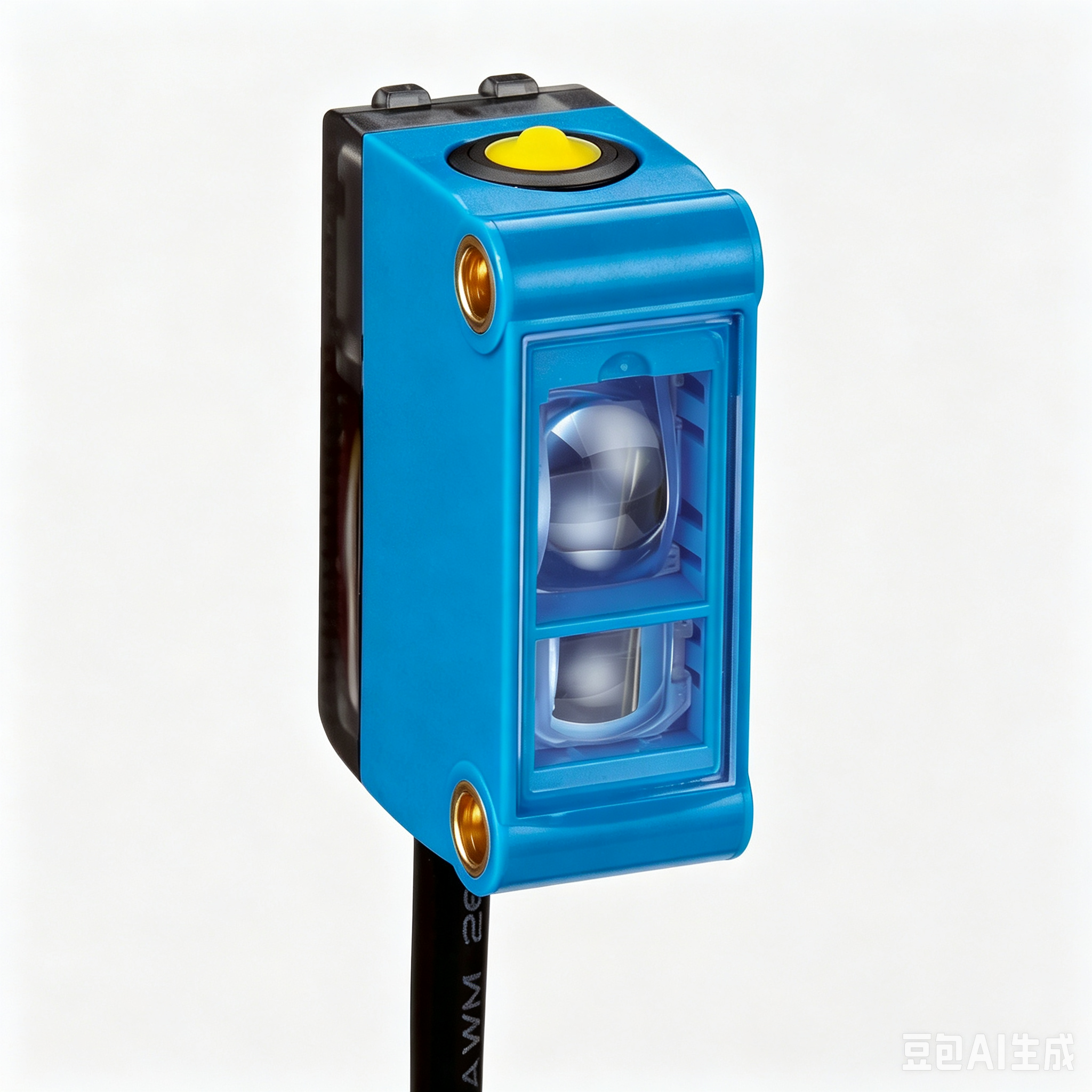

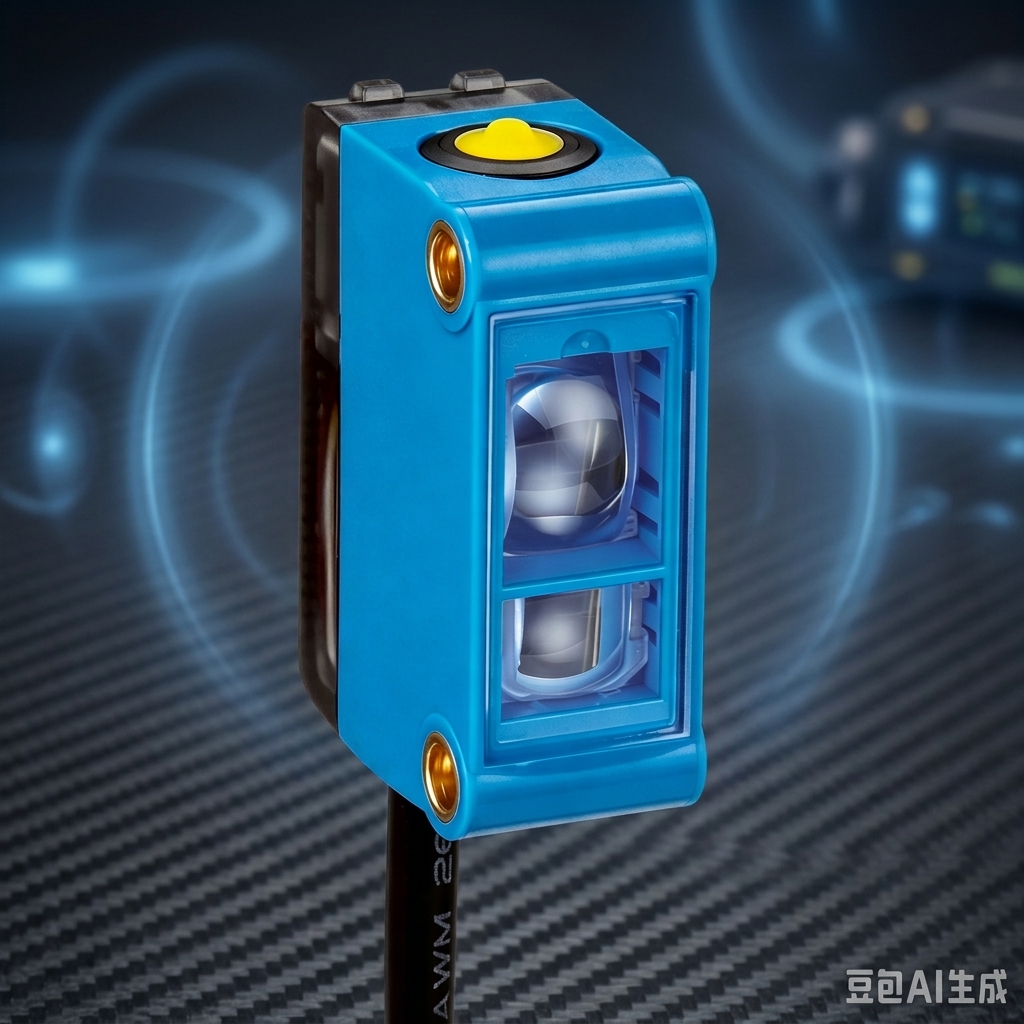

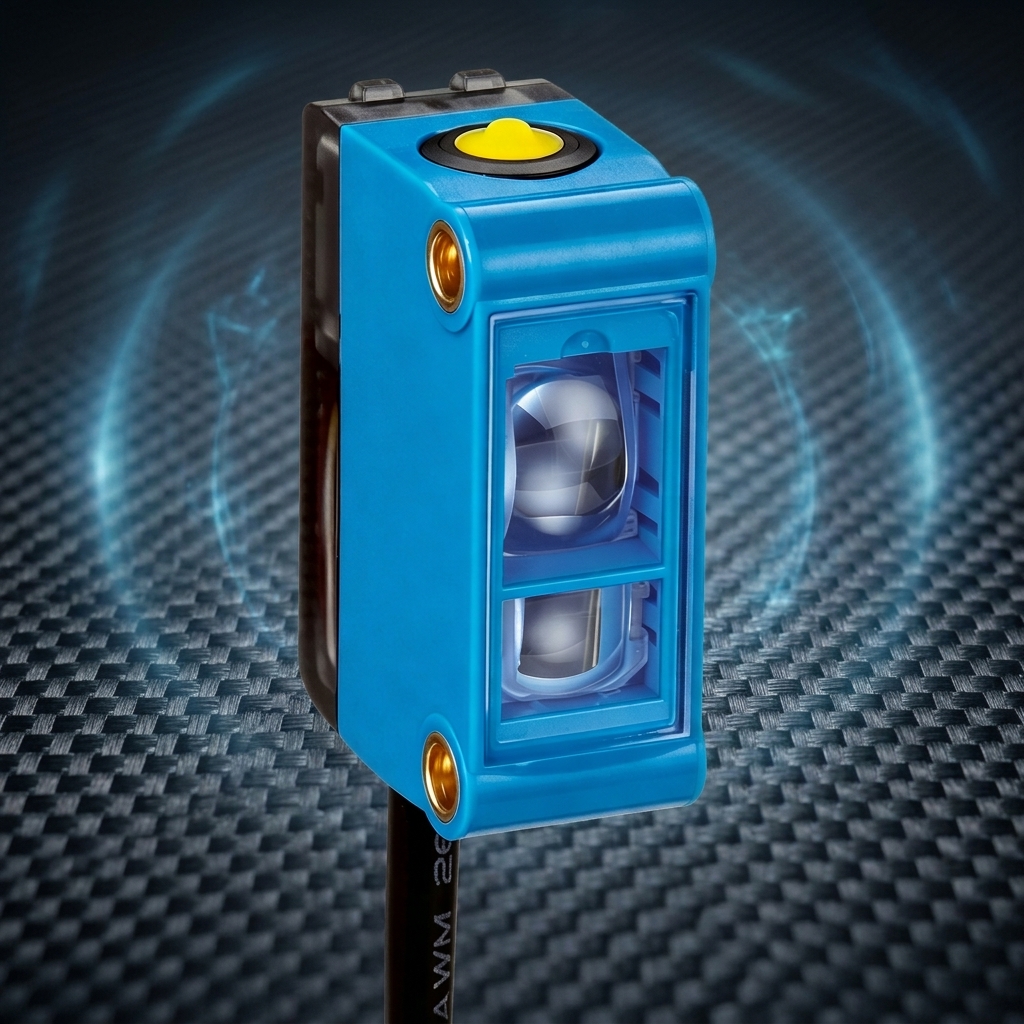

SICK KTM-WP11172P, Order No.1082138 is a high-performance contrast color mark sensor of KTM series. Equipped with white LED light source and ultra-fast response speed, it is designed for detecting contrast marks, label edges and print marks on high-speed packaging and printing lines. It supports switchable Light-on / Dark-on modes to meet different detection requirements.

属性项	参数
Brand	SICK
Model	KTM-WP11172P
Order No.	1082138
Product Type	Contrast Sensor / Color Mark Sensor
Sensing Principle	Contrast detection
Sensing Range	8mm
Output Type	PNP, Light-on / Dark-on switchable
Supply Voltage	10~30V DC
Connection	M12 4-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	White LED
Size	12 × 34.6 × 71.9 mm
Response Time	25μs
Max Output Current	100mA
Operating Temp	-25℃ ~ +55℃
Net Weight	0.07kg
Gross Weight	0.10kg
Certification	CE
Condition	New Original
Application	Printing machine, Packaging machine, Color mark detection, Label positioning
