GL10-P4551

属性项	参数
Brand	SICK
Model	GL10-P4551
Order No.	1064702
Product Type	Retro-reflective Photoelectric Sensor
Sensing Principle	Retro-reflective, Dual lens, polarizing filter
Sensing Range	0.15 ~10 m (with PL80A reflector)
Output Type	PNP, Light-on
Supply Voltage	10~30V DC
Connection	M12 4-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	Red PinPoint LED,625nm
Size	20 × 50 × 39 mm
Response Time	≤1ms
Max Output Current	100mA
Operating Temp	-30℃ ~ +60℃

INQUIRY

Product Details

Product Tags

Product Overview

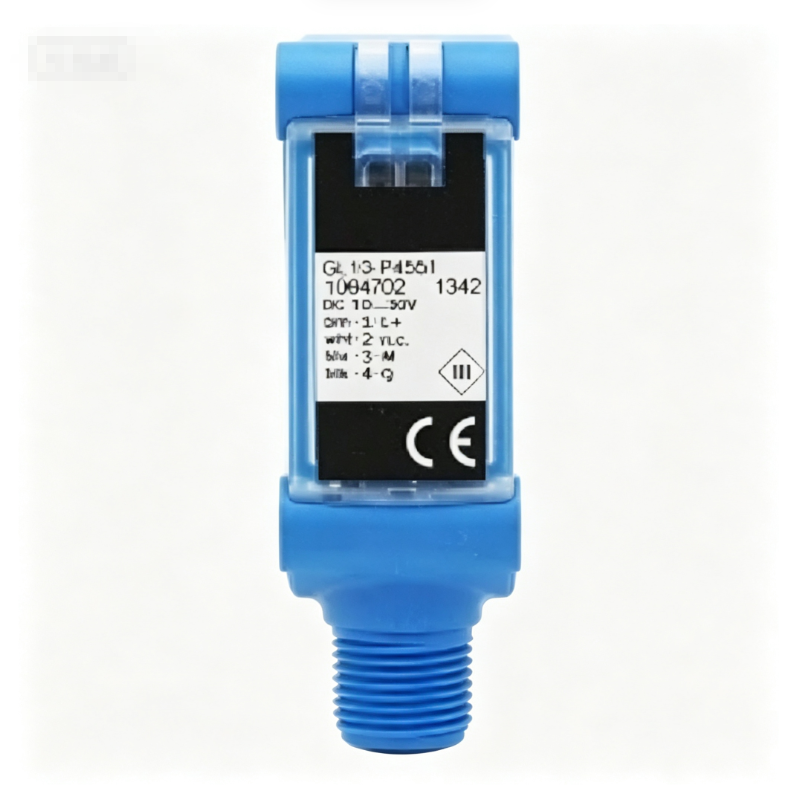

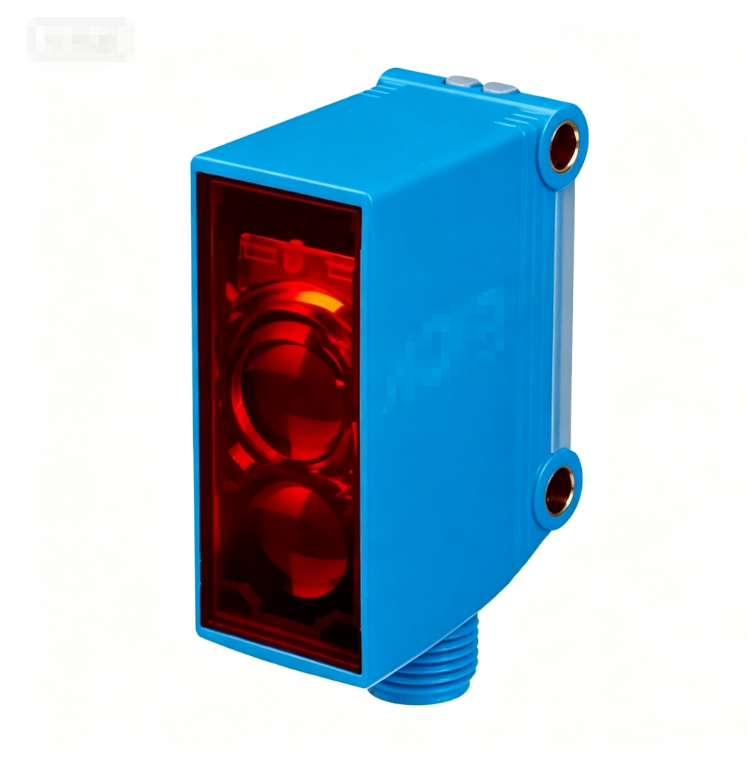

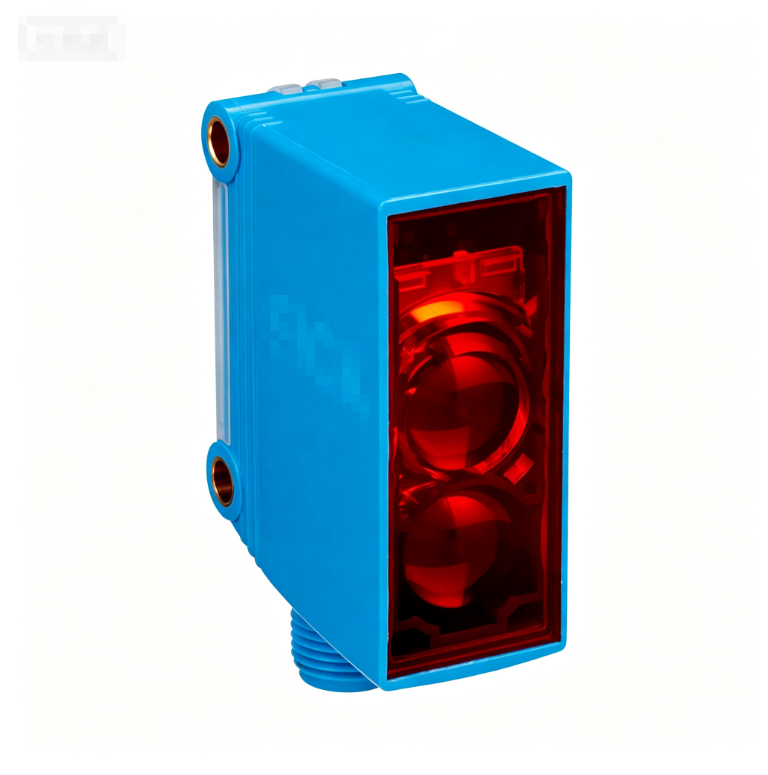

SICK GL10-P4551, Order No.1064702 is a retro-reflective photoelectric sensor with dual lens design and built-in polarizing filter. It adopts red PinPoint LED light source, delivering precise light spot. The polarizing filter suppresses interference from glossy or film-wrapped surfaces to avoid false detection.

属性项	参数
Brand	SICK
Model	GL10-P4551
Order No.	1064702
Product Type	Retro-reflective Photoelectric Sensor
Sensing Principle	Retro-reflective, Dual lens, polarizing filter
Sensing Range	0.15 ~10 m (with PL80A reflector)
Output Type	PNP, Light-on
Supply Voltage	10~30V DC
Connection	M12 4-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	Red PinPoint LED,625nm
Size	20 × 50 × 39 mm
Response Time	≤1ms
Max Output Current	100mA
Operating Temp	-30℃ ~ +60℃
Net Weight	0.04kg
Gross Weight	0.07kg
Certification	CE
Condition	New Original
Application	Factory Automation, Conveyor, Packaging Machine, Film wrapped object detection
