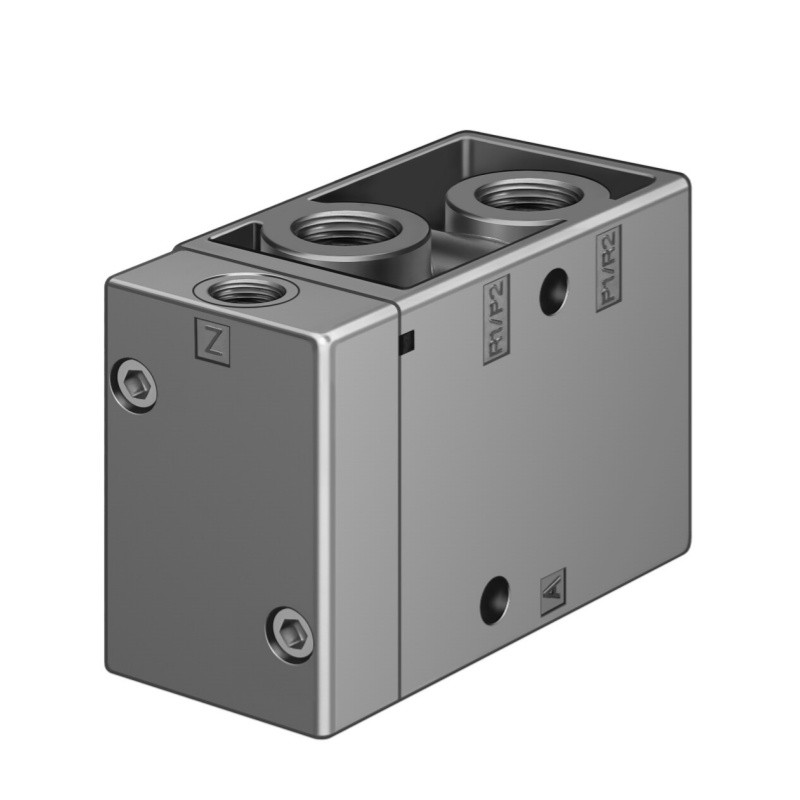

VL/O-3-1/8-B
Product Overview
VL/O-3-1/8-B, Part No.9984, belongs to Festo mechanical control valve series. It is a 3/2-way normally closed roller lever valve. When workpiece or cam touches the roller lever, the valve switches air circuit; after releasing, internal spring automatically resets. Adopts G1/8 pneumatic interface and metal roller for long service life. It converts mechanical contact motion into pneumatic signal, widely used as position limit signal in pneumatic automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VL/O-3-1/8-B |
| Part No. | 9984 |
| Type | 3/2-way roller lever valve, normally closed |
| Valve function | 3/2 NC, roller lever actuation, spring return |
| Pneumatic port | G1/8 |
| Nominal bore | 2.5 mm |
| Standard nominal flow rate | 180 l/min |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Working pressure | 0 ~ 10 bar |
| Temperature range | -10 ~ 60 ℃ |
| Actuator | Roller lever, horizontal actuation |
| Weight | 42.00 g |
| Feature | Mechanical roller trigger, spring reset, metal roller, compact body, for position signal triggering |
| Corrosion resistance class | CRC1 |
| RoHS | Compliant |
