LRP-1/4-2,5
Product Overview
Item No: 162834 Model: LRP-1/4-2,5 Brand: Festo Type: Precision Pressure Regulator, LRP Series

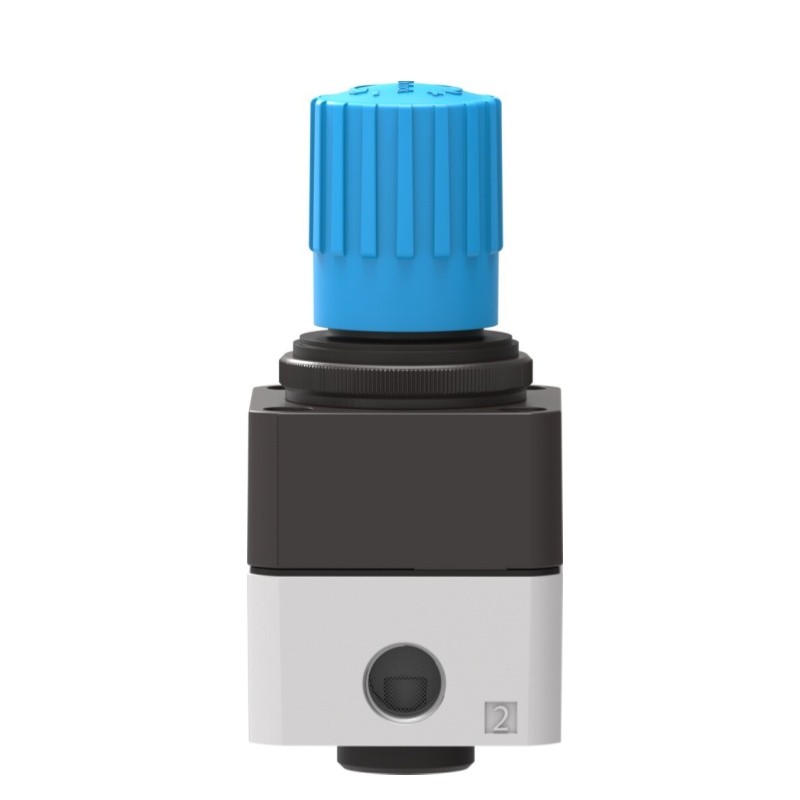

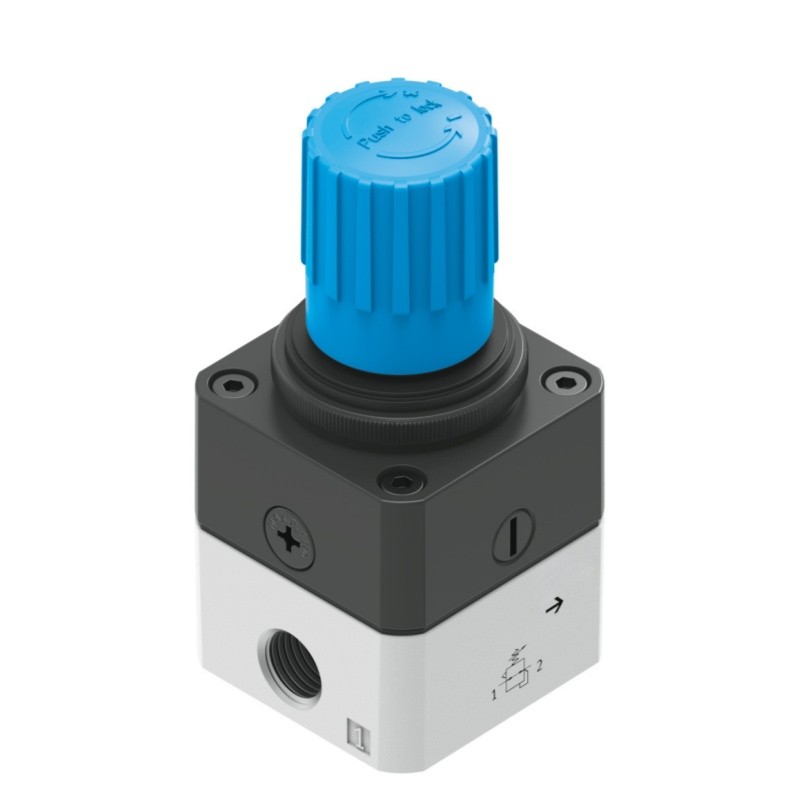

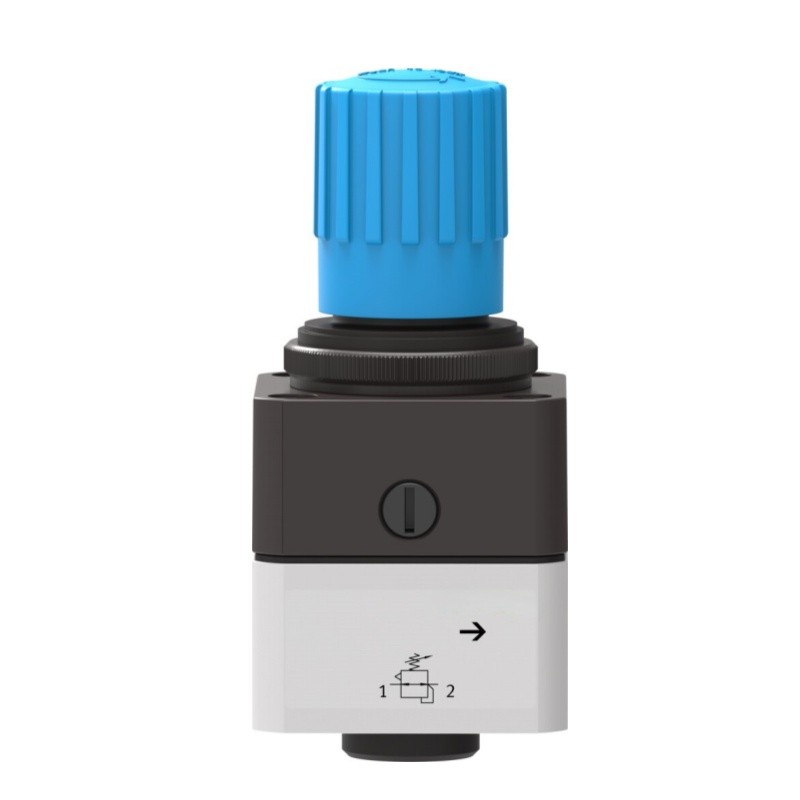

Festo LRP-1/4-2,5 precision pressure regulator, part number 162834, belongs to LRP series piloted diaphragm pressure regulators. It is designed for ultra-precise air pressure control with low hysteresis and primary pressure compensation, eliminating pressure fluctuation caused by inlet pressure changes. Equipped with G1/4 inlet and outlet ports plus G1/8 port for pressure gauge. The rotary adjustment knob has detent lock to prevent accidental adjustment. Aluminium alloy housing and NBR seals ensure long service life. It can be panel mounted or installed in-line, any mounting position allowed. Suitable for filtered non-lubricated compressed air and inert gas. Widely applied in coating, labelling equipment, test benches and sensitive automation equipment requiring stable low pressure output.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | LRP-1/4-2,5 |
| Part No. | 162834 |
| Product Series | LRP |
| Product Type | Precision Pressure Regulator |
| Product Function | Piloted precision diaphragm regulator, secondary exhausting |
| Pneumatic Connection | G1/4 (port1 & port2), G1/8 port for pressure gauge |
| Pressure Regulation Range | 0.05 ~ 2.5 bar |
| Inlet Operating Pressure | 1 ~ 12 bar |
| Max Pressure Hysteresis | 0.02 bar |
| Nominal Flow Rate | 1800 l/min |
| Operating Medium | Filtered compressed air ISO 8573-1 [7:4:4], inert gas (non-lubricated only) |
| Ambient Temperature | -10 ℃ ~ +60 ℃ |
| Housing Material | Aluminium alloy |
| Seal Material | NBR |
| Adjustment | Rotary knob with detent lock |
| Mounting | Panel mount / in-line installation, any mounting position |
| Net Weight | 310 g/pc |
| RoHS Compliance | Yes |
| Feature | Ultra low hysteresis, primary pressure compensation, fast response |
| Application | Precision air pressure control, labelling, coating, test bench, sensitive automation equipment |
