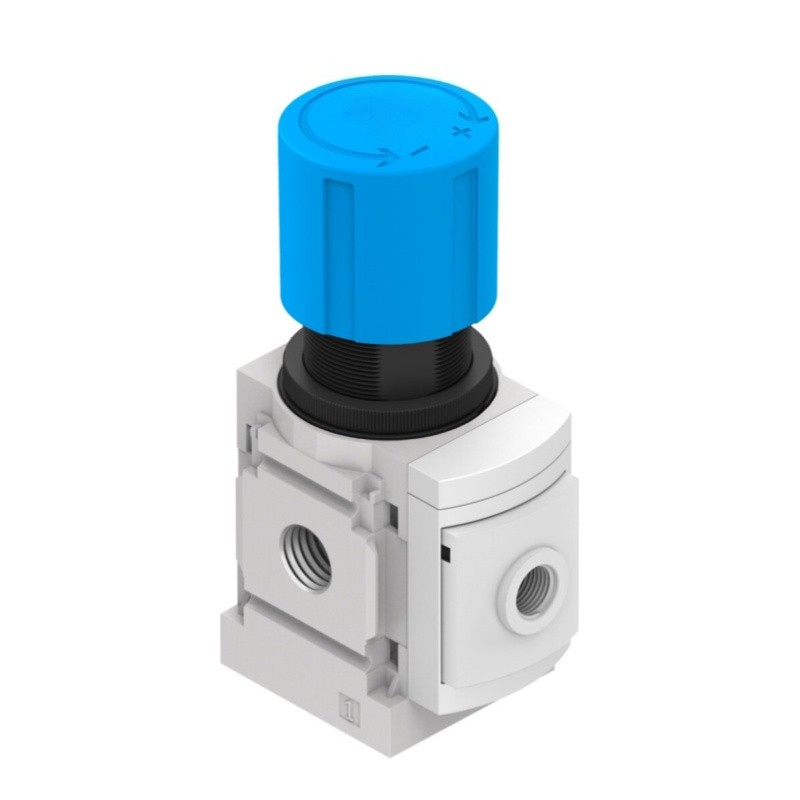

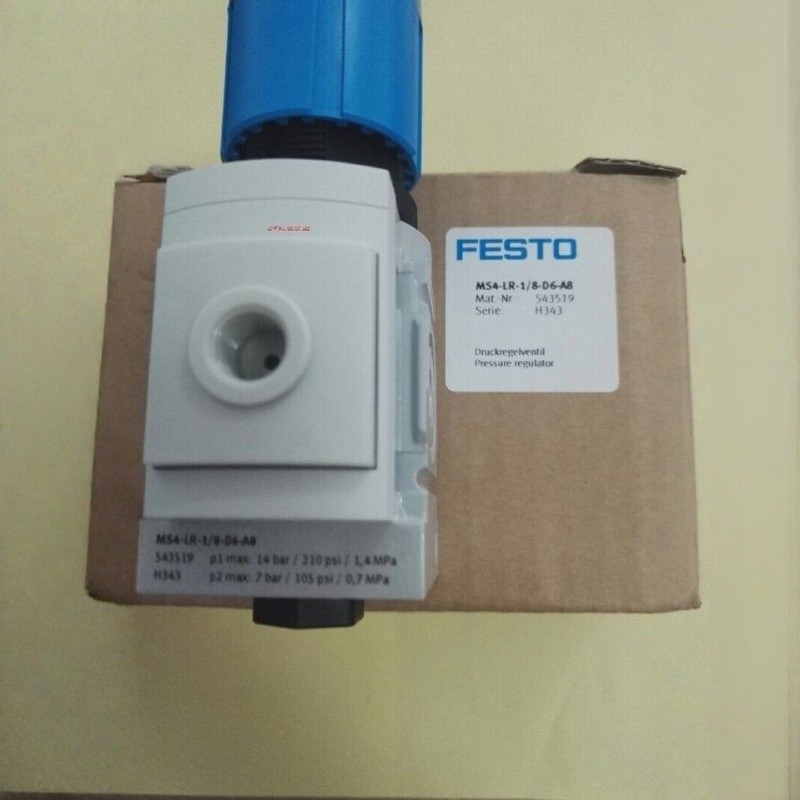

MS4-LR-1/8-D6-A8
Product Overview
MS4-LR-1/8-D6-A8, Part No.529419, belongs to Festo MS4 modular air preparation system. It is a standalone pressure regulator used to stabilize outlet pressure of compressed air branch line. Equipped with built-in 6μm protection screen to block particle impurities and protect internal valve core. A8 version comes with rotatable pressure gauge for convenient pressure reading. The adjustment knob can be locked to prevent accidental pressure change. Modular stacking structure, can be assembled with MS4 filter, lubricator and branch modules, widely used for pressure regulation of small pneumatic actuators and valve islands.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MS4-LR-1/8-D6-A8 |
| Part No. | 529419 |
| Type | Pressure regulator, MS4 air service unit |
| Port size | G1/8 |
| Filter element | D6: 6μm filter screen for protection inside regulator |
| Pressure adjustment range | 0.3 ~ 7 bar |
| Max inlet pressure | 16 bar |
| Nominal flow rate | 1100 l/min |
| Pressure gauge | A8: built-in pressure gauge, gauge scale 0~10 bar |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Temperature range | -10 ~ 60 ℃ |
| Material | Housing: Zinc die casting, Bowl: Polycarbonate, Seal: NBR |
| Weight | 230.00 g |
| Feature | MS4 modular stackable design, rotatable pressure gauge, secondary pressure relief, integrated 6μm protection screen, lockable adjustment knob |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
