153023 QSF-1/8-6-B
Product Overview

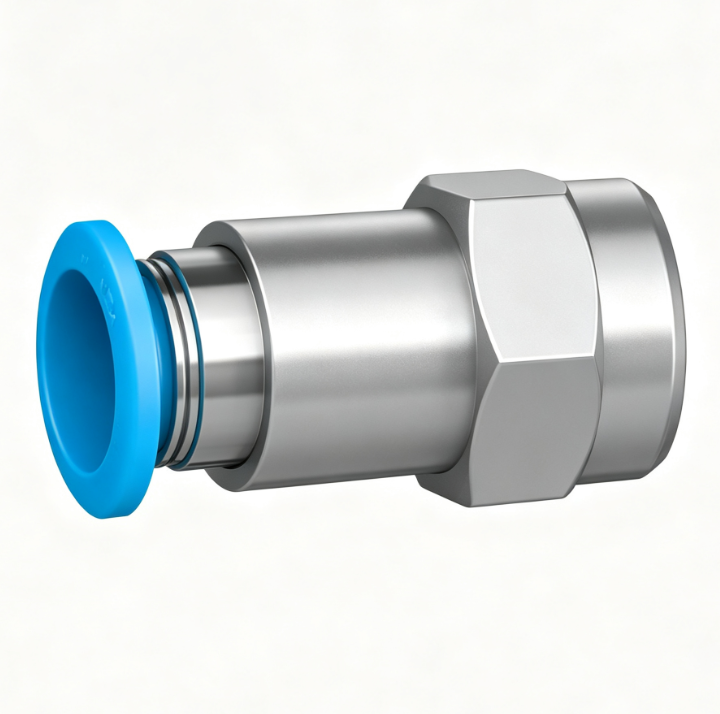

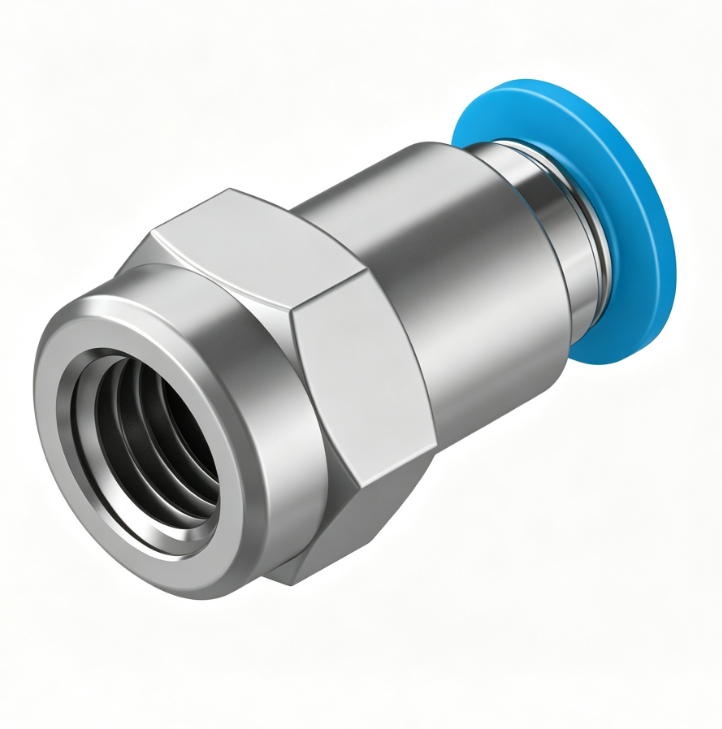

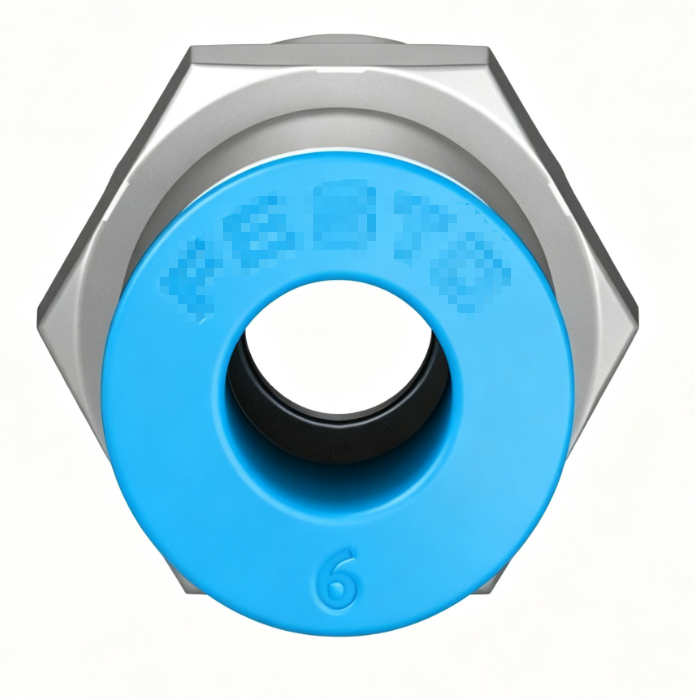

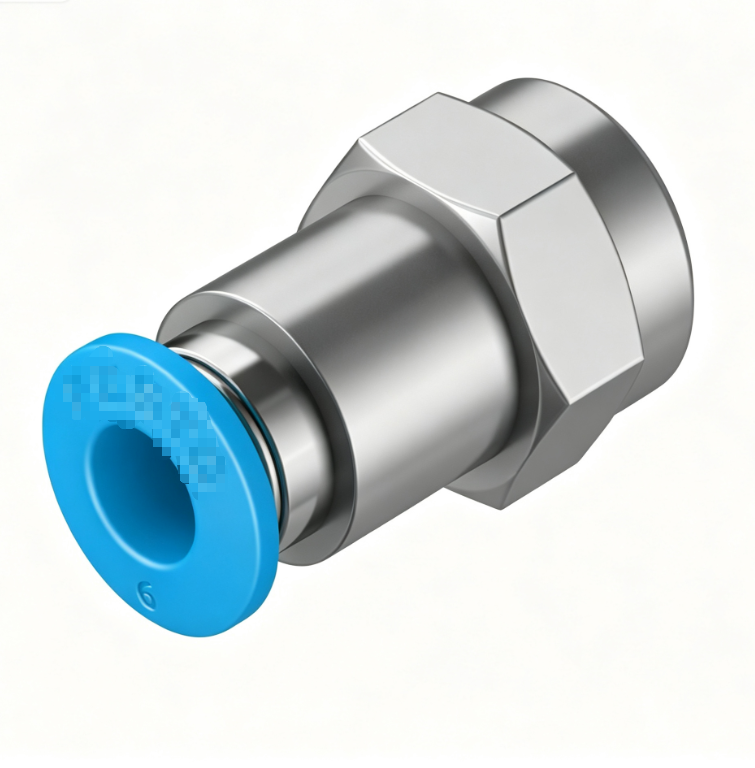

QSF-1/8-6-B (Part No.153023) is Festo QSF series straight push-in pneumatic fitting. It adopts push-pull connection principle, with G1/8 internal thread and compatible for OD6mm pneumatic tubing. Constructed with nickel-plated brass body, POM releasing ring, NBR seal and stainless steel retaining claw. It enables quick tube insertion and removal without extra tools, offering reliable leak-tight performance for compressed air and vacuum pipelines. Working pressure -0.95~10 bar, ambient temperature -20~80℃. RoHS compliant. Widely used for pneumatic circuit connection in automation machinery.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | QSF-1/8-6-B |
| MPN | 153023 |
| Product Type | Push-in Pneumatic Fitting, Straight Quick Connector |
| Series | QSF Series |
| Thread Specification | G1/8 internal thread |
| Tube Size | OD6mm plastic pneumatic tube |
| Material | Body: Nickel-plated brass; Release ring: POM; Seal: NBR; Retaining claw: High alloy stainless steel |
| Working Medium | Compressed air, vacuum |
| Working Pressure | -0.95 ~ 10 bar |
| Ambient Temperature | -20 ~ 80 ℃ |
| Feature | Straight push-in fitting, push-pull principle, easy tube assembly, leak-proof, compact design, corrosion resistant nickel-plated brass body |
| Compliance | RoHS compliant |
| Application | Pneumatic pipeline connection, connect PU tube with threaded port, automation compressed air & vacuum circuit |
