DSNU-25-160-PPV-A-Q
Product Overview

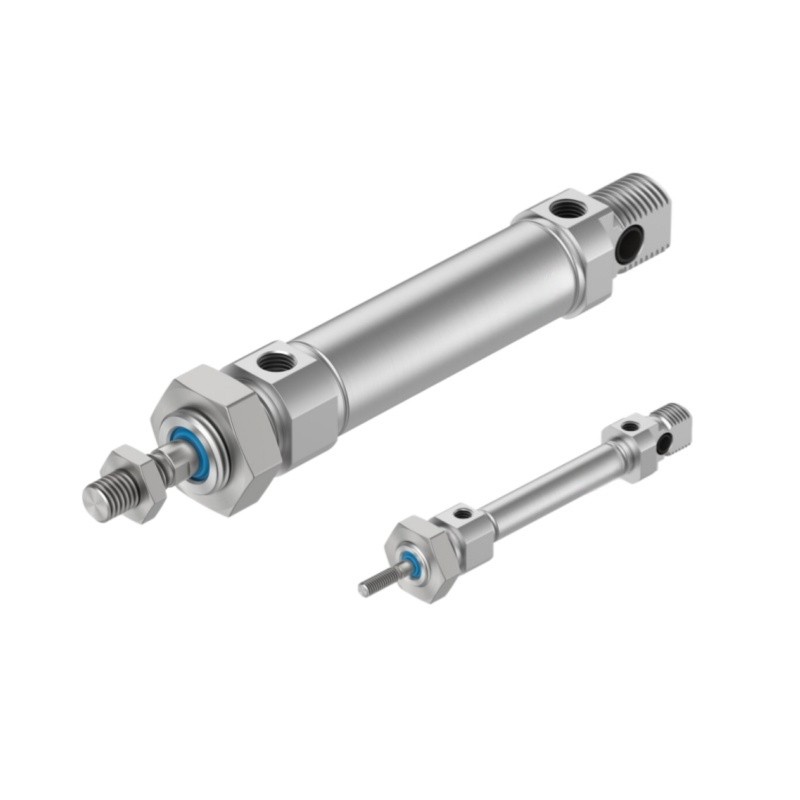

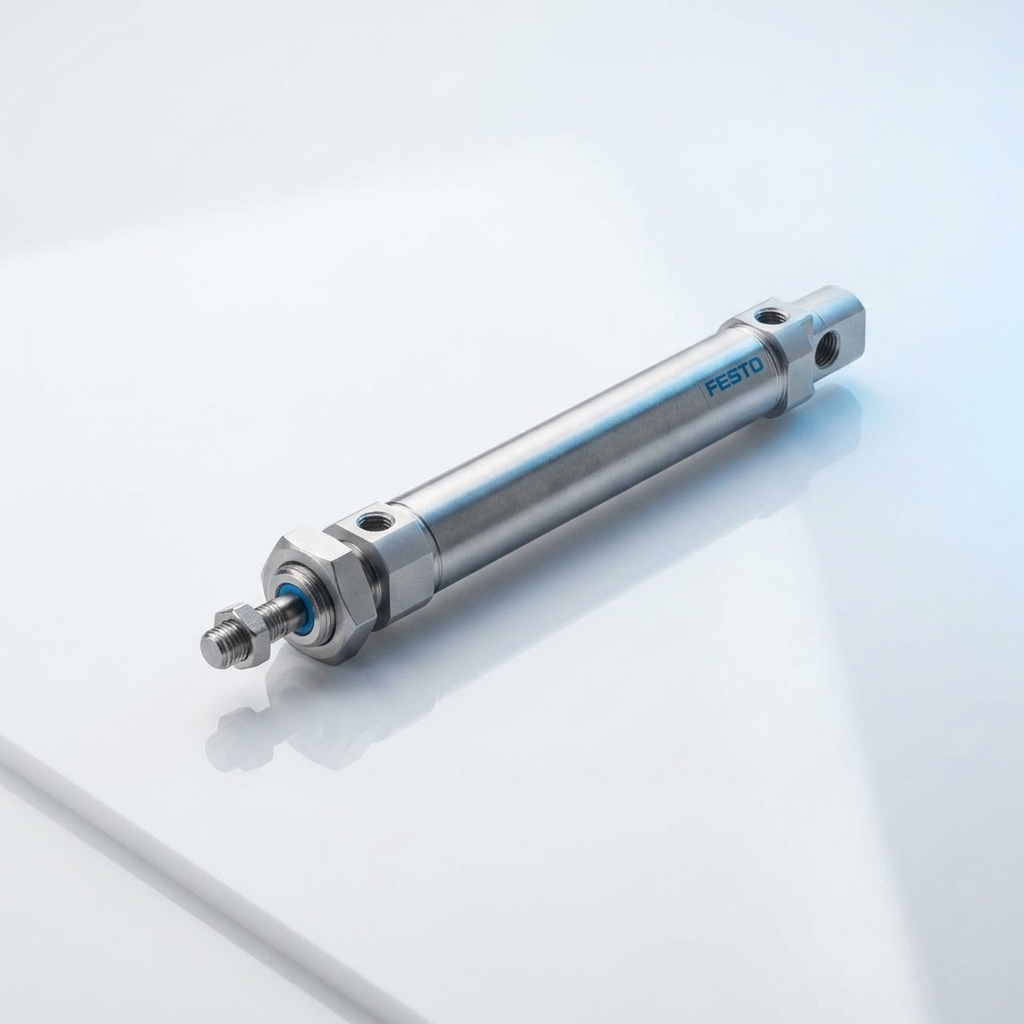

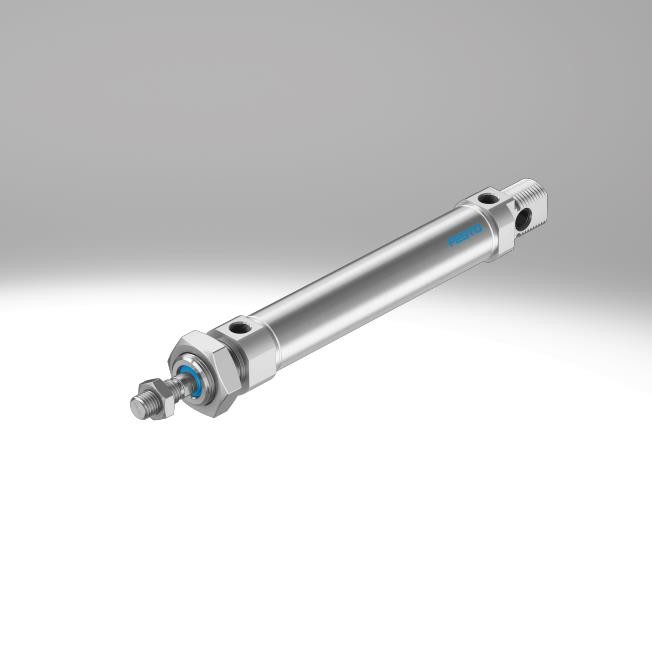

DSNU-25-160-PPV-A-Q, Part No.19250, belongs to Festo DSNU series ISO 6432 standard round cylinder. Double acting design with Q square piston rod to prevent rotation. PPV adjustable pneumatic cushioning at both ends to reduce impact noise. A variant supports magnetic proximity sensor for piston position feedback. LABS/PWIS compliant, widely used for linear pushing, lifting and transfer tasks in automation machines.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | DSNU-25-160-PPV-A-Q |
| Part No. | 19250 |
| Type | Round standard cylinder, double acting, ISO 6432 |
| Piston diameter | 25 mm |
| Stroke | 160 mm |
| Cushioning | PPV, adjustable pneumatic cushioning on both ends |
| Rod variant | Q: Square piston rod, anti-rotation |
| Pneumatic port | G1/8 |
| Theoretical force @6 bar | Advance:294.5 N, Retract:246 N |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Working pressure | 1 ~ 10 bar |
| Temperature range | -20 ~ 80 ℃ |
| Material | Barrel: Stainless steel, End caps: Anodized aluminium, Piston rod: Stainless steel, Seal: NBR |
| Weight | 620.00 g |
| Feature | Square rod anti-rotation, adjustable pneumatic cushion, A-version for magnetic position sensing, LABS/PWIS compliant |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
| Standard | ISO 6432, VDMA24364-B1/B2-L |
