IME12-04BPPZC0S
Product Overview

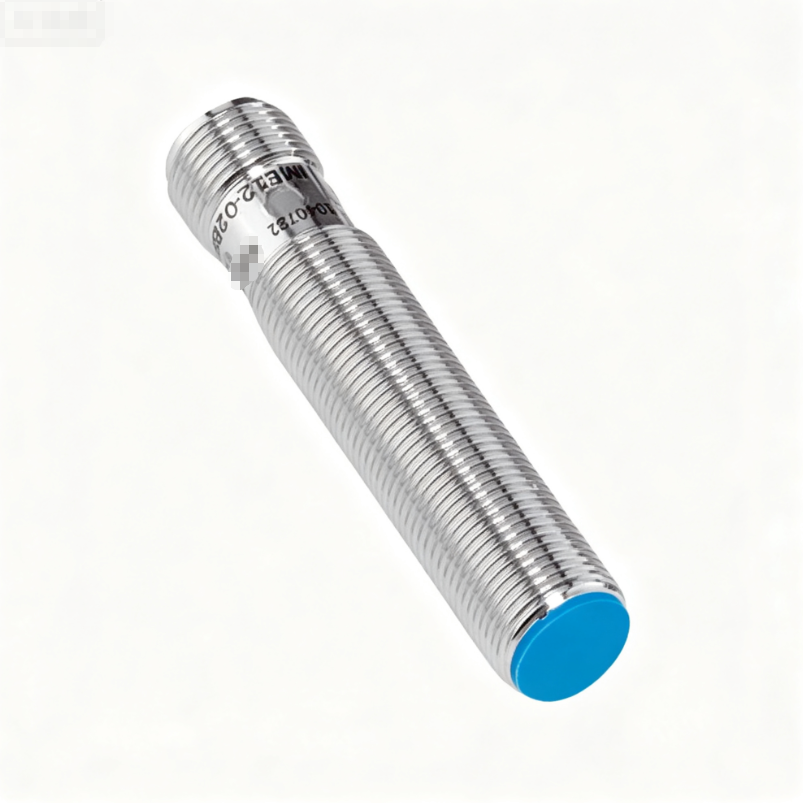

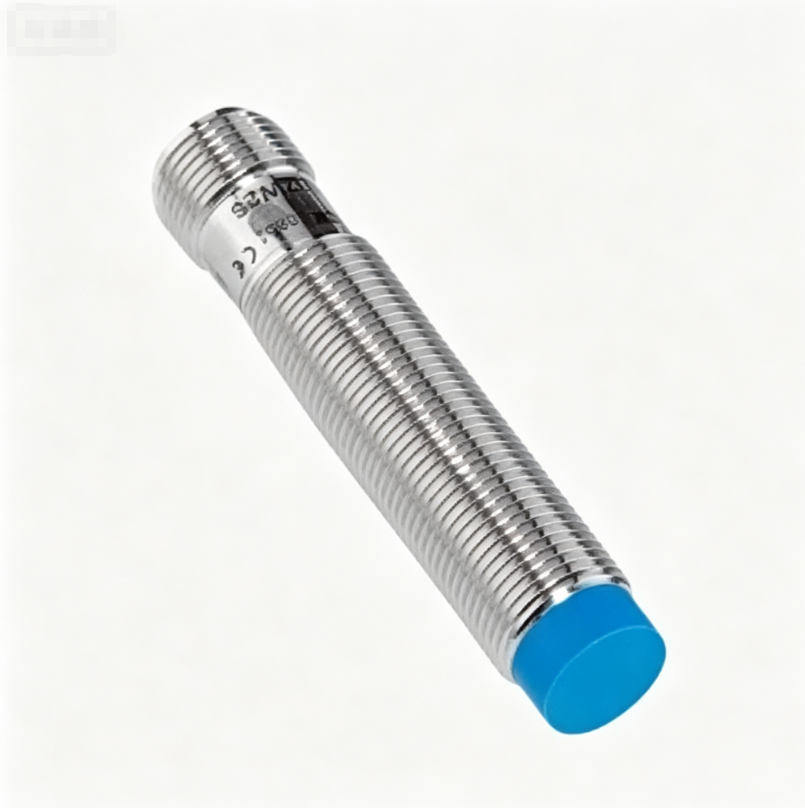

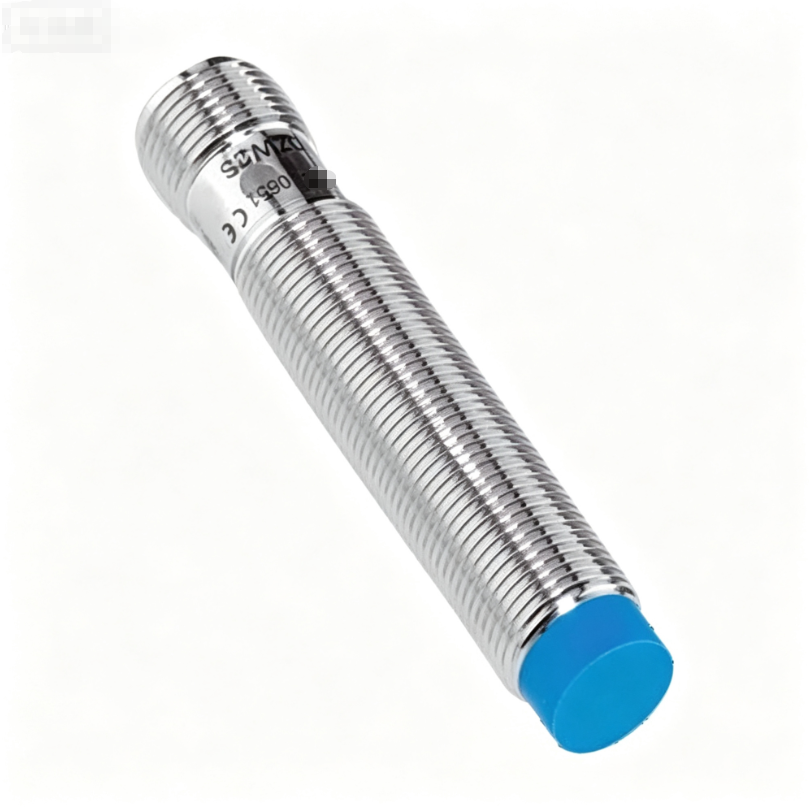

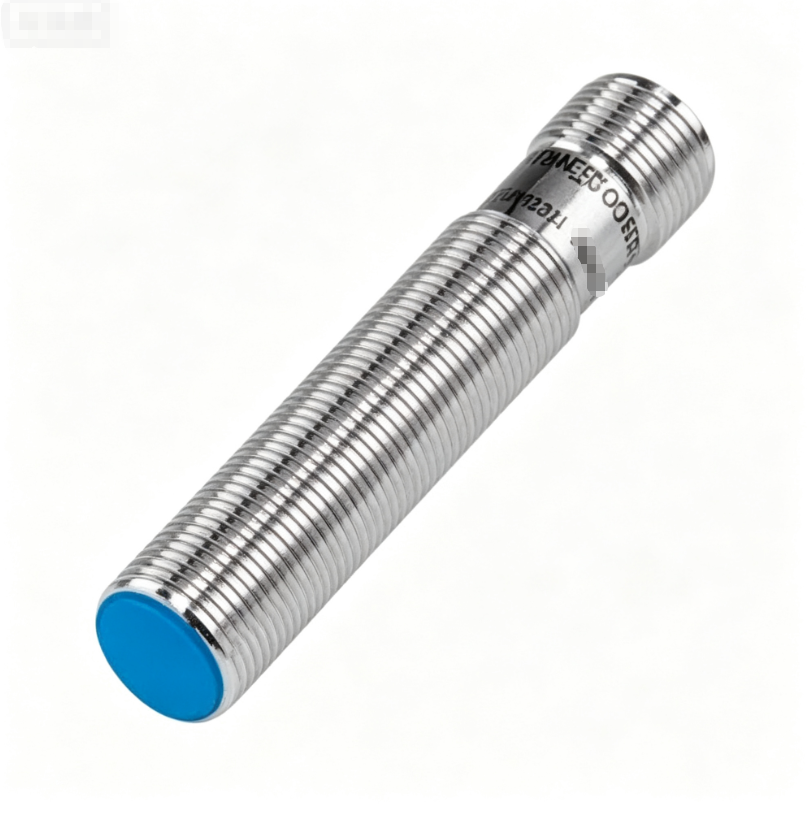

IME12-04BPPZC0S (Part No.1040765) is a M12 cylindrical inductive proximity sensor of SICK IME12 series. It adopts flush mounting design with diameter Ø12mm and rated sensing distance Sn=4 mm. It provides PNP NO (Normally Open) DC 3-wire output, operating voltage DC10~30 V, equipped with M12 4-pin male connector. The housing is nickel-plated brass with IP67 protection class. The sensor features short-circuit and reverse polarity protection, hysteresis 5~15% and repeat accuracy ≤2%. Package includes 2 pieces of mounting nuts. Designed for non-contact metal detection, widely used for machine tools, automation machinery and conveyor systems. Brand new original SICK inductive proximity sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | IME12-04BPPZC0S |
| Part No. | 1040765 |
| Product Type | Inductive Proximity Sensor |
| Series | IME12 / IME |
| Detection principle | Inductive metal detection |
| Size | M12 cylindrical housing, Ø12mm |
| Mounting type | Flush mounting |
| Rated sensing distance Sn | 4 mm |
| Safe sensing distance Sa | 3.24 mm |
| Output | PNP NO (Normally Open), DC 3-wire |
| Supply Voltage | DC10 ~ 30 V |
| Connector | M12 4-pin male connector |
| Housing Material | Nickel-plated brass |
| Protection Class | IP67 |
| Switching Frequency | 2000 Hz |
| Special Feature | Flush mount, short-circuit & reverse polarity protection, hysteresis 5~15%, repeat accuracy ≤2%, package includes 2pcs mounting nuts |
| Condition | New Original |
| Application | Metal detection, machine tools, automation machinery, conveyor systems |
| Net Weight | 0.043 KG |
| Gross Weight | 0.068 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
