PNP WTB2S-2P3230
Product Overview

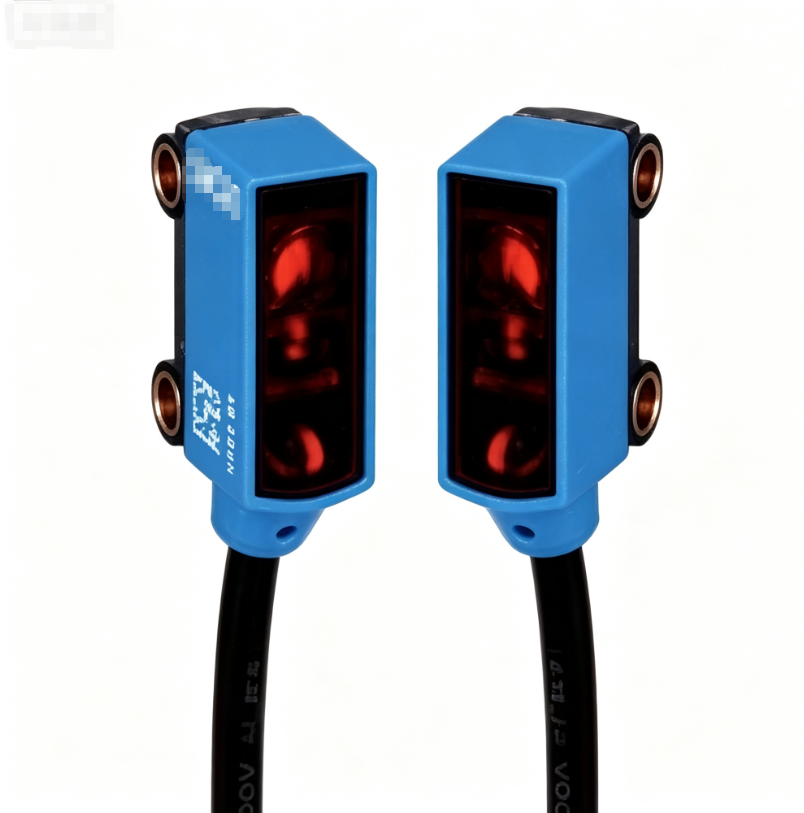

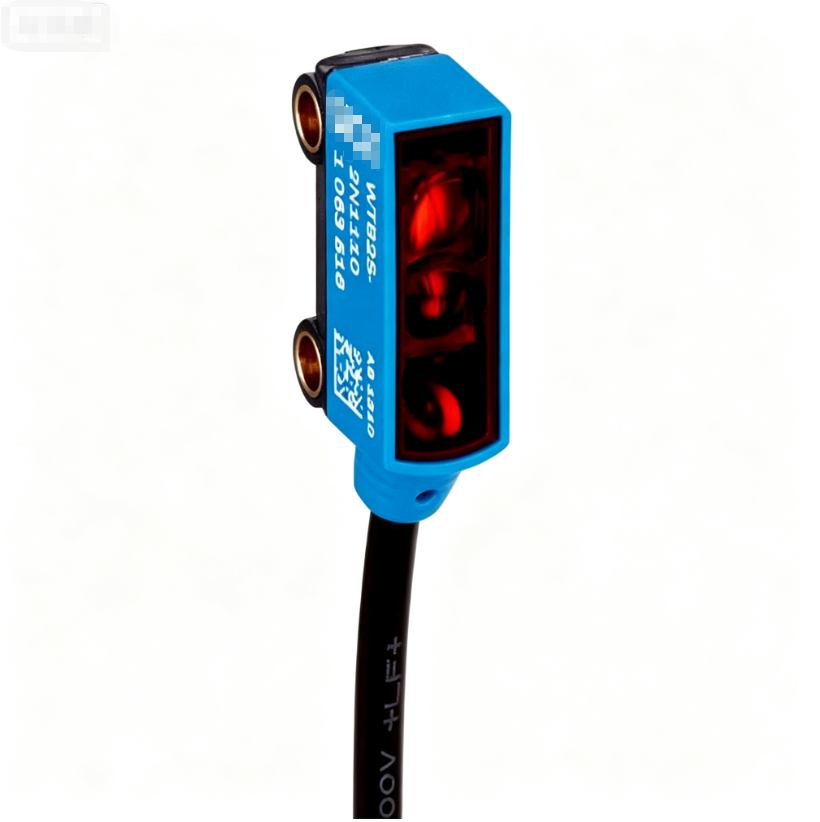

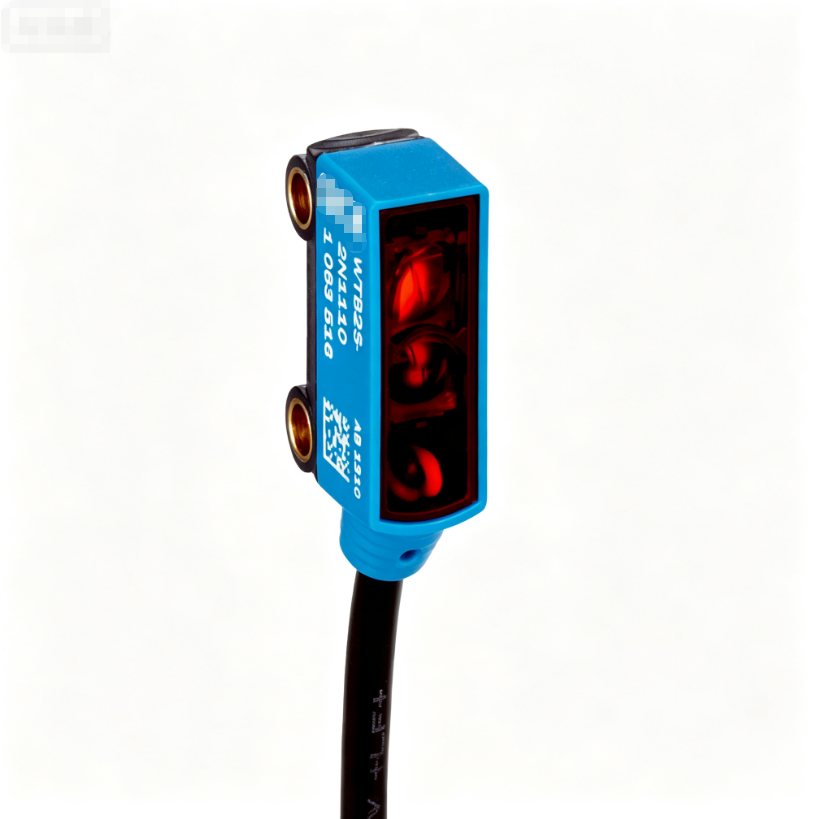

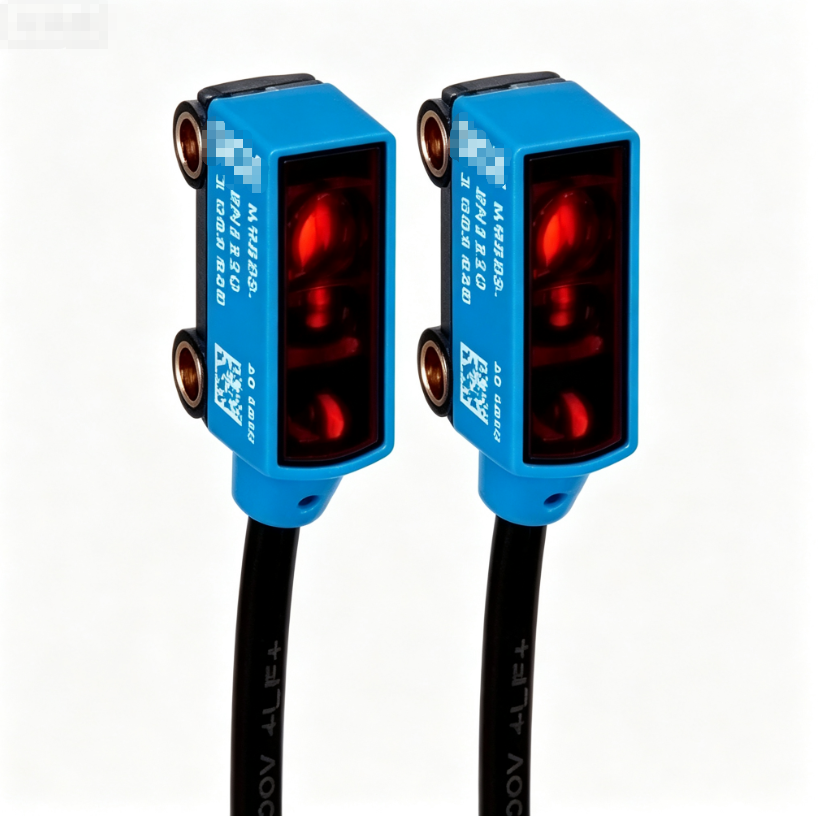

WTB2S-2P3230 (Part No.1063517) is an ultra-compact miniature square photoelectric sensor with background suppression from SICK W2 series. It adopts PinPoint LED light source, measuring range is 1~36 mm. It provides PNP output with Light/Dark switchable function, operating voltage DC10~30 V, equipped with M8 4-pin male connector and 200mm short cable. Compact square housing with IP67 protection class. It features clear PinPoint light spot and high switching reliability, suitable for detecting small or dark objects. Brand new original SICK photoelectric sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | WTB2S-2P3230 |
| Part No. | 1063517 |
| Product Type | Photoelectric Sensor |
| Series | W2 / WTB2S |
| Detection principle | Photoelectric sensor with background suppression |
| Light Source | PinPoint LED |
| Measuring Range | 1 ~ 36 mm |
| Output | PNP, Light/Dark switchable |
| Supply Voltage | DC10 ~ 30 V |
| Connection | M8 4-pin male connector, 200mm short cable |
| Housing | Ultra compact miniature square housing |
| Protection Class | IP67 |
| Special Feature | Background suppression, PinPoint clear light spot, high switching reliability, suitable for dark object detection, compact for narrow mounting space |
| Condition | New Original |
| Application | Small object detection, packaging machinery, battery assembly, automated production lines, conveyor systems |
| Net Weight | 0.018 KG |
| Gross Weight | 0.042 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
