WL8G-P2231
Product Overview

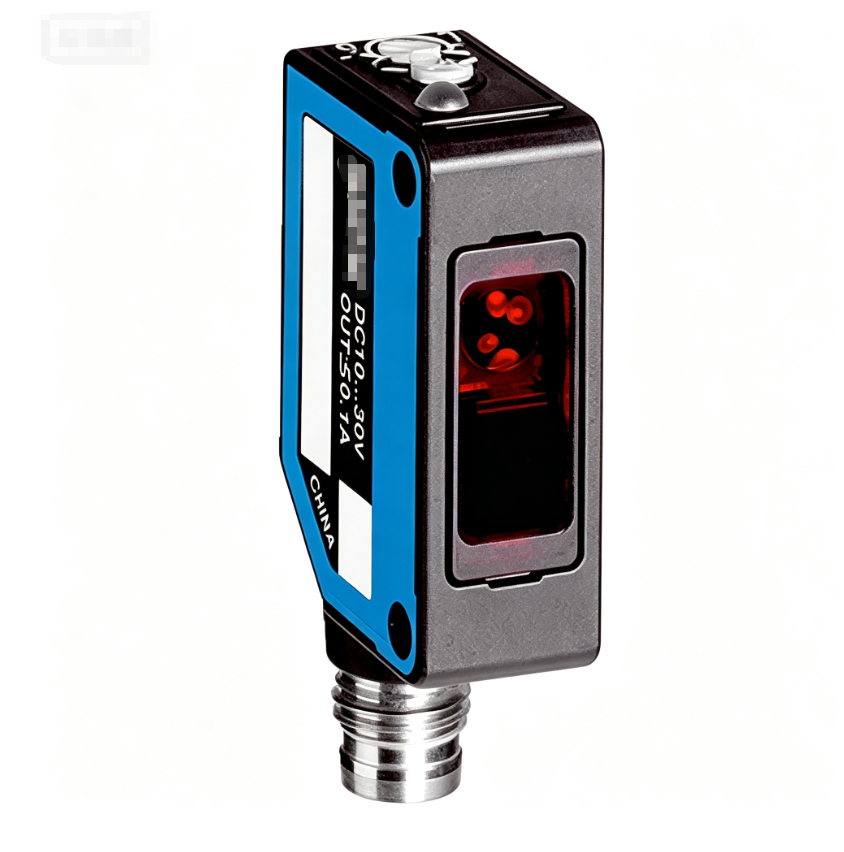

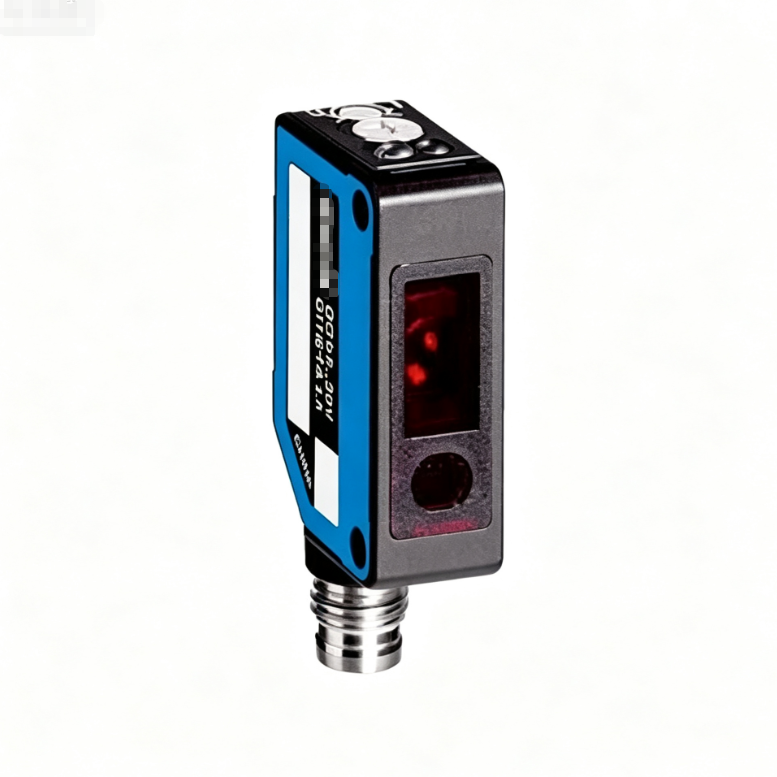

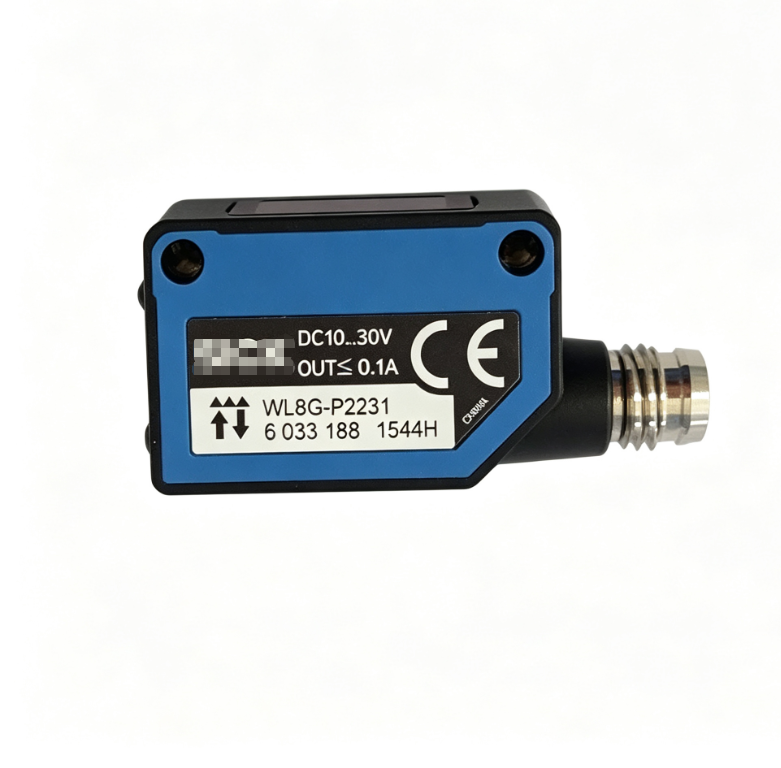

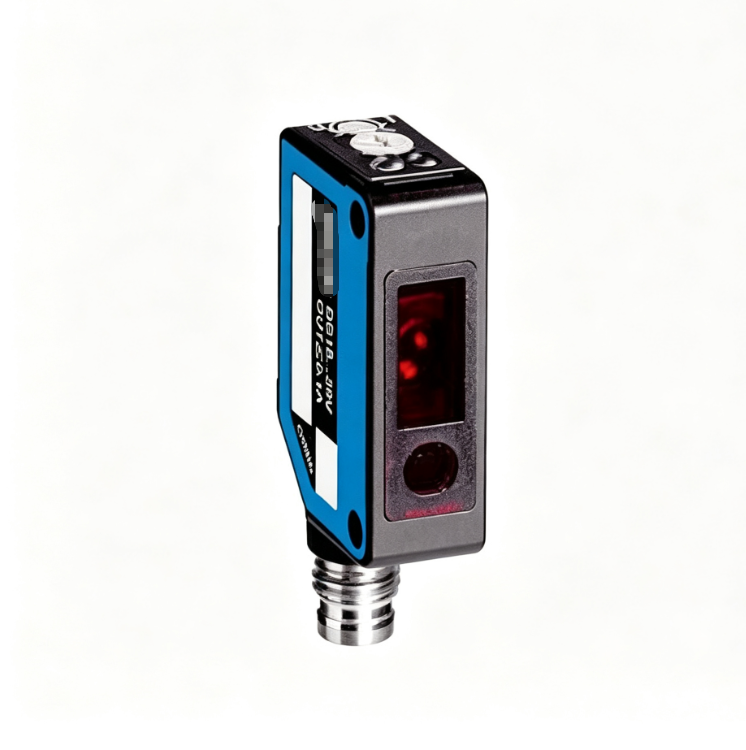

WL8G-P2231 (Part No.6033188) is a compact rectangular retroreflective photoelectric sensor with polarizing filter of SICK WL8G series. It uses 650nm visible red LED light source, measuring range reaches 0~3 meters with matching reflector. It comes with 270° potentiometer for sensitivity adjustment and provides PNP output with Light/Dark switchable function. It is fitted with M8 4-pin male connector. ABS plastic housing with IP67 protection class. With built-in short-circuit and reverse polarity protection and LED working indicator, it achieves reliable detection of transparent objects. Brand new original SICK photoelectric sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | WL8G-P2231 |
| Part No. | 6033188 |
| Product Type | Photoelectric Sensor |
| Series | WL8G / W8 |
| Detection principle | Retroreflective photoelectric sensor with polarizing filter |
| Light Source | Visible red LED, 650nm |
| Measuring Range | 0~3m (work with reflector) |
| Adjustment | 270° potentiometer for sensitivity setting |
| Output | PNP, Light/Dark switchable |
| Supply Voltage | DC10 ~ 30 V |
| Connector | M8 4-pin male connector |
| Housing Material | ABS plastic housing |
| Protection Class | IP67 |
| Switching Frequency | 1000 Hz |
| Special Feature | Polarization filter, good for transparent object detection, compact rectangular housing, short-circuit & reverse polarity protection, LED working indicator |
| Condition | New Original |
| Application | Transparent object detection, packaging machinery, conveyor systems, automated production lines |
| Net Weight | 0.010 KG |
| Gross Weight | 0.035 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
