GL6-N4211
Product Overview

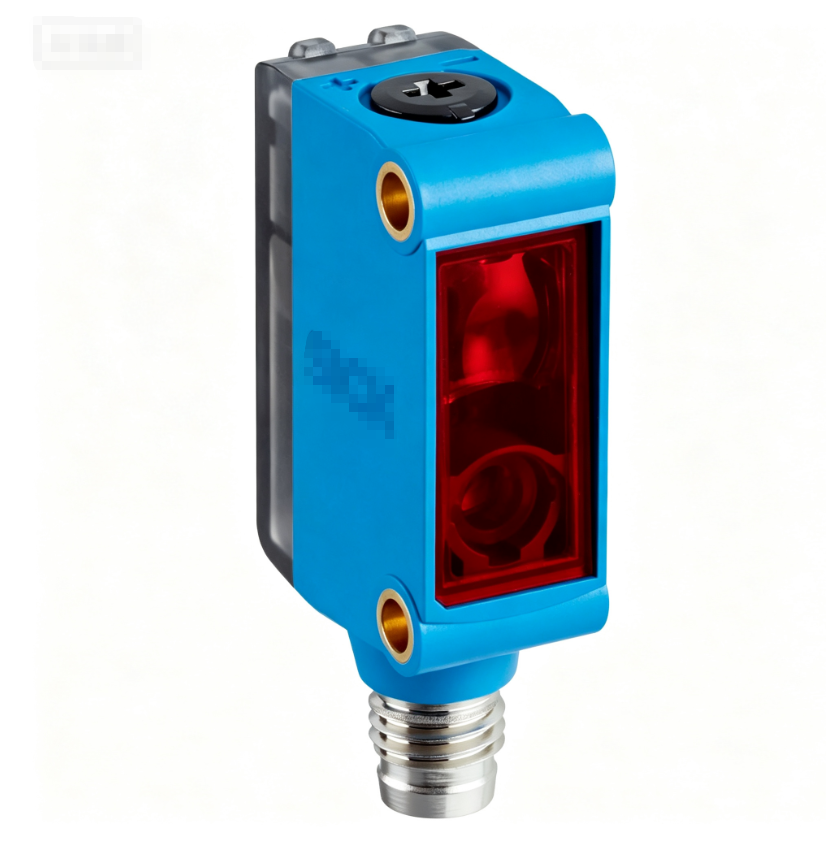

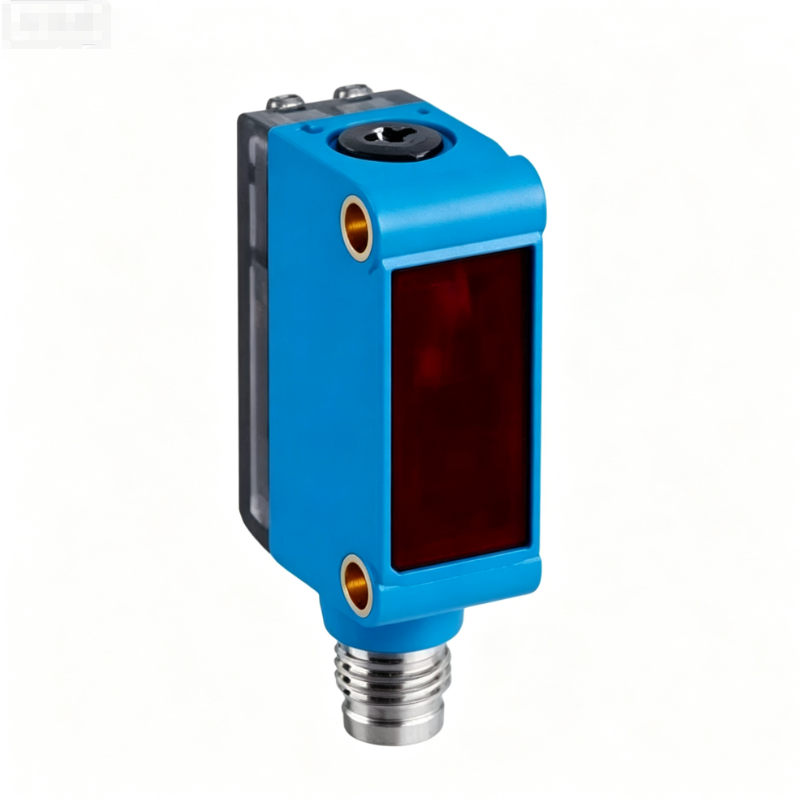

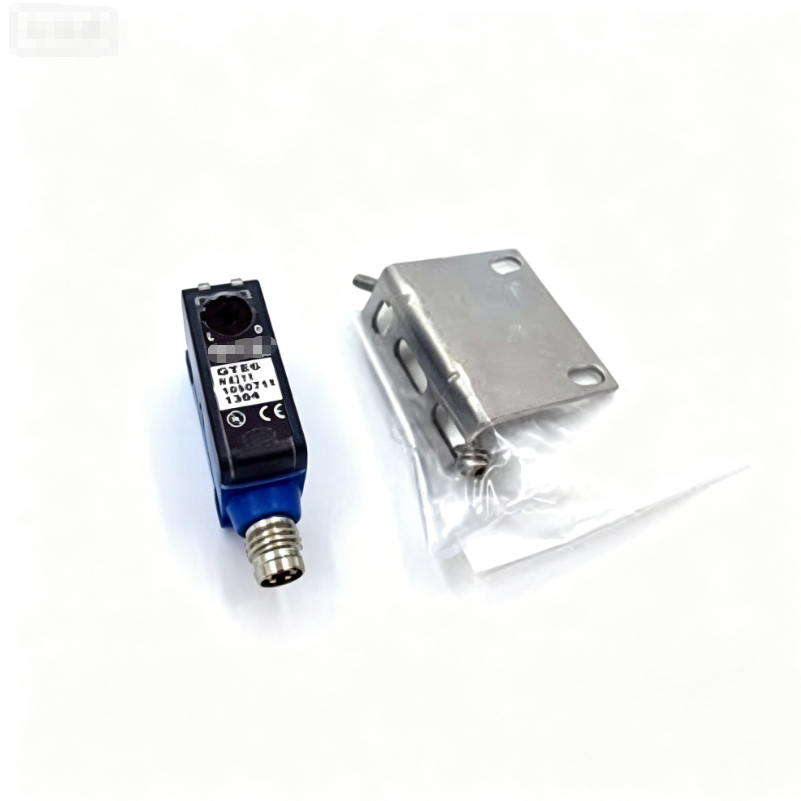

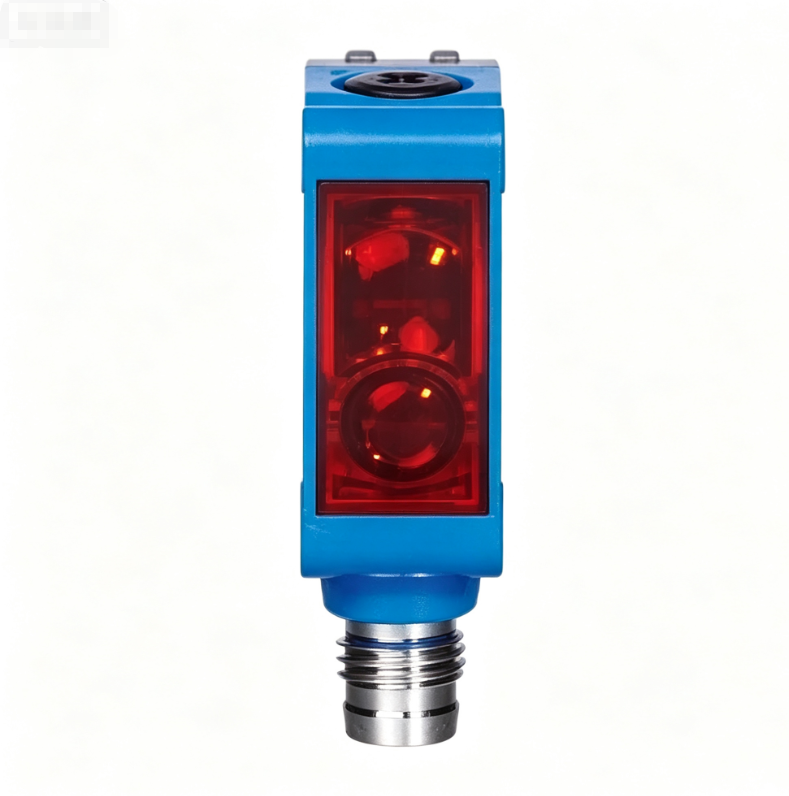

GL6-N4211 (Part No.1059631) is a compact square retroreflective photoelectric sensor from SICK GL6 series. It adopts PinPoint 650nm red LED light source and built-in polarizing filter. The maximum measuring range reaches 6 meters when matched with reflector. It has a 270° potentiometer for sensitivity adjustment and NPN output with Light/Dark switchable function. Operating voltage DC10~30 V, equipped with M8 4-pin male connector. ABS plastic housing with IP67 protection grade. Features short-circuit and reverse polarity protection and visible LED working indicator. Ideal for transparent object detection. Brand new original SICK photoelectric sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | GL6-N4211 |
| Part No. | 1059631 |
| Product Type | Photoelectric Sensor |
| Series | GL6 / G6 |
| Detection principle | Retroreflective photoelectric sensor, polarizing filter |
| Light Source | PinPoint red LED,650nm |
| Measuring Range | Max 6m (with reflector) |
| Adjustment | 270° potentiometer for sensitivity setting |
| Output | NPN, Light/Dark switchable |
| Supply Voltage | DC10 ~ 30 V |
| Connector | M8 4-pin male connector |
| Housing Material | ABS plastic housing |
| Protection Class | IP67 |
| Switching Frequency | 1000 Hz |
| Special Feature | Polarization filter, detect transparent objects, compact square housing, short-circuit & reverse polarity protection, visible LED indicator |
| Condition | New Original |
| Application | Transparent object detection, packaging machinery, conveyor systems, automated production lines |
| Net Weight | 0.012 KG |
| Gross Weight | 0.038 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
