MZT7 03VPS KP0 1070814
Product Overview

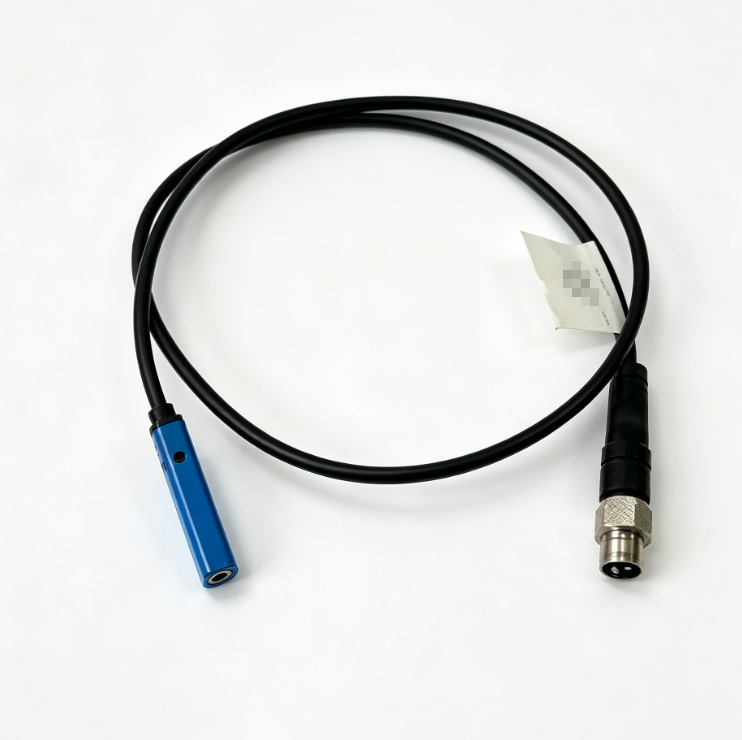

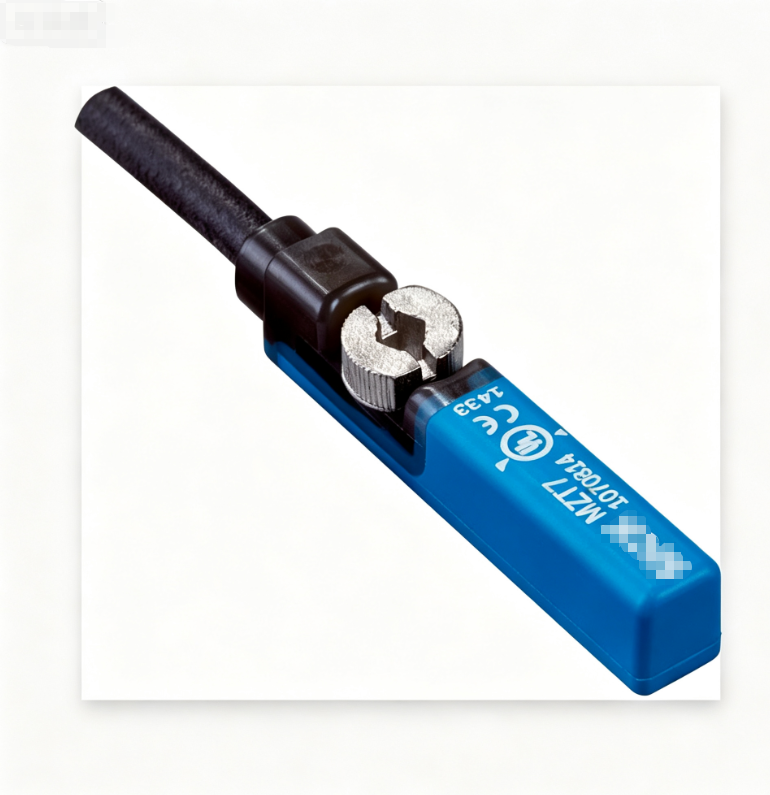

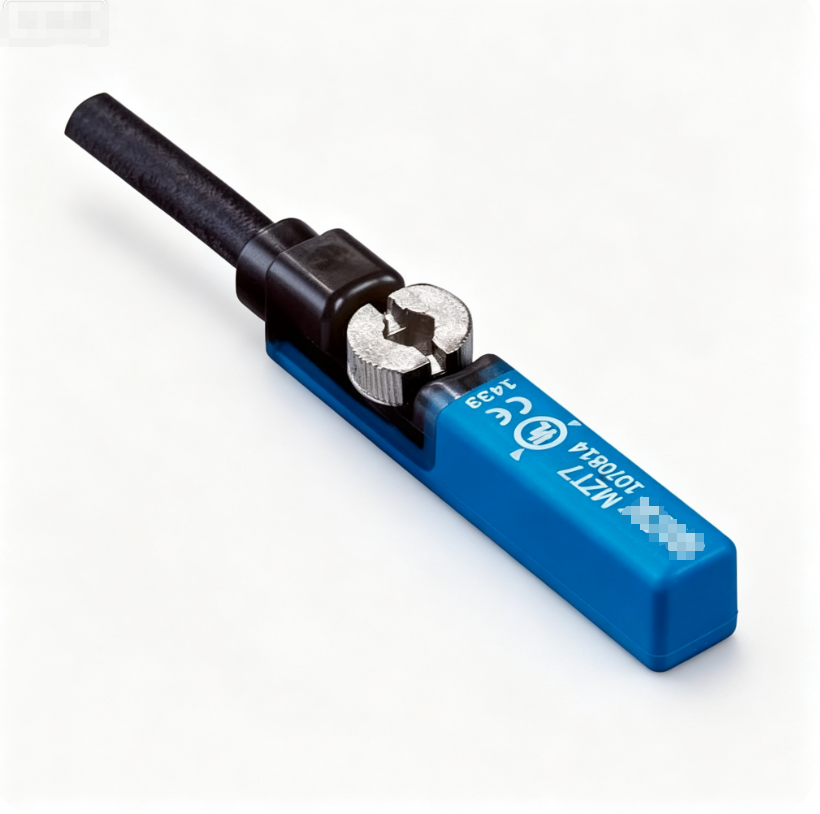

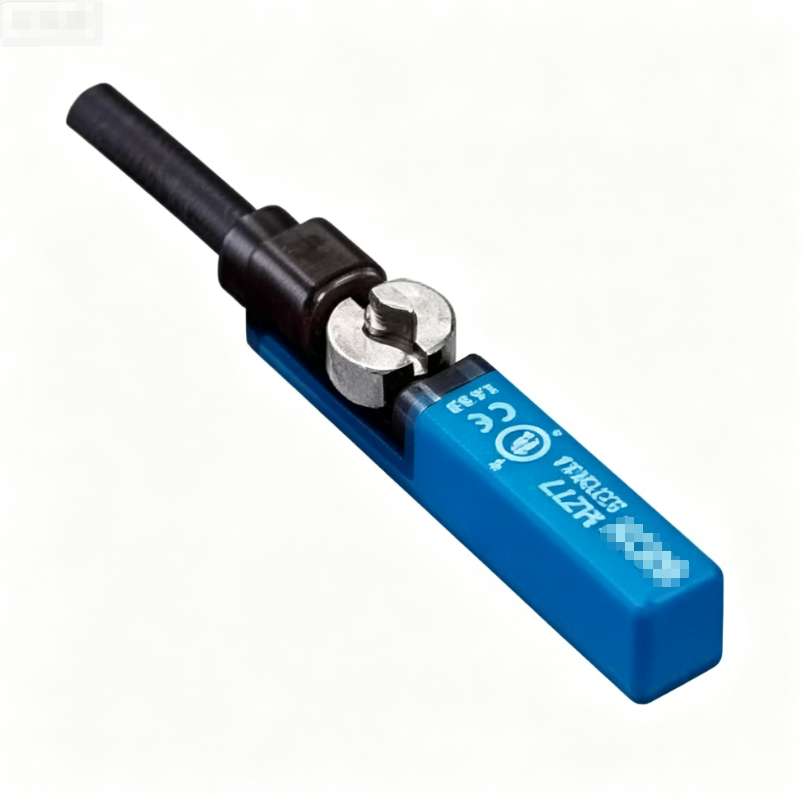

MZT7-03VPS-KP0 (Part No.1070814) is a T-slot mounting magnetostrictive analog cylinder position sensor from SICK MZT7 series. It is used for continuous piston position measurement of pneumatic cylinders, with measuring range of 30 mm. It supports Teach-in calibration and selectable analog output of 0~10V or 4~20mA. Operating voltage DC15~30 V, equipped with M8 4-pin male connector. The plastic housing adopts T-slot groove installation design with IP67 protection class. It features high linearity, built-in reverse polarity protection and LED working indicator. Compatible with round, tie-rod and profile type pneumatic cylinders. Brand new original SICK cylinder position sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | MZT7-03VPS-KP0 |
| Part No. | 1070814 |
| Product Type | Cylinder Position Sensor |
| Series | MZT7 |
| Detection principle | Magnetostrictive analog position measurement for round, tie-rod and profile pneumatic cylinder piston |
| Measuring Range | 30 mm |
| Adjustment | Teach-in function |
| Output | Analog signal: selectable 0~10V /4~20mA, DC 4-wire |
| Supply Voltage | DC15 ~ 30 V |
| Connection | M8 4-pin male connector |
| Housing | T-slot groove mounting plastic housing |
| Protection Class | IP67 |
| Special Feature | T-slot installation, teach-in calibration, high linearity, reverse polarity protection, LED working indicator, compatible with multiple types of air cylinders |
| Condition | New Original |
| Application | Pneumatic cylinder piston continuous position measurement, packaging machinery, conveyor systems, automated production lines |
| Net Weight | 0.038 KG |
| Gross Weight | 0.065 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
