1060810 GL6G-P4212
Product Overview

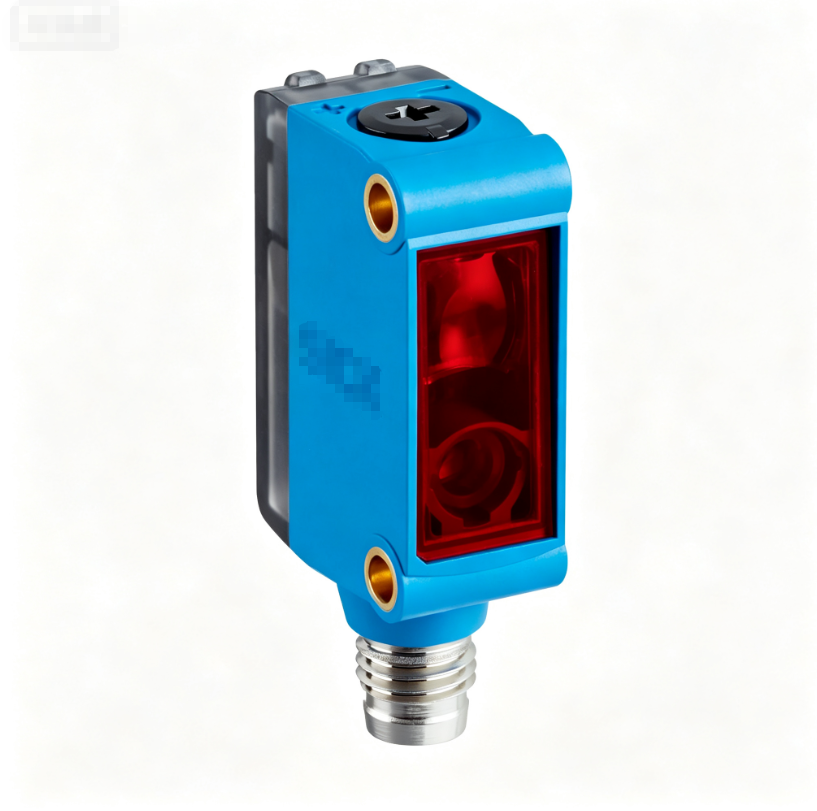

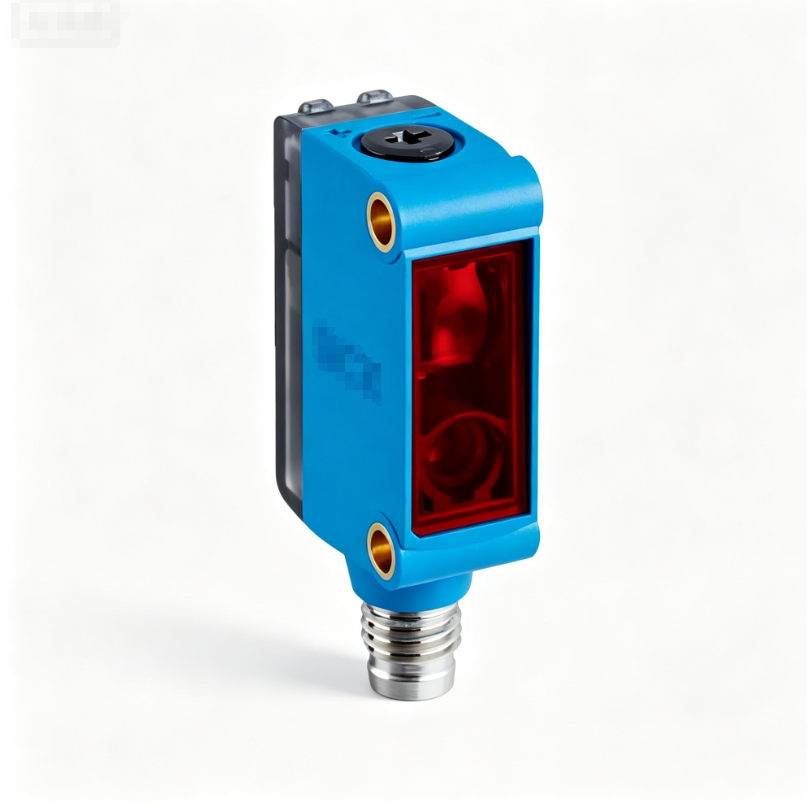

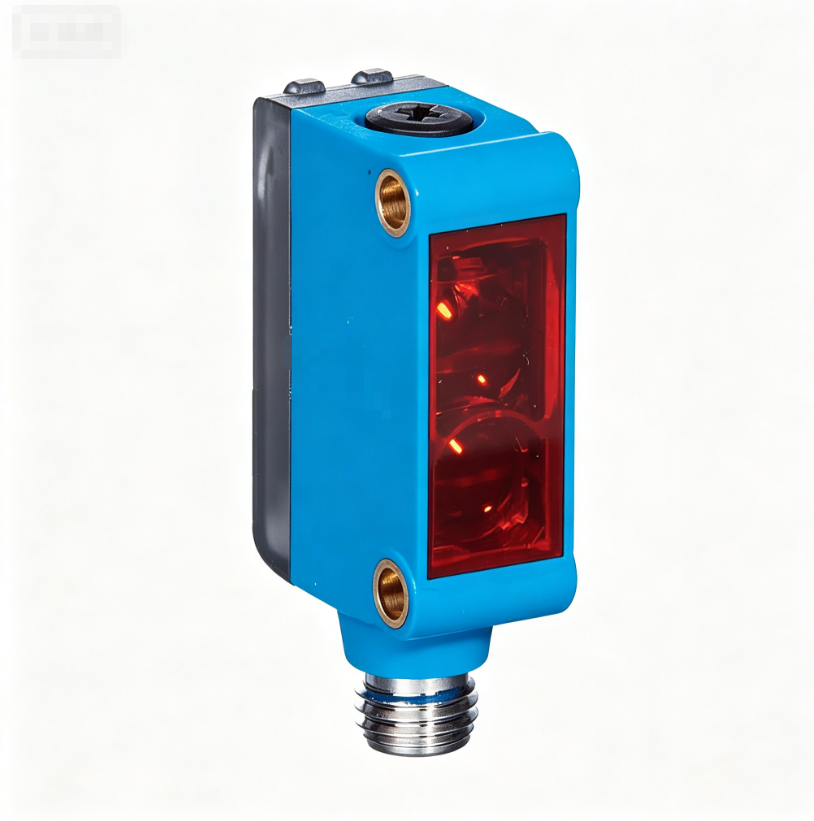

GL6G-P4212 (Part No.1060810) is a compact square retroreflective photoelectric sensor of SICK GL6G series. It adopts PinPoint 650nm visible red LED and built-in polarizing filter. The maximum measuring range can reach 6 meters when used with matched reflector. It is equipped with 270° potentiometer for sensitivity fine adjustment, PNP Light/Dark switchable DC 3-wire output, operating voltage DC10~30 V, fitted with M8 4-pin male connector. ABS+PC plastic housing with IP67 protection class. Switching frequency 1000Hz and response time less than 625µs. Built-in short-circuit and reverse polarity protection, together with visible LED status indicator. It is designed for reliable transparent object detection. Brand new original SICK photoelectric sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | GL6G-P4212 |
| Part No. | 1060810 |
| Product Type | Photoelectric Sensor |
| Series | GL6G / G6 |
| Detection principle | Retroreflective photoelectric sensor, built-in polarizing filter |
| Light Source | PinPoint red LED, 650nm visible red light |
| Measuring Range | Max 6 m (matched with reflector) |
| Adjustment | 270° potentiometer for sensitivity fine adjustment |
| Output | PNP, Light/Dark switchable, DC 3-wire |
| Supply Voltage | DC10 ~ 30 V |
| Connector | M8 4-pin male connector |
| Housing Material | ABS+PC plastic housing |
| Protection Class | IP67 |
| Switching Frequency | 1000 Hz |
| Special Feature | Polarization filter, reliable transparent object detection, compact square housing, short-circuit & reverse polarity protection, visible LED status indicator, response time ＜625µs |
| Condition | New Original |
| Application | Transparent object detection, packaging machinery, conveyor systems, automated production lines |
| Net Weight | 0.020 KG |
| Gross Weight | 0.040 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
