CQ35-25NPP-KW1 6020478

属性名	属性值
Brand	SICK
Model	CQ35-25NPP-KW1
Part No.	6020478
Series	CQ
Sensor type	Capacitive proximity sensor
Sensing distance	25 mm
Installation	Non-flush mount
Output type	PNP, NO+NC complementary
Wiring	DC 4-wire
Connection	2m 4-core PVC cable
Supply voltage	10–36 V DC
Max switching current	200 mA
Switching frequency	50 Hz
IP rating	IP67
Housing material	PC plastic
Operating temperature	-25 ℃ ~ +75 ℃
Feature	Sensitivity adjustable by potentiometer
Weight(net)	0.14 kg
Weight(gr

INQUIRY

Product Details

Product Tags

Product Overview

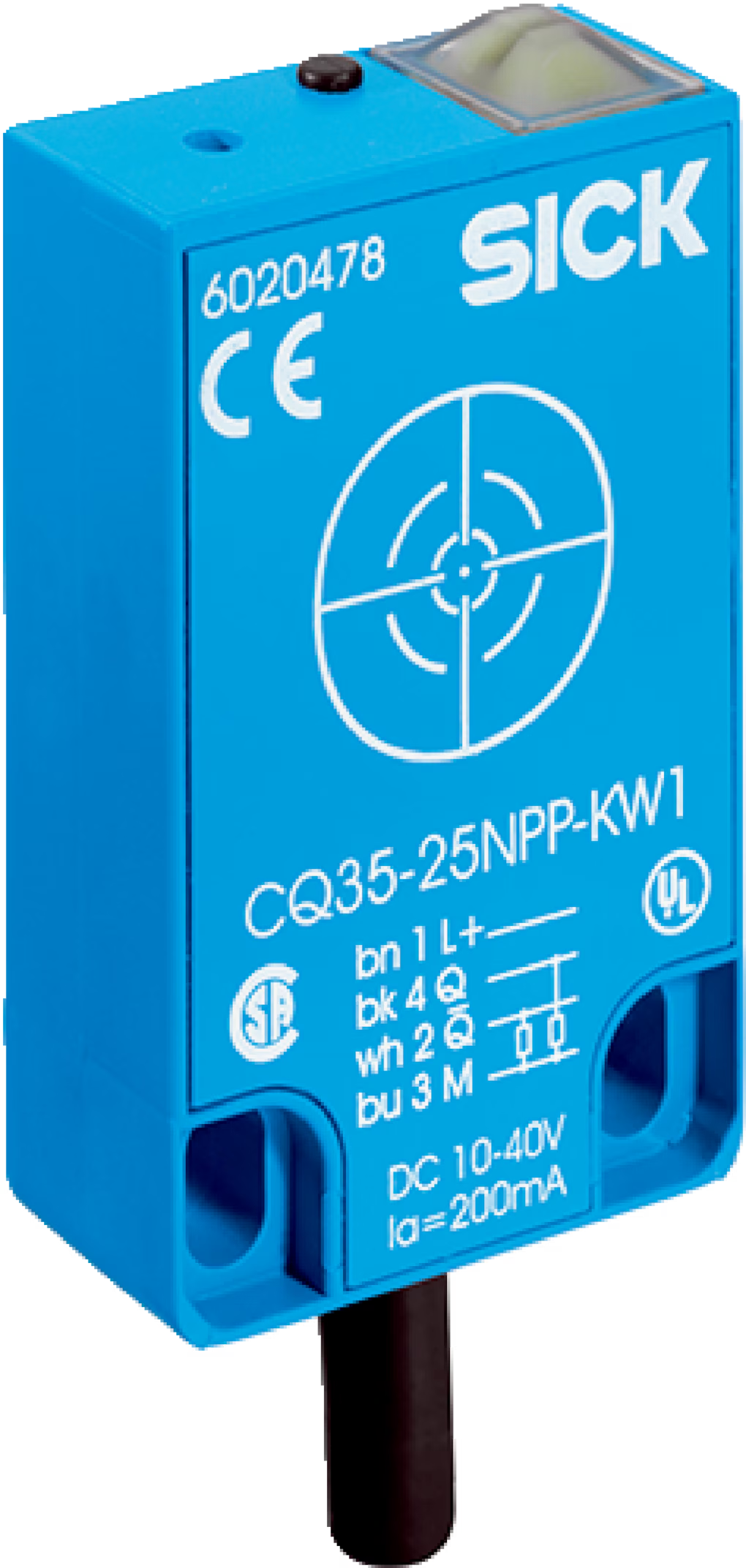

New original SICK CQ35-25NPP-KW1 capacitive proximity sensor, part number 6020478, CQ series rectangular non-flush mount type. It features 25 mm rated sensing distance, complementary PNP NO+NC output, 10–36 V DC power supply, max 200 mA switching current and 50 Hz switching frequency. Equipped with 2 meters 4-core PVC cable, IP67 protection grade, PC plastic housing, adjustable sensitivity by potentiometer. Wide working temperature from -25℃ to +75℃, stable performance for industrial automation. Suitable for material level detection, granule and liquid monitoring on conveyor and packaging lines. We supply genuine industrial sensors with fast delivery and reliable after-sales service.

属性名	属性值
Brand	SICK
Model	CQ35-25NPP-KW1
Part No.	6020478
Series	CQ
Sensor type	Capacitive proximity sensor
Sensing distance	25 mm
Installation	Non-flush mount
Output type	PNP, NO+NC complementary
Wiring	DC 4-wire
Connection	2m 4-core PVC cable
Supply voltage	10–36 V DC
Max switching current	200 mA
Switching frequency	50 Hz
IP rating	IP67
Housing material	PC plastic
Operating temperature	-25 ℃ ~ +75 ℃
Feature	Sensitivity adjustable by potentiometer
Weight(net)	0.14 kg
Weight(gross)	0.20 kg
Certificate	RoHS
