CQF16-06ENSEP1 6068628
Product Overview

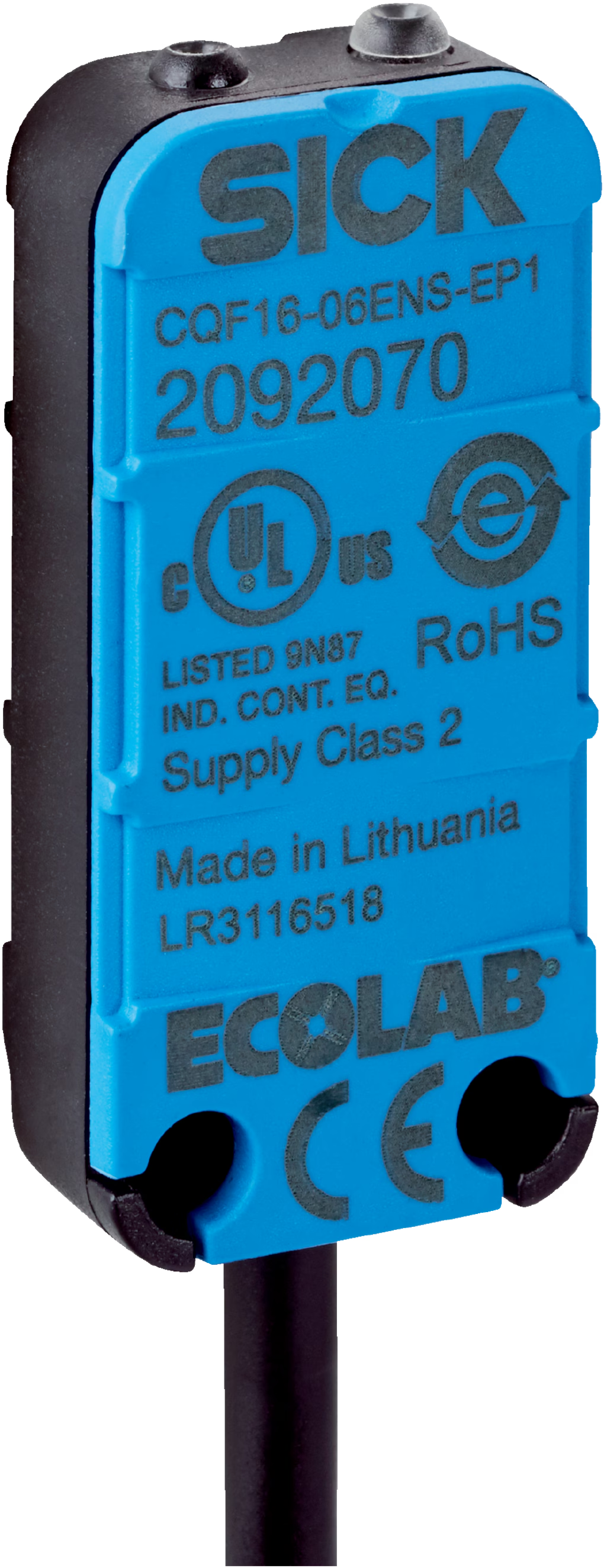

New original SICK CQF16-06ENSEP1 capacitive level sensor, PN 6068628, CQF series compact rectangular sensor. Sensing range 0.5~6mm, NPN NO output, 10-30VDC supply. Equipped with 0.3m cable and M8 4-pin male connector, IP67/IP68/IP69K protection. It supports teach-in setting and can detect water-based liquid, suppress foam and residue interference. Working temperature -25℃ ~ +80℃. Widely used for liquid level monitoring in food, beverage and pharmaceutical automation lines. We supply genuine SICK sensors with fast delivery and reliable after-sales service.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Model | CQF16-06ENSEP1 |
| Part No. | 6068628 |
| Series | CQF |
| Sensor type | Capacitive level sensor |
| Sensing distance | 0.5 ~ 6 mm |
| Installation | Flush / Non-flush mount |
| Output type | NPN, NO |
| Wiring | DC 4-wire |
| Connection | M8 male, 4-pin, 0.3m cable |
| Supply voltage | 10–30 V DC |
| Max switching current | 100 mA |
| Switching frequency | 10 Hz |
| IP rating | IP67, IP68, IP69K |
| Housing material | Plastic |
| Operating temperature | -25 ℃ ~ +80 ℃ |
| Feature | Teach-in function, liquid detection, anti-foam interference |
| Weight(net) | 0.06 kg |
| Weight(gross) | 0.12 kg |
| Certificate | RoHS, cULus, Ecolab |
