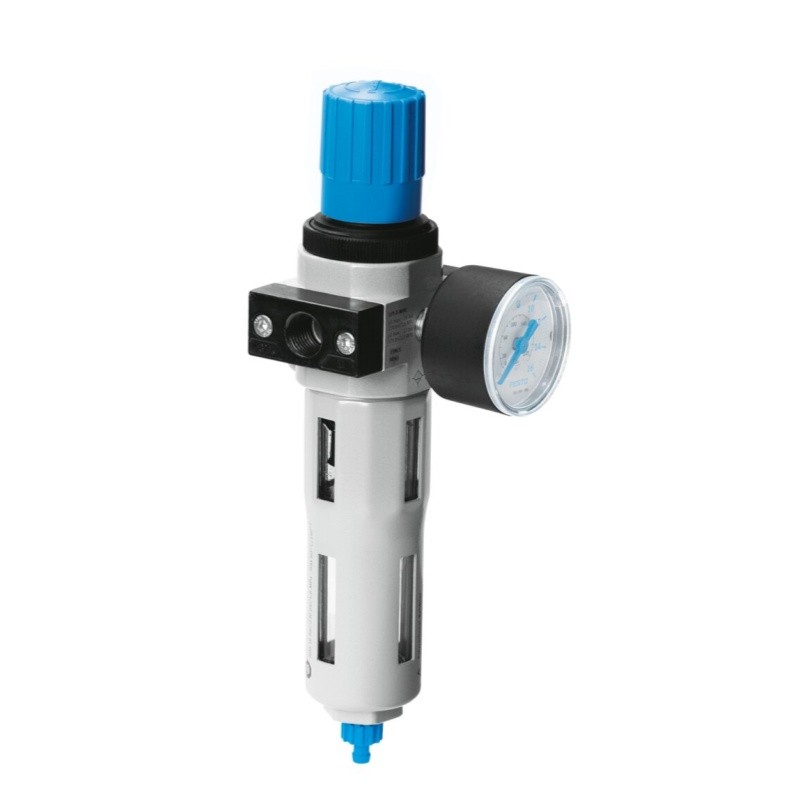

LFR-1/4-D-7-MINI-MPA
Product Overview
LFR-1/4-D-7-MINI-MPA (Part No.162703) is Festo LFR-D series MINI metal filter regulator with MPA modular connection plate. It integrates filtration and pressure regulation. 40μm filter removes solid particles, manual rotary condensate drain, lockable rotary knob for pressure adjustment, pressure adjustable from 0.5~7 bar. MPA modular design allows quick assembly with other LFR / LF / LR / LOE air service units, flexible combination for compressed air preparation system.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | LFR-1/4-D-7-MINI-MPA |
| Part No. | 162703 |
| Product Type | Pneumatic Filter Regulator / Air service unit |
| Series | LFR-D |
| Size | MINI |
| Pneumatic Connection | G1/4 |
| Filtration Grade | 40 μm |
| Pressure Regulation Range | 0.5 ~ 7 bar |
| Max. Inlet Pressure | 16 bar |
| Standard Nominal Flow | 1500 l/min |
| Max. Pressure Hysteresis | 0.2 bar |
| Condensate Drain | Manual rotary drain |
| Adjustment Knob | Lockable rotary knob |
| Max. condensate volume | 22 ml |
| Mounting | MPA modular plate connection |
| Operating Medium | Compressed air ISO 8573-1:2010 [-:9:-], inert gas |
| Ambient Temperature | -10 ~ +60 ℃ |
| Bowl Material | Metal bowl with protective guard |
| Filter Element | PE |
| Seal Material | NBR |
| CRC Corrosion Class | CRC2 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Net Weight | 0.460 kg |
| Gross Weight | 0.52 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Pneumatic air source treatment, modular air service unit, automation assembly, handling machinery |
