PEV-1/4-B-OD
Product Overview

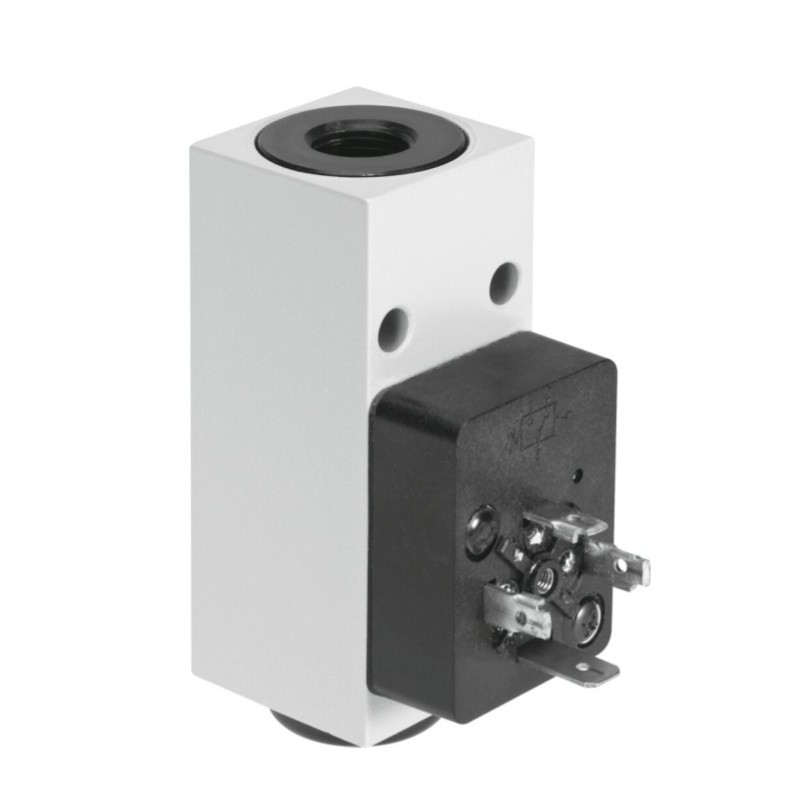

PEV-1/4-B-OD (Part No.175250) is Festo PEV series electromechanical pressure switch. It uses diaphragm structure to detect compressed air relative pressure, triggers changeover electrical contact when pressure reaches set threshold. Switching point adjustable within 1~12 bar. OD version means without electrical socket, socket needs separate ordering. Equipped with yellow LED status indicator, through-hole mounting, any installation position, IP65 protection after socket assembled. Used for pressure monitoring and alarm signal output for pneumatic circuits.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | PEV-1/4-B-OD |
| Part No. | 175250 |
| Product Type | Pneumatic Electromechanical Pressure Switch |
| Series | PEV |
| Pneumatic Connection | G1/4 |
| Switching Point Range | 1 ~ 12 bar |
| Switch Element | Changeover switch |
| Max Switching Frequency | 3 Hz |
| Max Voltage AC | 250 V AC |
| Max Voltage DC | 125 V DC |
| Max Output Current | 5 A |
| Electrical Interface | DIN43650 Type A, without socket(OD) |
| Mounting | Through-hole mounting, any mounting position |
| Protection Class | IP65 (with fitted socket) |
| Operating Medium | Filtered compressed air (≥40μm), oiled / unoiled |
| Ambient / Medium Temp | -20 ~ +80 ℃ |
| Housing Material | Die-cast aluminium |
| Contact Material | Silver |
| Seal Material | NBR |
| Indicator | Yellow LED status display |
| CRC Corrosion Class | CRC2 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Net Weight | 0.194 kg |
| Gross Weight | 0.25 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Pneumatic system pressure monitoring, pressure feedback, automation safety alarm, air source supervision |
