MF-T0608P141ZZZ
Product Details

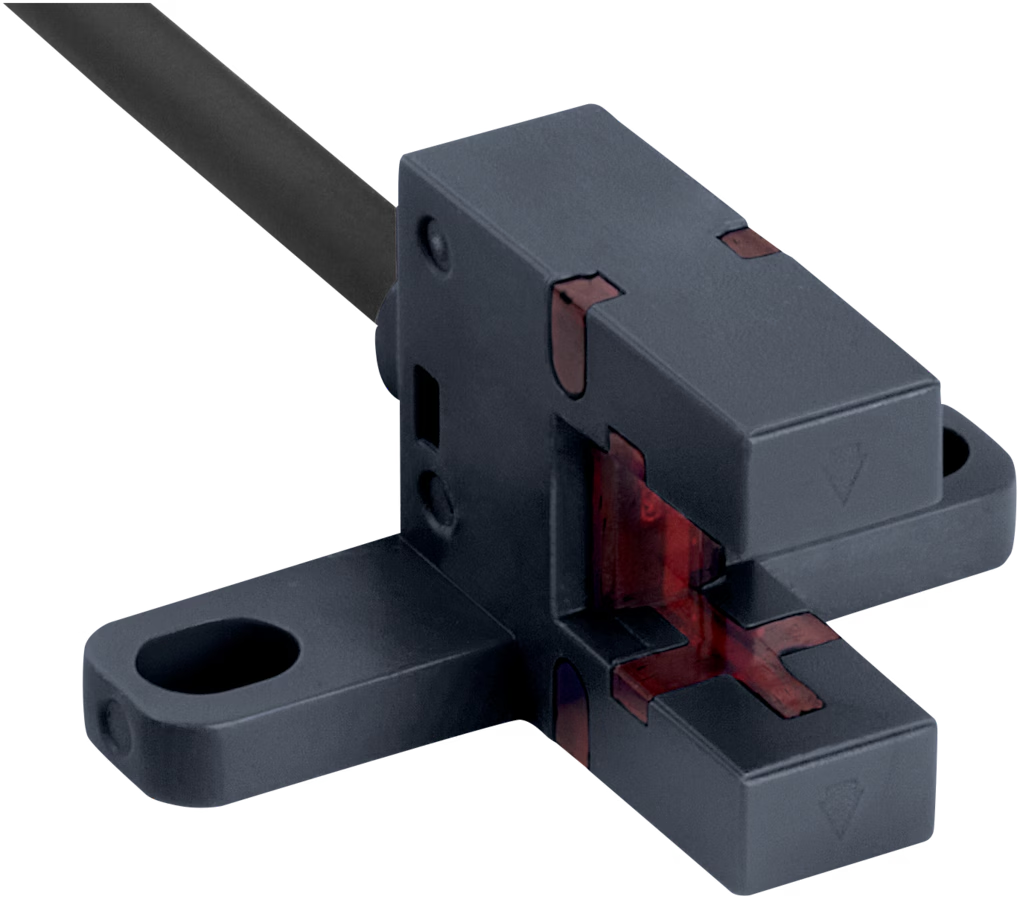

The SICK MF-T0608P141ZZZ is a compact micro fork photoelectric sensor from the MF series, brand new and original. Designed with a 6 mm slot width and 8 mm fork depth, it adopts infrared LED light source and runs on 5–30 V DC power supply, with switchable Light-ON / Dark-ON PNP output. It reaches IP67 protection for dust and moisture resistance.
Made of durable PBT plastic, this slot-type through-beam sensor has a small footprint for installation in tight spaces. It connects via a 2-meter 4-wire PVC cable for simple wiring. This sensor excels at high-speed counting, label edge detection and tiny object identification.
It is commonly integrated into packaging machines and automated production lines. Every unit undergoes careful quality inspection before shipment and holds CE certification. We provide genuine SICK sensors with an MOQ of 1 piece and reliable global delivery for your factory automation projects.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | MF-T0608P141ZZZ |
| Product Name | Fork Photoelectric Sensor |
| Product Type | Micro Fork Sensor |
| Series | MF Series |
| Working Principle | Through-beam fork type |
| Light Source | Infrared LED |
| Housing Material | PBT Plastic |
| Shape | Fork / Slot type |
| Fork Size | Slot width 6 mm, Fork depth 8 mm |
| Dimension(W×H×D) | 26mm × 19.2mm ×13.65mm |
| Connection | 4-wire 2m PVC cable |
| Output Type | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 5 … 30 V DC |
| IP Rating | IP67 |
| Ambient Temperature | -25℃ ~ +55℃ |
| Net Weight | 0.09 kg |
| Gross Weight | 0.14 kg |
| Origin | Germany |
| Condition | Brand New Original |
| Application | Label detection, high-speed counting, packaging machinery, small object detection |
| Certificate | CE |
| MOQ | 1 Piece |
