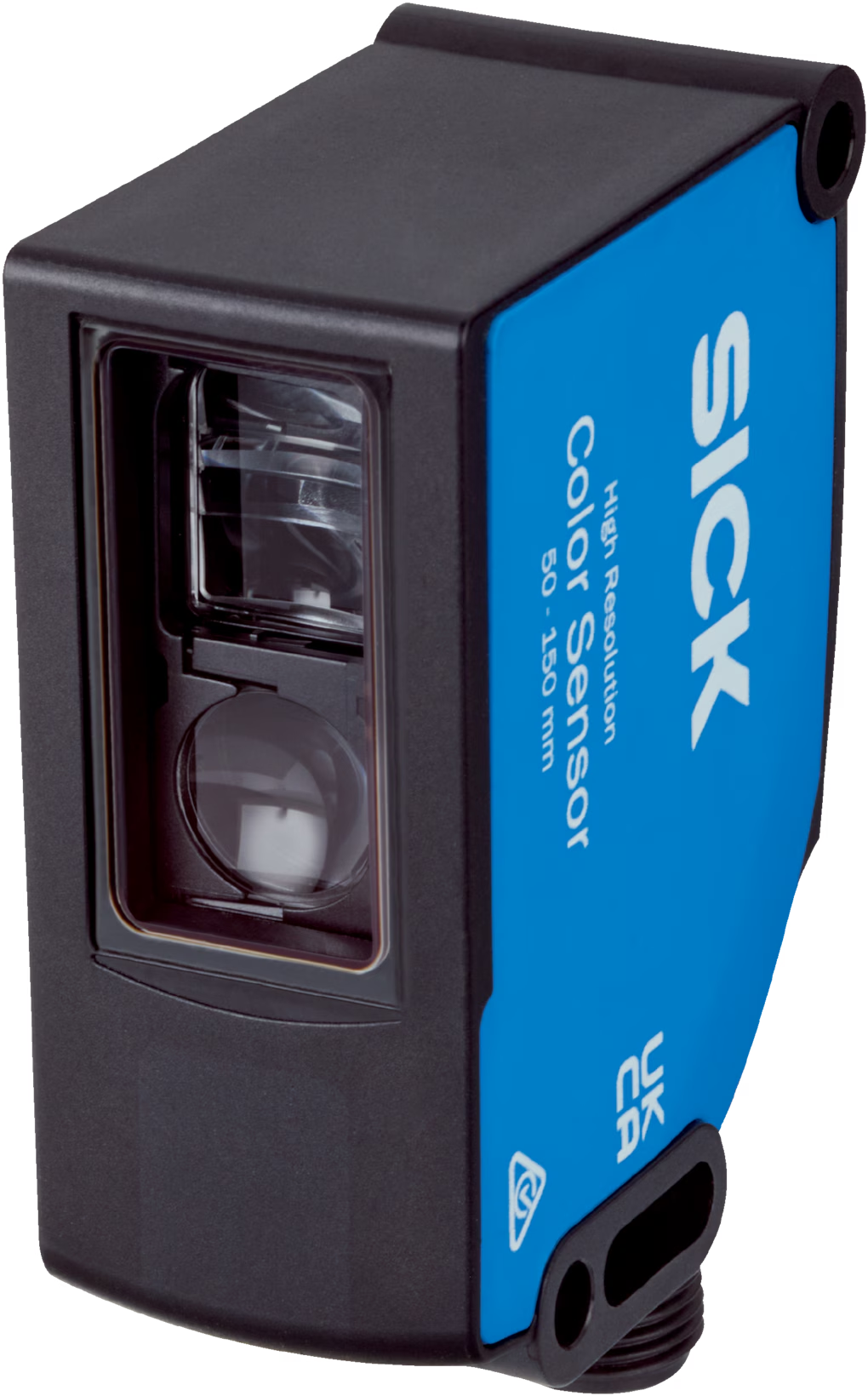

CSS-WBG4C4118AA10Z 1113521
Product Overview
CSS-WBG4C4118AA10Z, Order No. 1113521, belongs to SICK CSS High Resolution color sensor series. It adopts RGB LED light source and features a small light spot of Ø3.5 mm to Ø6.5 mm, suitable for detecting small target areas. The sensing distance is 50 mm to 150 mm. It supports single-value and multi-value teach-in, two color working modes: Color mode and Color + Illumination mode. It comes with 4 hardware push-pull PNP/NPN switching outputs and supports 24 virtual switching outputs via IO-Link. 4 job banks can be stored locally, parameters can be uploaded and downloaded through IO-Link and configured by SOPAS software. Built-in TFT color display shows RGB and Lab color data and similarity. M12 8-pin male plug connection, IP67 protection, reverse polarity and short-circuit protection. New and original genuine SICK sensor.
| Attribute | Value |
|---|---|
| Brand | SICK |
| Model | CSS-WBG4C4118AA10Z |
| Order No. | 1113521 |
| Series | CSS High Resolution |
| Product Type | Color Sensor |
| Sensing Distance | 50 mm ~ 150 mm |
| Light Source | RGB LED |
| Spot Size | Ø3.5 mm ~ Ø6.5 mm |
| Connection | M12 8-pin male connector |
| Interface | IO-Link |
| Supply Voltage | 10.8 ~ 28.8 V DC |
| Output Type | 4 x PNP/NPN Push-pull hardware outputs + 24 virtual outputs via IO-Link |
| Response Time | 120 µs |
| Housing Protection | IP67 |
| Operating Temperature | -20°C ~ +55°C |
| Dimension | 26 mm × 62 mm × 47.5 mm |
| Net Weight | 70.00 g |
| Housing Material | VISTAL plastic, optics glass |
| Condition | New Original |
