527464 SDE5-D10-O-Q6-P-M8
Product Overview
Item No: 527464 Model: SDE5-D10-O-Q6-P-M8 Brand: Festo Type: Electronic Pressure Sensor

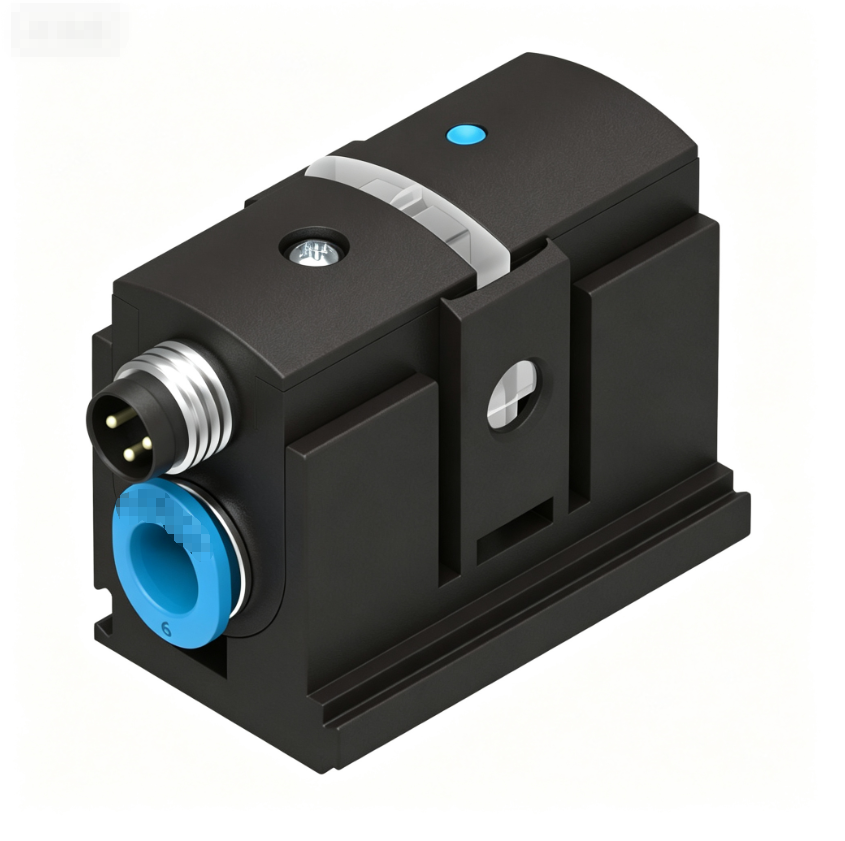

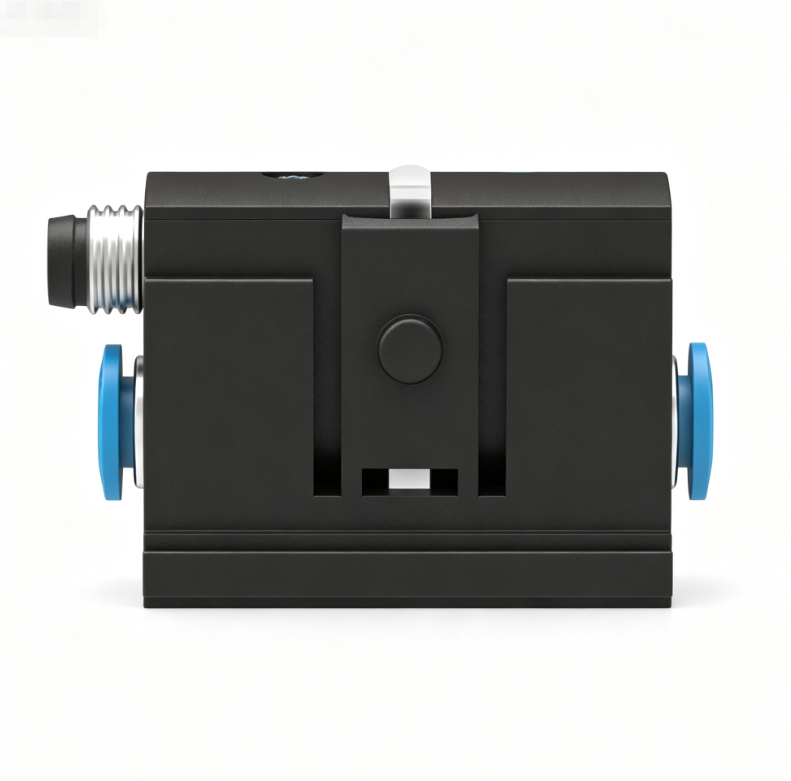

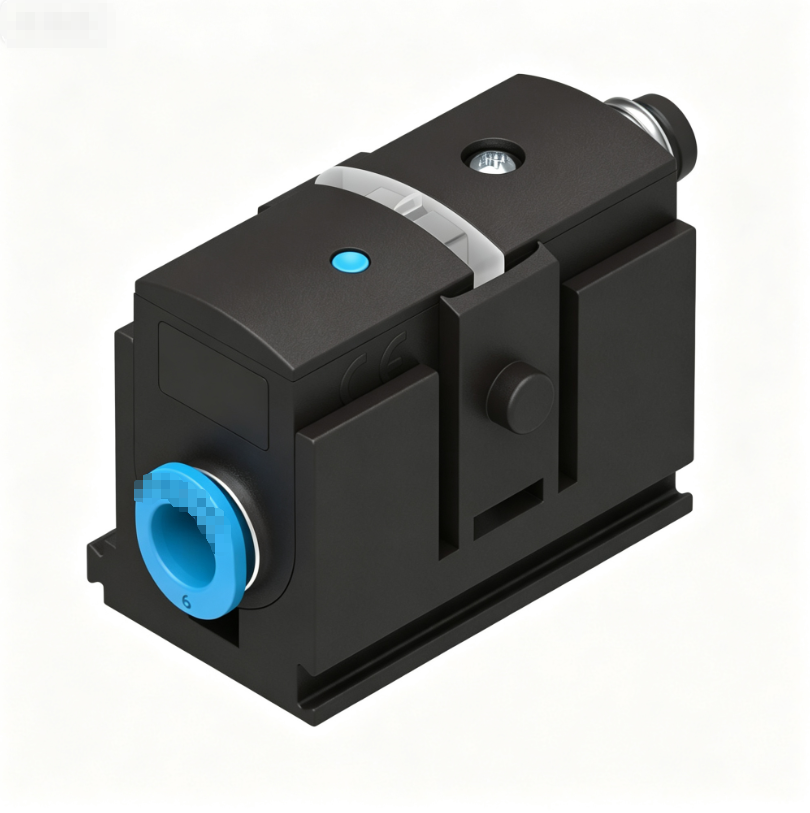

Festo SDE5-D10-O-Q6-P-M8 electronic pressure sensor (527464) belongs to SDE5 compact pressure sensor series. It adopts piezoresistive element to measure relative pressure within 0~10 bar. The O suffix means fixed hysteresis with one teach-in point and normally open contact; P stands for PNP switching output. Q6 is quick push-in connection for 6mm pneumatic tube, electrical interface M8 3-pin plug. Equipped with visible yellow LED indicator, supports teach-in to set trigger point. Widely applied for pressure monitoring of air preparation units and vacuum feedback in handling systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | SDE5-D10-O-Q6-P-M8 |
| Part No. | 527464 |
| Type | Electronic Pressure Sensor |
| Series | SDE5 |
| Measuring Principle | Piezoresistive, Relative pressure |
| Pressure Range | 0 ~ 10 bar |
| Switch Function | O: Fixed hysteresis, 1 teach point, Normally Open |
| Pneumatic Connection | Q6: Push-in fitting for 6mm OD tube |
| Electrical Output | P: PNP switching output |
| Electrical Connector | M8x1, 3-pin round plug |
| Operating Voltage | DC15 ~ 30V |
| Max Output Current | 100 mA |
| Repeat Accuracy | ±0.3 %FS |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Medium Temperature | 0 ~ +50 ℃ |
| Ambient Temperature | 0 ~ +50 ℃ |
| Material | Housing: POM |
| Feature | Yellow LED status indicator, reverse polarity protection, CRC2 corrosion resistance |
| Protection Class | IP40 |
| Weight | 19 g |
| Mounting | Optional wall bracket, can be cascaded |
| Condition | New Original |
