CSX-WPFA542252ZZZZ 1147712

属性名	属性值
Brand	SICK
Part No.	CSX-WPFA542252ZZZZ
SICK ID	1147712
Product Series	CSS/CSX High Speed
Product Type	Color Sensor
Sensing Distance	60 mm
Light Source	RGB LED
Spot Size	Ø12 mm, round large
Dimension	30 mm × 53 mm × 78.5 mm
Switching Frequency	13.8 kHz
Response Time	36 µs
Supply Voltage	10.8–28.8 V DC
Output Type	Push-pull, PNP/NPN
Output Channel	2 × hardware switching outputs
Interface	IO-Link
Protection Class	IP67
Connection	M12, 5-pin male connector
Housing Material	V

INQUIRY

Product Details

Product Tags

Product Overview

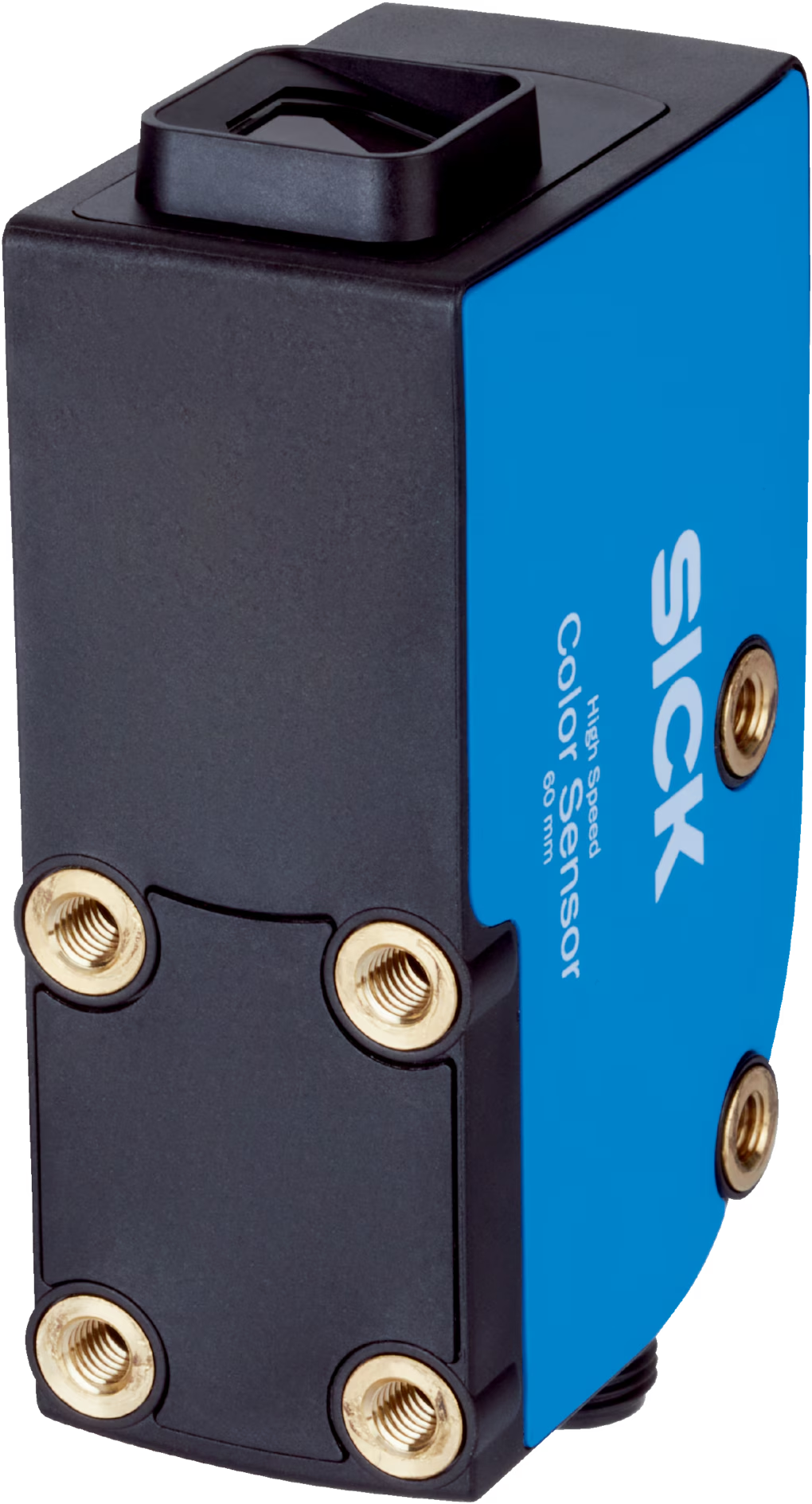

CSX-WPFA542252ZZZZ (1147712) is SICK CSS/CSX High Speed color sensor. It supports high-speed color identification, up to 13.8 kHz switching frequency. It can detect color gradients and structured surfaces, teach single or multiple color values. With IO-Link interface, it can save up to 24 colors per job. IP67 protection, widely used in packaging, printing and automated inspection lines. New original, genuine supply.

属性名	属性值
Brand	SICK
Part No.	CSX-WPFA542252ZZZZ
SICK ID	1147712
Product Series	CSS/CSX High Speed
Product Type	Color Sensor
Sensing Distance	60 mm
Light Source	RGB LED
Spot Size	Ø12 mm, round large
Dimension	30 mm × 53 mm × 78.5 mm
Switching Frequency	13.8 kHz
Response Time	36 µs
Supply Voltage	10.8–28.8 V DC
Output Type	Push-pull, PNP/NPN
Output Channel	2 × hardware switching outputs
Interface	IO-Link
Protection Class	IP67
Connection	M12, 5-pin male connector
Housing Material	VISTAL® Plastic
Color Mode	C / C+I
Teach Mode	Single value / Multi value teach-in
Job Banks	4
Sensitivity Adjustment	Continuous 0–999
MTTFD	263.7 years
Origin	Germany
Warranty	1 Year
Certificate	RoHS, UL
Net Weight	0.09 kg
Gross Weight	0.12 kg
