186120 QSL-G1/4-8

属性名称	属性值
Brand	FESTO
Model	QSL-G1/4-8
MPN	186120
Product Type	Push-in Pneumatic Fitting, 90° Elbow Quick Connector
Series	QSL Series
Thread Specification	G1/4 male thread
Tube Size	OD8mm plastic pneumatic tube
Material	Body: Nickel-plated brass; Release ring: POM; Seal: NBR
Working Medium	Compressed air, vacuum
Working Pressure	-0.95 ~ 10 bar
Ambient Temperature	-20 ~ 80 ℃
Feature	90° elbow push-in fitting, tool-free tube mounting, reliable leak tightness, compact structure, corrosio

INQUIRY

Product Details

Product Tags

Product Overview

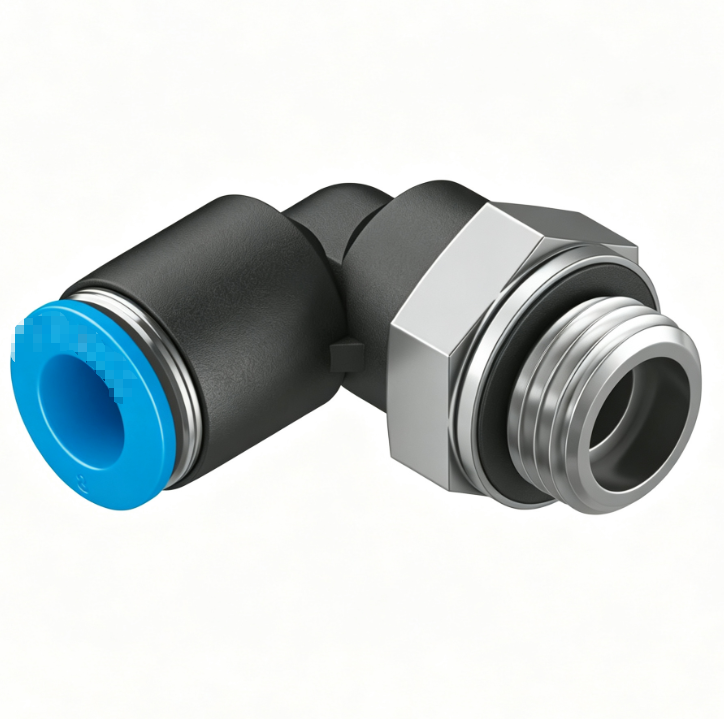

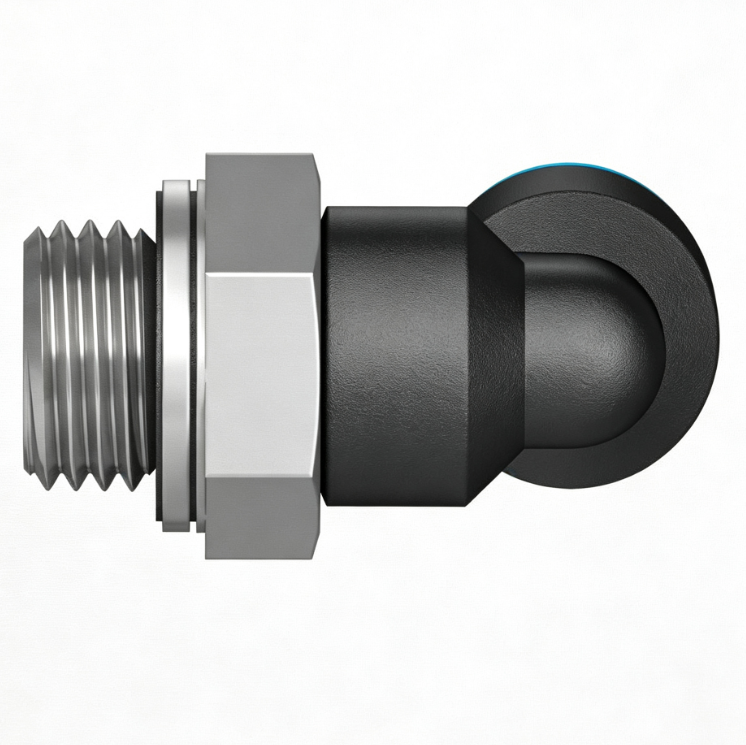

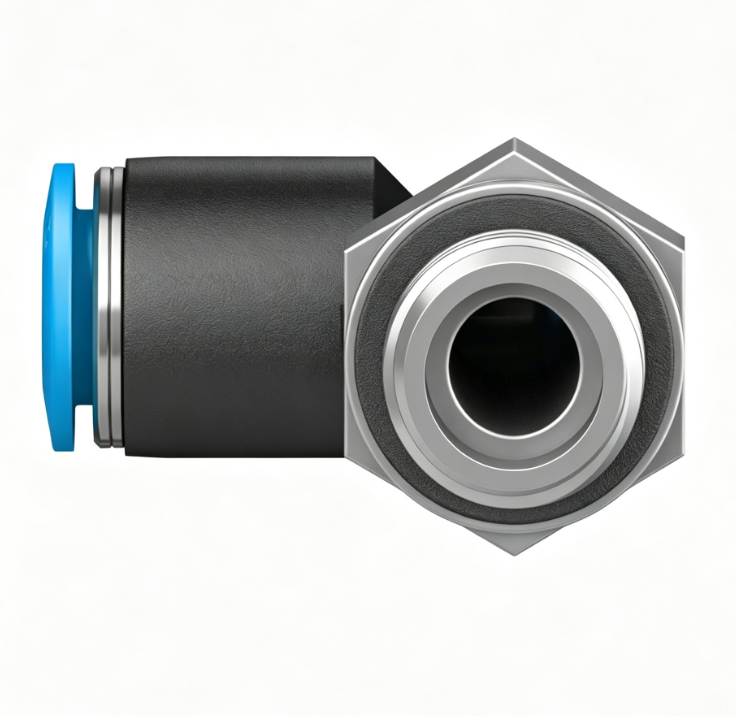

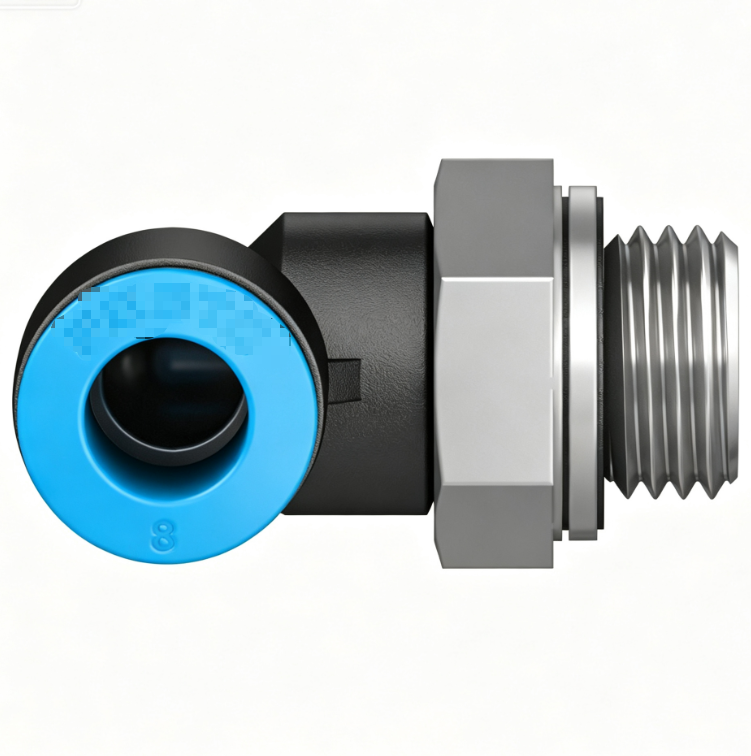

QSL-G1/4-8 (Part No.186120) is Festo QSL series 90° elbow push-in pneumatic fitting. It has G1/4 male thread and is designed for OD8mm pneumatic tubing. Constructed with nickel-plated brass body, POM release ring and NBR seal. The L-shaped push-in design enables fast tube mounting and removal without extra tools, providing stable leak-tight connection for compressed air and vacuum pipelines. Working pressure -0.95~10 bar, ambient temperature -20~80℃. RoHS compliant. Widely applied for angle transition connection in industrial automation pneumatic systems.

属性名称	属性值
Brand	FESTO
Model	QSL-G1/4-8
MPN	186120
Product Type	Push-in Pneumatic Fitting, 90° Elbow Quick Connector
Series	QSL Series
Thread Specification	G1/4 male thread
Tube Size	OD8mm plastic pneumatic tube
Material	Body: Nickel-plated brass; Release ring: POM; Seal: NBR
Working Medium	Compressed air, vacuum
Working Pressure	-0.95 ~ 10 bar
Ambient Temperature	-20 ~ 80 ℃
Feature	90° elbow push-in fitting, tool-free tube mounting, reliable leak tightness, compact structure, corrosion-resistant nickel-plated brass body
Compliance	RoHS compliant
Application	Pneumatic pipeline turn connection, connect OD8mm PU tube with threaded port, automation compressed air & vacuum circuit
