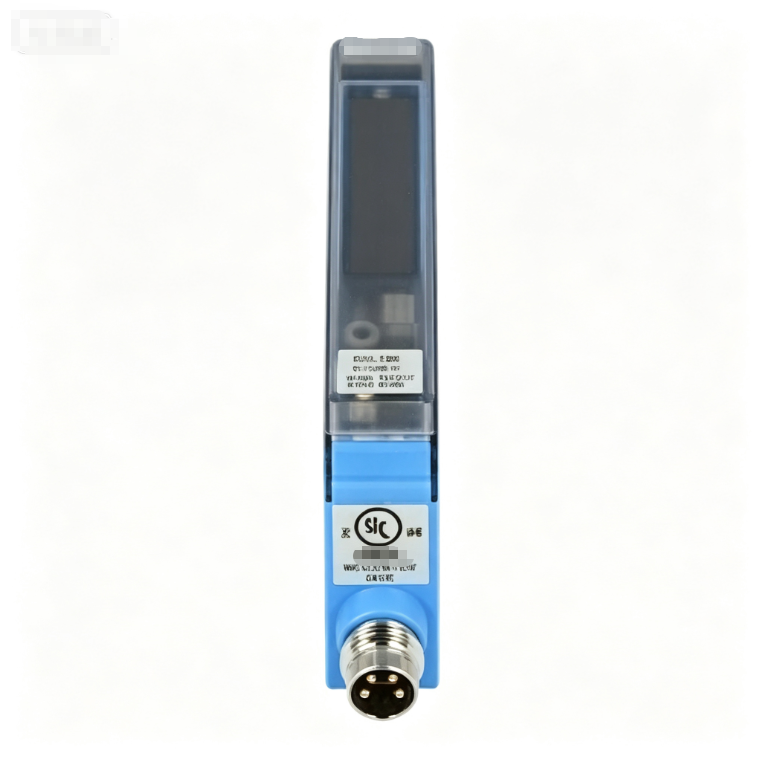

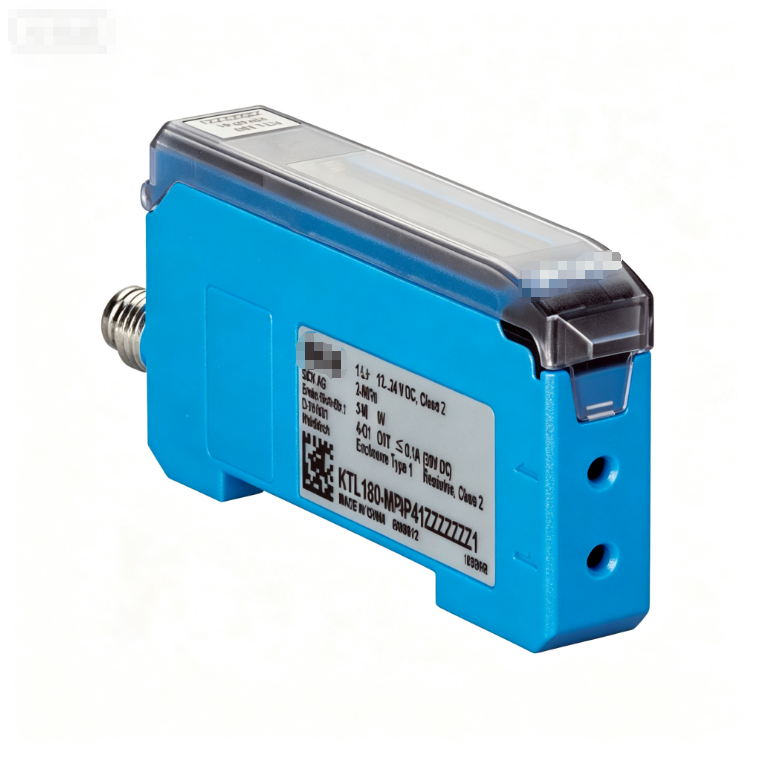

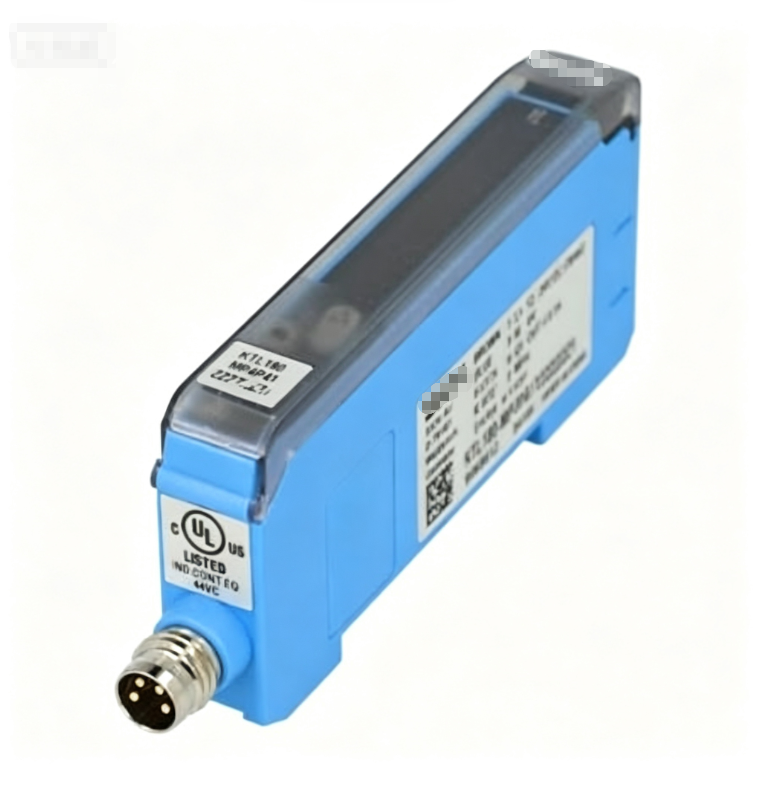

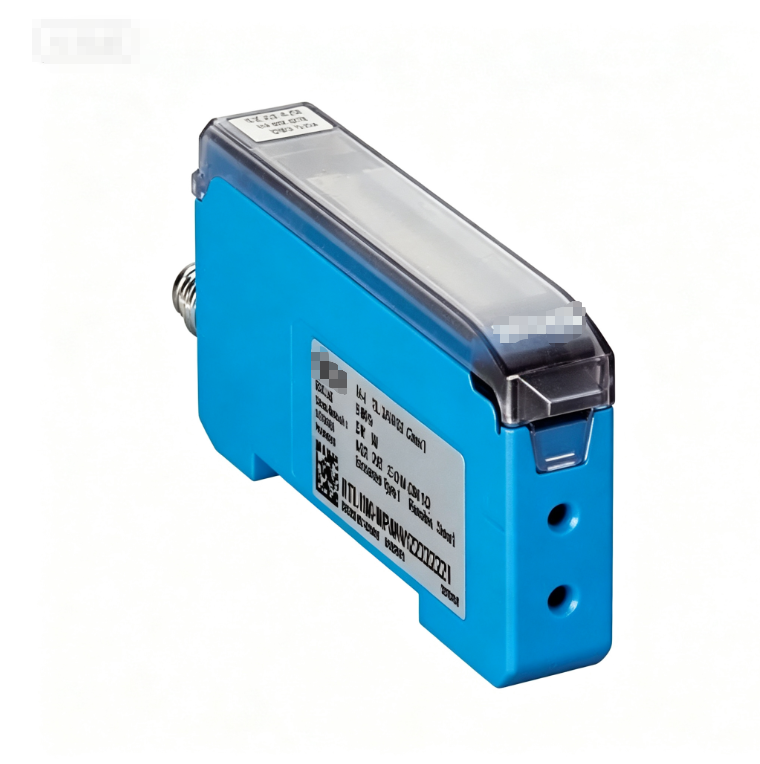

KTL180-MP4P41ZZZZZ

属性项	参数
Brand	SICK
Model	KTL180-MP4P41ZZZZZ
Order No.	6068612
Product Type	Contrast Sensor / Color Mark Sensor
Sensing Principle	Contrast detection, matched with fiber optic head
Sensing Range	Max 30mm (with corresponding fiber head)
Output Type	PNP
Supply Voltage	10.8~28.8V DC
Connection	M8 4-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP50
Light Source	White LED
Switching Frequency	31.2 kHz
Response Time	Min 16μs
Max Output Current	100mA
Operating Temp	-25℃

INQUIRY

Product Details

Product Tags

Product Overview

SICK KTL180-MP4P41ZZZZZ, Order No.6068612 is a high-speed contrast sensor of KTL180 series. It cooperates with fiber optic probes to realize contrast and color mark detection. With white LED light source and ultra-high switching frequency, it is specially designed for detecting printing marks on high-speed packaging and printing lines.

属性项	参数
Brand	SICK
Model	KTL180-MP4P41ZZZZZ
Order No.	6068612
Product Type	Contrast Sensor / Color Mark Sensor
Sensing Principle	Contrast detection, matched with fiber optic head
Sensing Range	Max 30mm (with corresponding fiber head)
Output Type	PNP
Supply Voltage	10.8~28.8V DC
Connection	M8 4-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP50
Light Source	White LED
Switching Frequency	31.2 kHz
Response Time	Min 16μs
Max Output Current	100mA
Operating Temp	-25℃ ~ +55℃
Size	10.5 × 34.6 × 71.9 mm
Net Weight	0.06kg
Gross Weight	0.09kg
Certification	CE
Condition	New Original
Application	Printing machine, Packaging machine, Mark detection, Factory automation
