IME12-08NPSZC0S

属性项	参数
Brand	SICK
Model	IME12-08NPSZC0S
Order No.	1040770
Product Type	Inductive Proximity Sensor
Sensing Principle	Inductive
Rated Sensing Distance	8 mm
Output Type	NPN NO
Supply Voltage	10~30V DC
Connection	M12 4-pin male connector
Housing Material	Nickel-plated brass
Protection Grade	IP67
Size	M12, length 65 mm
Response Frequency	800 Hz
Max Output Current	200mA
Operating Temp	-25℃ ~ +70℃
Net Weight	0.08kg
Gross Weight	0.11kg
Certification	CE
Condition	New Original
Applicat

INQUIRY

Product Details

Product Tags

Product Overview

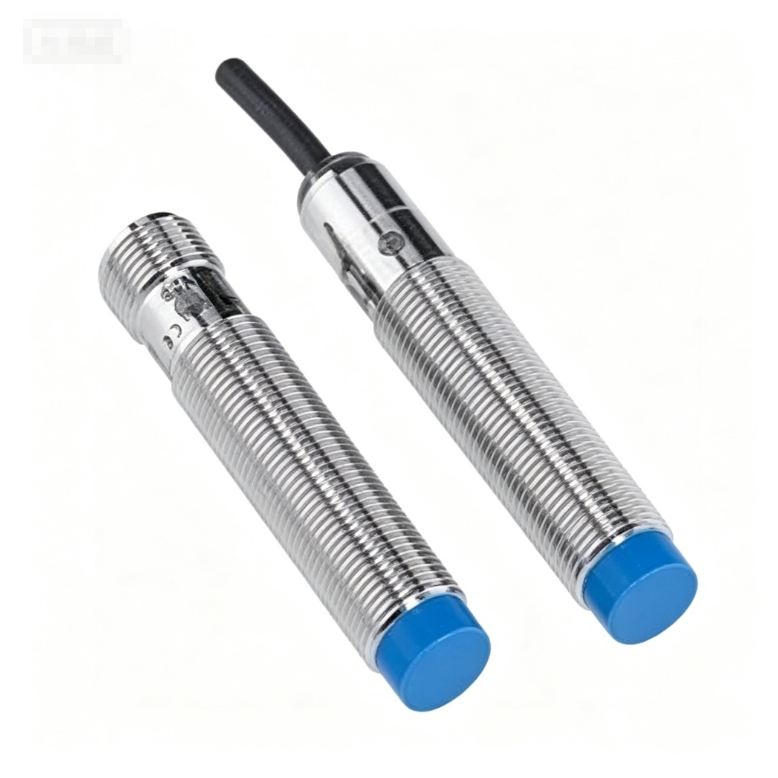

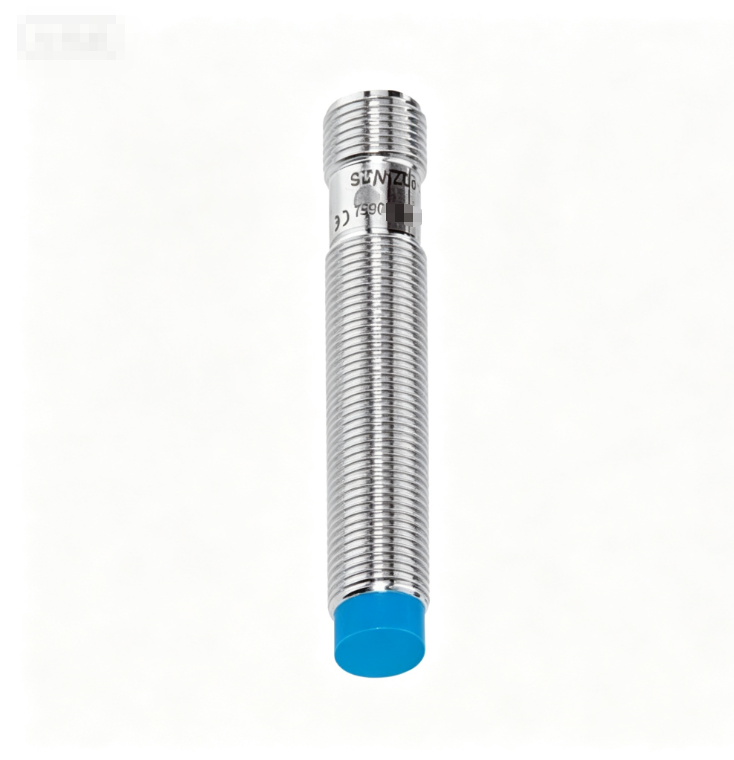

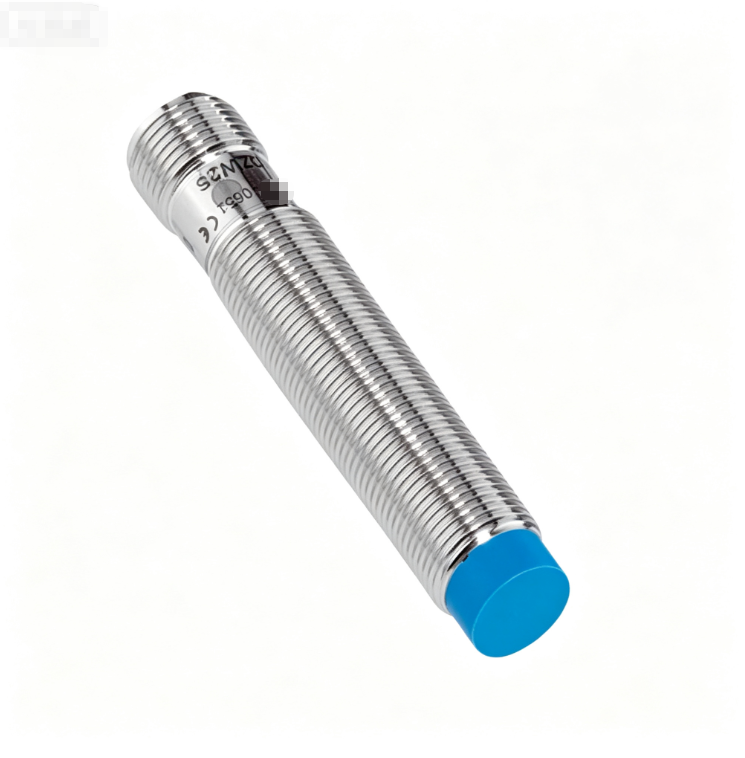

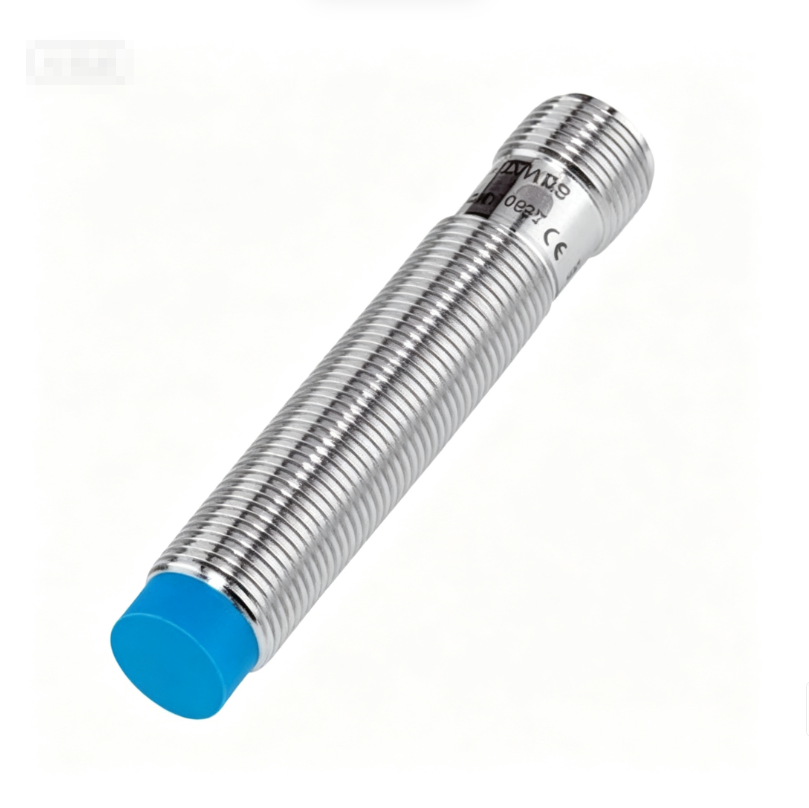

SICK IME12-08NPSZC0S, Order No.1040770 is an M12 cylindrical inductive proximity sensor. It adopts non-contact inductive detection principle to identify metal objects, featuring compact cylindrical design and reliable performance for industrial automation applications.

属性项	参数
Brand	SICK
Model	IME12-08NPSZC0S
Order No.	1040770
Product Type	Inductive Proximity Sensor
Sensing Principle	Inductive
Rated Sensing Distance	8 mm
Output Type	NPN NO
Supply Voltage	10~30V DC
Connection	M12 4-pin male connector
Housing Material	Nickel-plated brass
Protection Grade	IP67
Size	M12, length 65 mm
Response Frequency	800 Hz
Max Output Current	200mA
Operating Temp	-25℃ ~ +70℃
Net Weight	0.08kg
Gross Weight	0.11kg
Certification	CE
Condition	New Original
Application	Factory Automation, Conveyor, Machine Tool, Material handling
