F-5-1/4-B
Product Overview

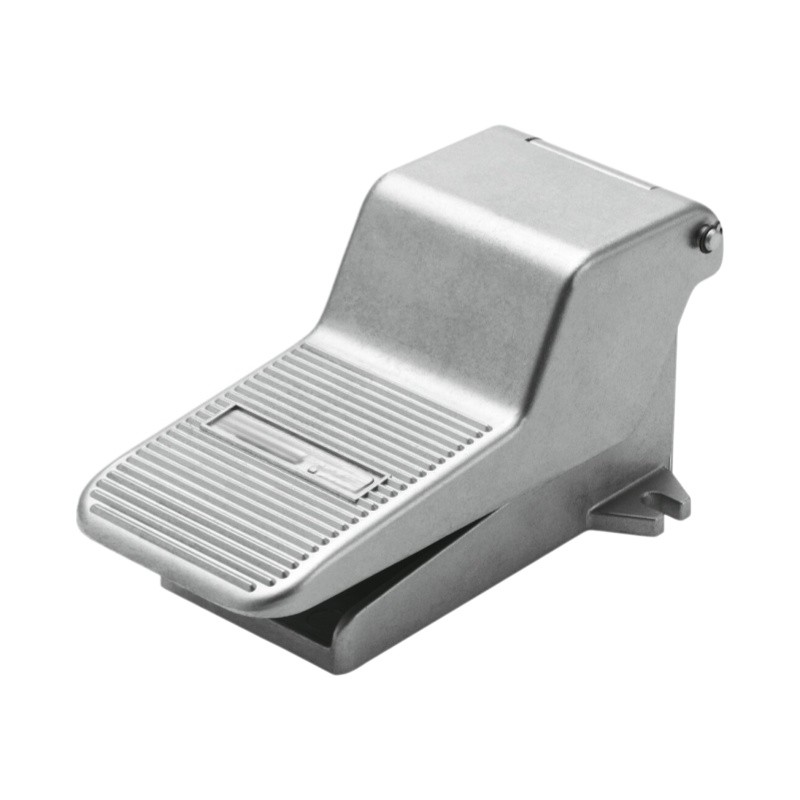

New Original FESTO F-5-1/4-B belongs to F series 5/2-way monostable pneumatic foot valve. G1/4 pneumatic port, nominal width 7mm, nominal flow rate 550 l/min. Operated by foot pedal, automatically reset by mechanical spring after releasing pedal. Die-cast aluminium housing with NBR seal, operating pressure -0.95~10 bar. LABS(PWIS) compliant VDMA24364-B1/B2-L, suitable for lithium battery, packaging and paint workshop automation. Widely used for workpiece clamping, pressing and assembly stations to free hands for safer operation.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | F-5-1/4-B |
| Order No. | 8992 |
| Product Series | F |
| Product Type | 5/2-way monostable foot valve |
| Valve Function | 5/2-way, monostable |
| Actuation | Manual foot actuation |
| Reset | Mechanical spring reset |
| Port Size | G1/4 |
| Nominal width | 7 mm |
| Nominal flow | 550 l/min |
| Operating pressure | -0.95 ~ 10 bar |
| Ambient Temperature | -10 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Housing material | Die-cast aluminium alloy |
| Seal material | NBR |
| Feature | LABS (PWIS) compliant VDMA24364-B1/B2-L；5/2 二位五通单稳态脚踏阀，弹簧复位；踏板式手动控制，无需手部操作；提升操作安全，适合工装夹紧、冲压工位 |
| Mounting | Floor mounting, any mounting position |
| Corrosion Resistance Class | CRC2 |
| Weight | 560 g |
| Certificate | RoHS, CE |
| Origin | Germany |
| Condition | New Original |
