QS-3/8-12

QS-3/8-12
属性名称	属性值
Brand	FESTO
Model	QS-3/8-12
Order No.	153009
Product Series	QS
Product Type	Push-in Fitting / Pneumatic Connector
Shape	Straight
Port 1	R3/8 Male Thread
Port 2	For tubing OD 12mm
Nominal Size	11 mm
Operating Pressure	-0.95 ~14 bar
Ambient Temperature	-10 ~ +80 ℃
Medium	Compressed air, water
Housing Material	Nickel-plated brass
Release Ring Material	POM
Tubing Seal Material	NBR
Claw Material	High-alloy stainless steel
Release Ring Color	Blue
Weight	30 g
Corrosion Resis

Product Details

Product Tags

Product Overview

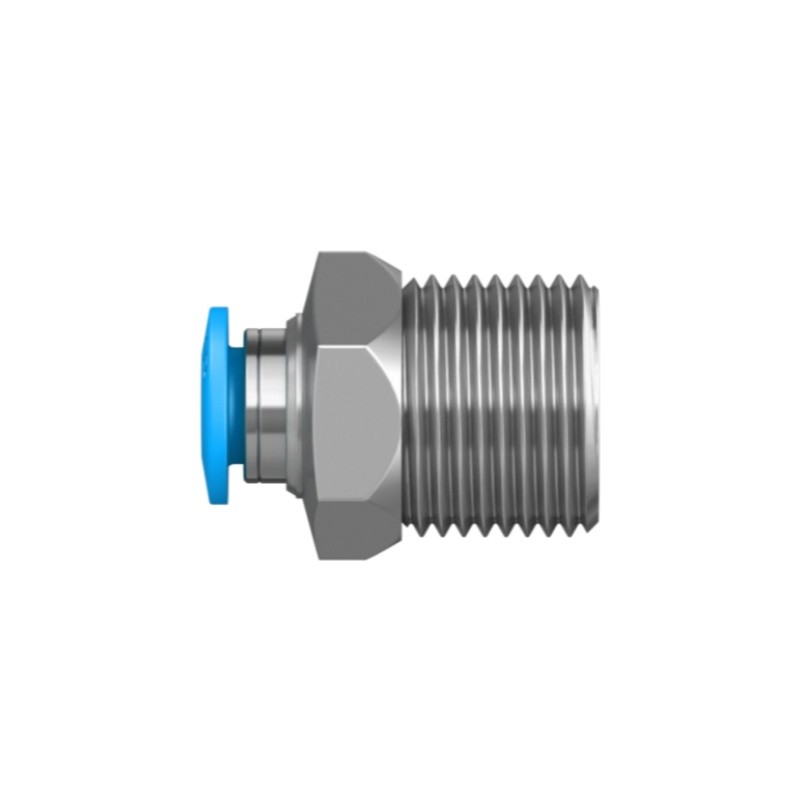

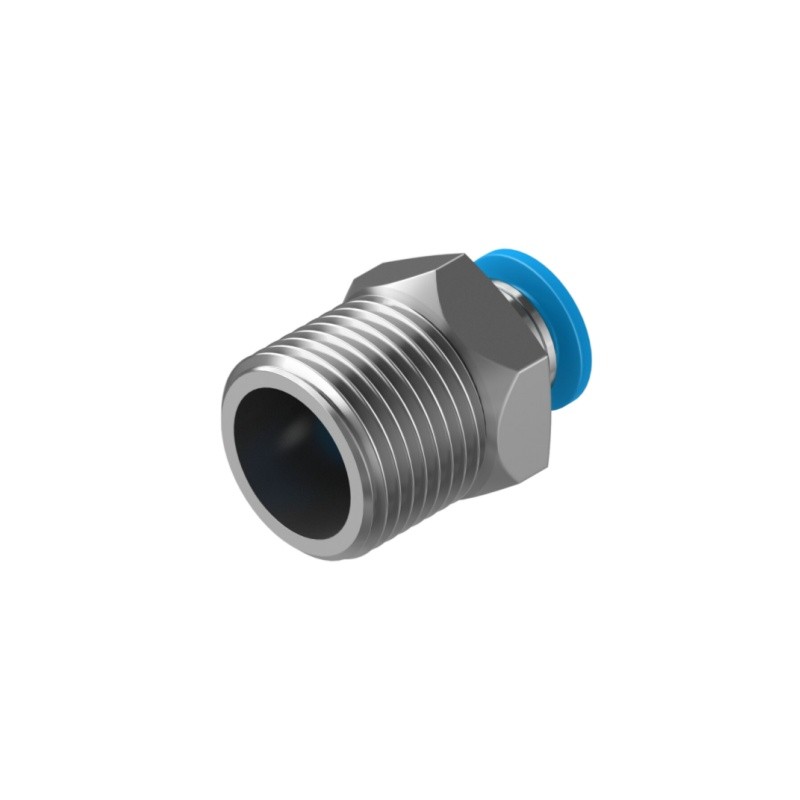

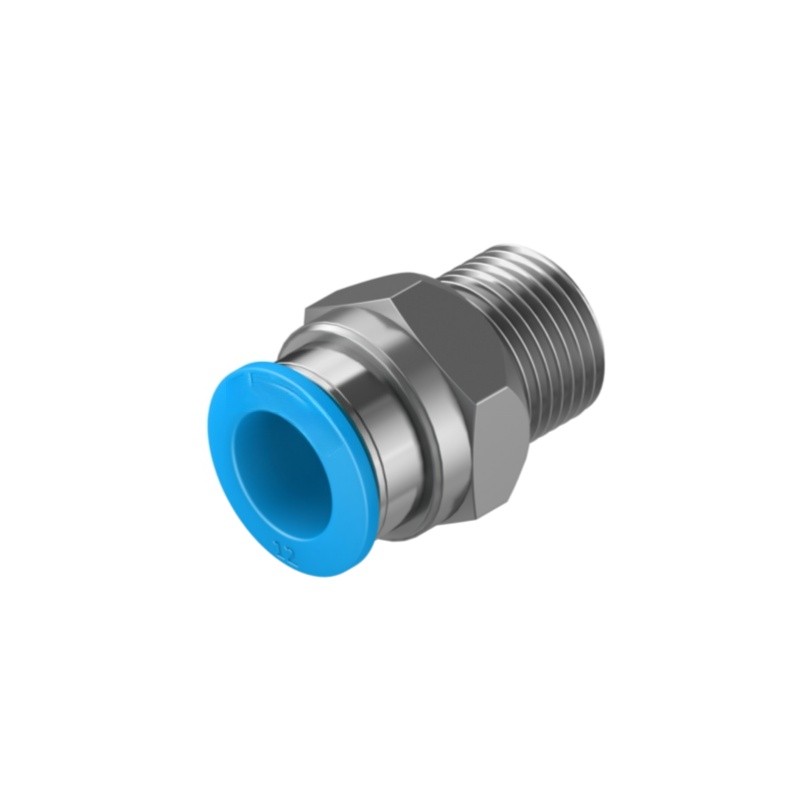

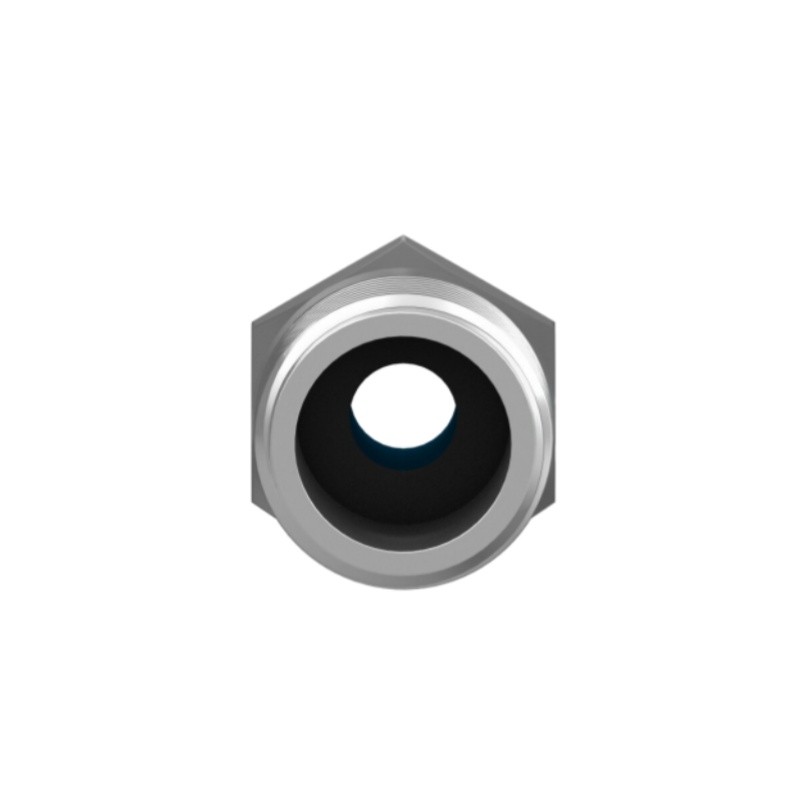

FESTO QS-3/8-12 straight push-in fitting belongs to QS series pneumatic quick connector. R3/8 male thread connection, for pneumatic tubing outer diameter 12mm. Nickel-plated brass housing with blue POM release ring, stainless steel retaining claw, reliable sealing, easy to plug and pull. It can be used for compressed air and water circuit, widely used in automation pneumatic pipeline assembly.

属性名称属性值
BrandFESTO
ModelQS-3/8-12
Order No.153009
Product SeriesQS
Product TypePush-in Fitting / Pneumatic Connector
ShapeStraight
Port 1R3/8 Male Thread
Port 2For tubing OD 12mm
Nominal Size11 mm
Operating Pressure-0.95 ~14 bar
Ambient Temperature-10 ~ +80 ℃
MediumCompressed air, water
Housing MaterialNickel-plated brass
Release Ring MaterialPOM
Tubing Seal MaterialNBR
Claw MaterialHigh-alloy stainless steel
Release Ring ColorBlue
Weight30 g
Corrosion Resistance ClassCRC 1
CertificateRoHS
OriginGermany
ConditionNew Original
