QST-10

QST-10
属性名称	属性值
Brand	FESTO
Model	QST-10
Order No.	153131
Product Series	QST
Product Type	Push-in T-connector / T pneumatic fitting
Shape	T-shape
Tube Spec	3 ports for tubing OD 10mm
Nominal Size	8.1 mm
Operating Pressure	-0.95 ~14 bar
Ambient Temperature	-10 ~ +80 ℃
Medium	Compressed air, vacuum, water
Housing Material	PBT / Nickel-plated brass
Release Ring Material	POM
Seal Material	NBR
Claw Material	High-alloy stainless steel
Release Ring Color	Blue
Weight	35 g
Corrosion Resistance

Product Details

Product Tags

Product Overview

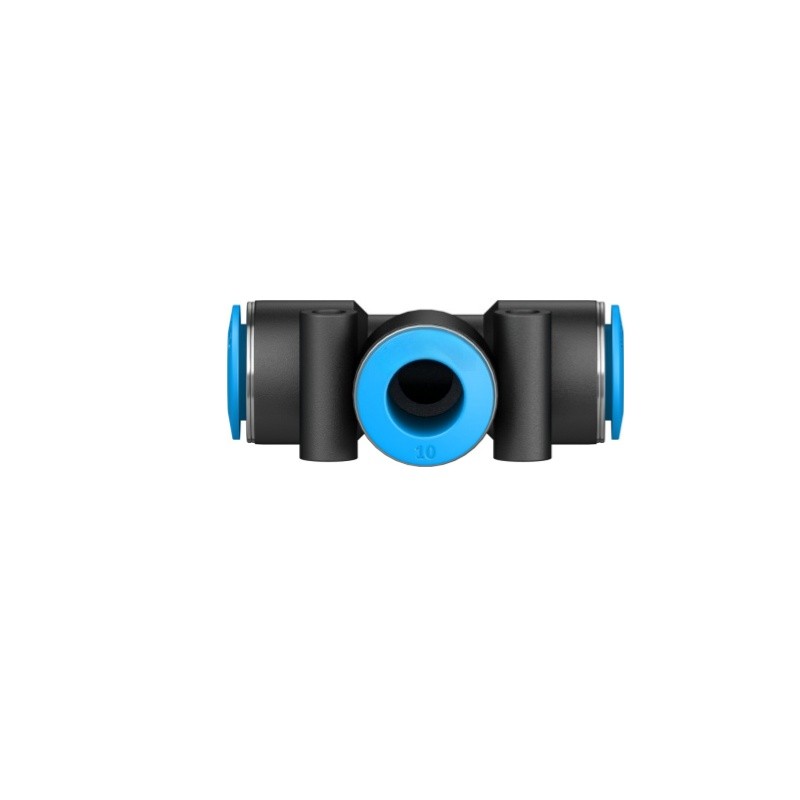

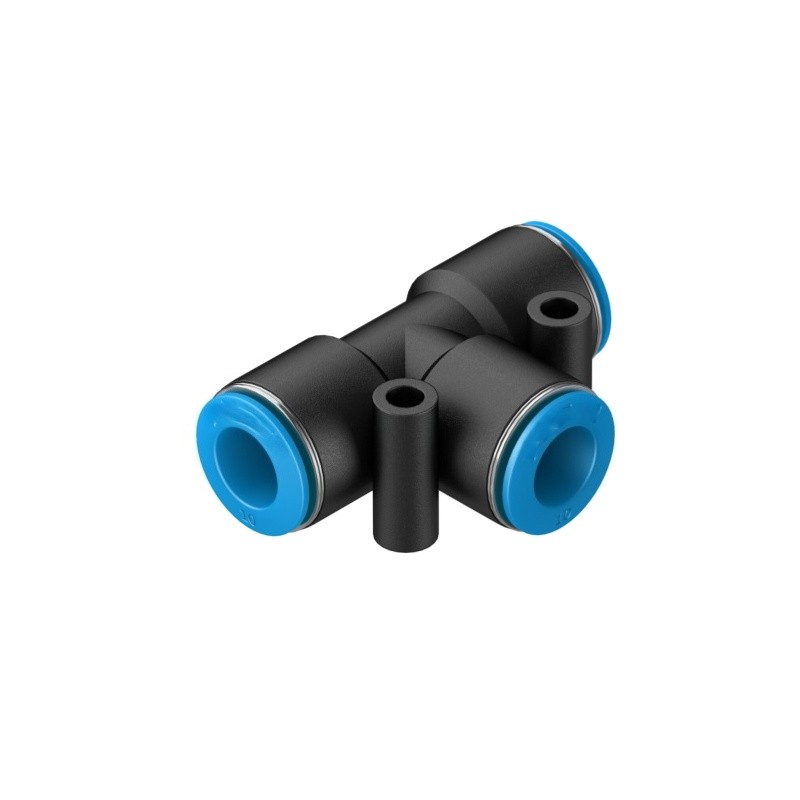

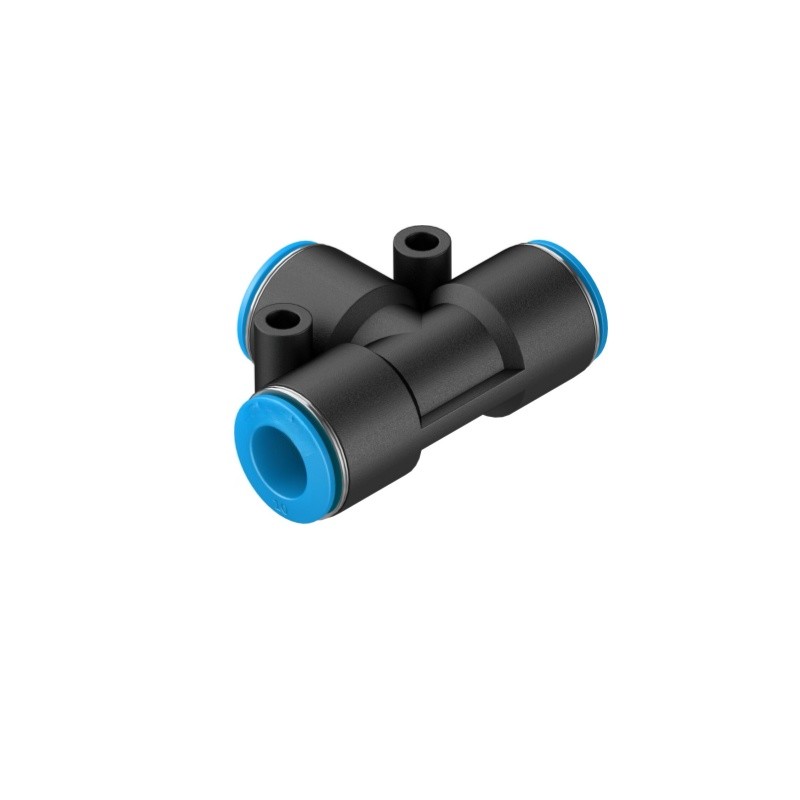

FESTO QST-10 T-type push-in fitting belongs to QST series pneumatic quick connector. Three ports for tubing outer diameter 10mm, used for air circuit shunt connection. Adopts push-pull quick plug principle, blue POM release ring for easy disassembly. Stainless steel retaining claw ensures stable sealing, suitable for compressed air, vacuum and water circuits, widely used in automation pneumatic pipeline assembly.

属性名称属性值
BrandFESTO
ModelQST-10
Order No.153131
Product SeriesQST
Product TypePush-in T-connector / T pneumatic fitting
ShapeT-shape
Tube Spec3 ports for tubing OD 10mm
Nominal Size8.1 mm
Operating Pressure-0.95 ~14 bar
Ambient Temperature-10 ~ +80 ℃
MediumCompressed air, vacuum, water
Housing MaterialPBT / Nickel-plated brass
Release Ring MaterialPOM
Seal MaterialNBR
Claw MaterialHigh-alloy stainless steel
Release Ring ColorBlue
Weight35 g
Corrosion Resistance ClassCRC 1
CertificateRoHS
OriginGermany
ConditionNew Original
