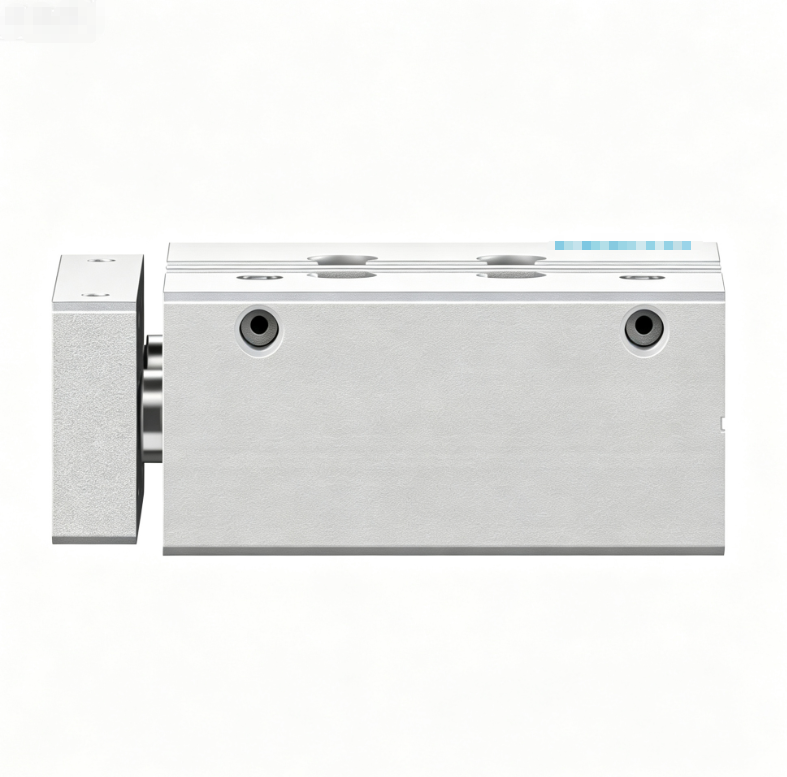

170827 DFM-12-30-P-A-GF
Product Overview
Item No: 170827 Model: DFM-12-30-P-A-GF Brand: Festo Type: Guided Pneumatic Cylinder

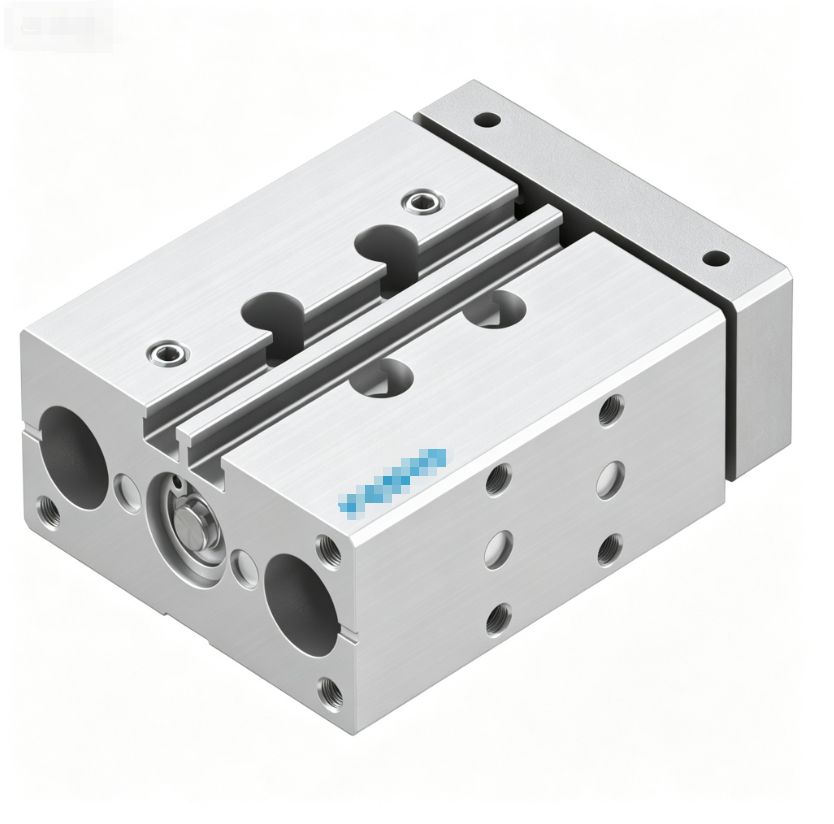

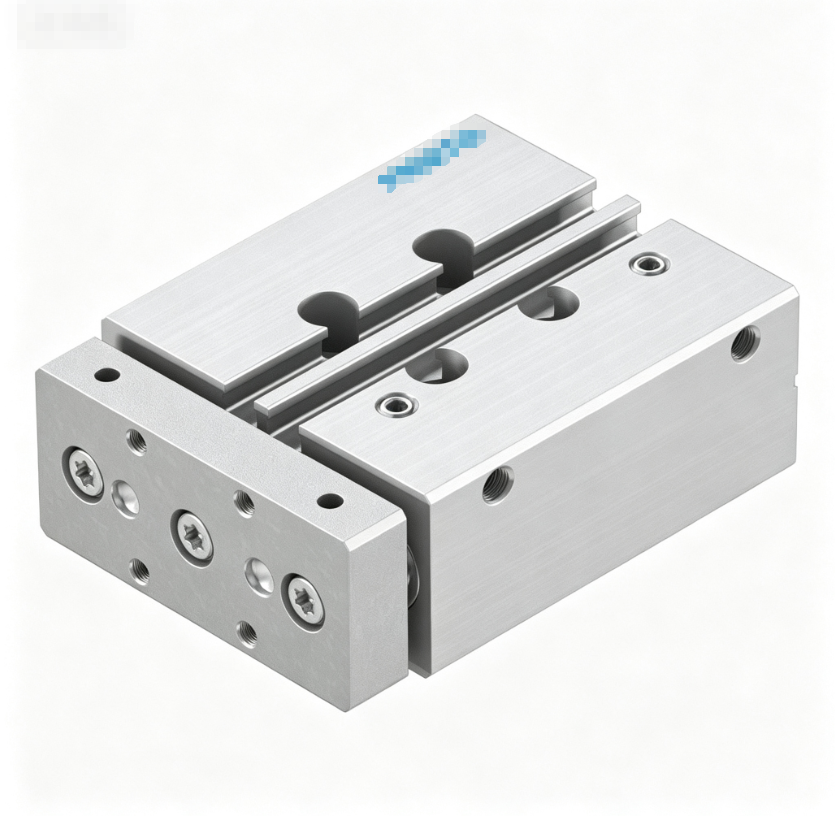

Festo DFM-12-30-P-A-GF guided cylinder (170827) belongs to DFM compact guided cylinder series. It integrates piston and two parallel guide rods. GF ball bearing guide delivers smooth and precise movement with good torsion resistance. P indicates female thread on piston rod, A has built-in T-slot for mounting magnetic sensors for position feedback. Compact structure, ready to install directly for linear transfer and pressing applications.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | DFM-12-30-P-A-GF |
| Part No. | 170827 |
| Type | Guided Pneumatic Cylinder |
| Series | DFM |
| Bore | 12 mm |
| Stroke | 30 mm |
| Action | Double acting |
| Guide Type | GF: ball bearing guide |
| Port Size | M5 |
| Working Pressure | 0.1 ~ 1.0 MPa (1 ~ 10 bar) |
| Theoretical force @6bar | 68 N |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Ambient Temperature | -10 ~ +60 ℃ |
| Material | Aluminum barrel, steel piston rod, aluminum guide rod housing, PUR/NBR seals |
| Feature | P: female piston rod thread; A: sensor slot for proximity switches; GF ball bearing guide, high precision |
| Mounting | Surface mounting |
| Condition | New Original |
