529419 MS4-LR-1/4-D7-AS
Product Overview
Item No: 529419 Model: MS4-LR-1/4-D7-AS Brand: Festo Type: Compressed Air Pressure Regulator

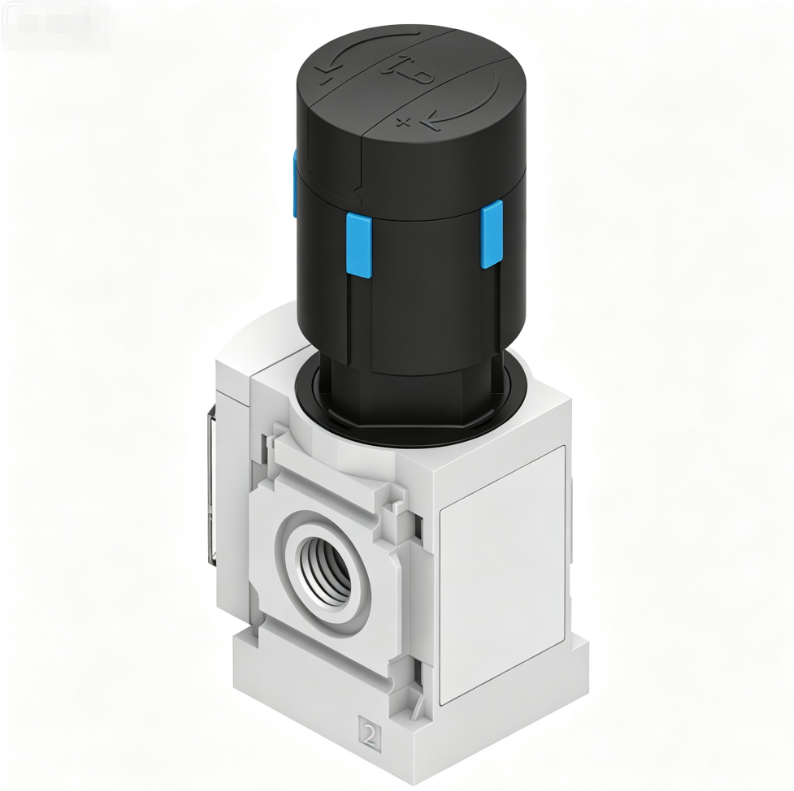

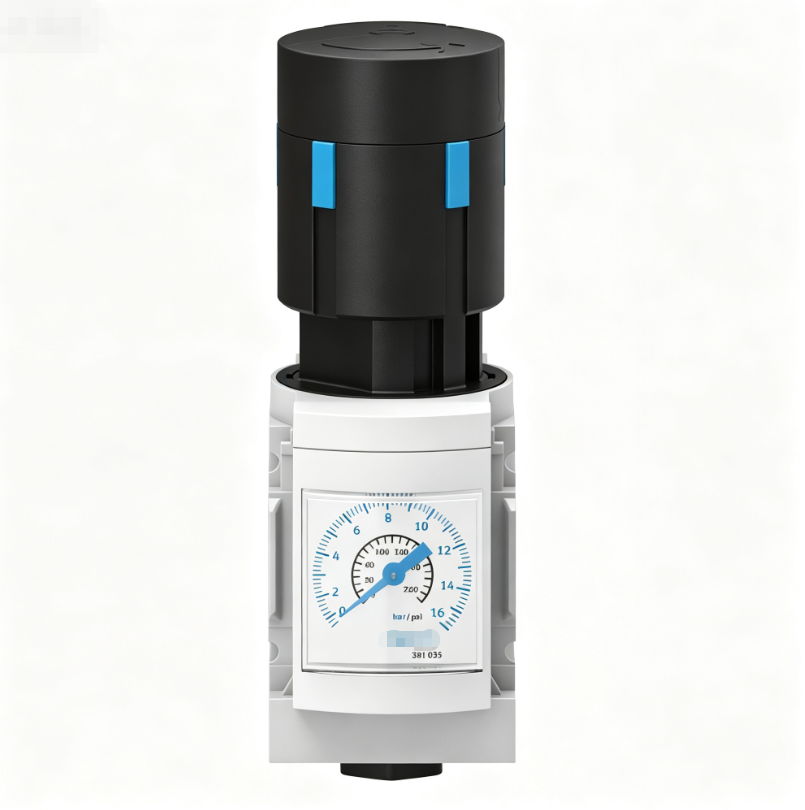

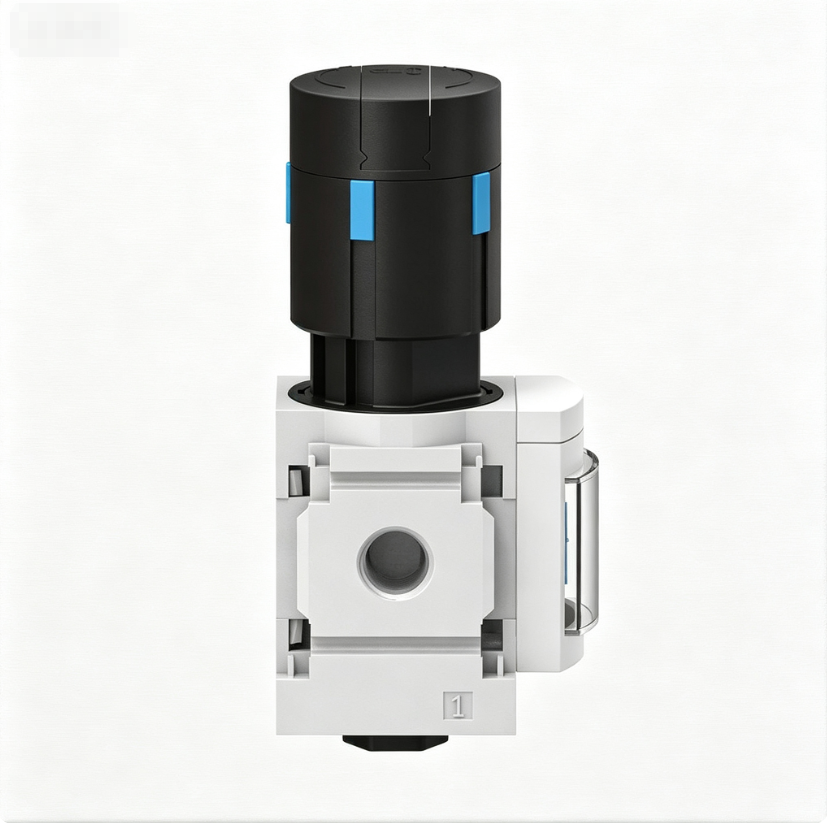

Festo MS4-LR-1/4-D7-AS pressure regulator (529419) belongs to MS4 modular air service unit series. It is used to reduce and stabilize compressed air pressure for downstream pneumatic equipment. Built-in D7 pressure gauge for real-time pressure reading, AS locking knob can lock the set pressure to avoid unintended change. Modular stacking design allows quick assembly with filter, lubricator and dryer of MS4 series for complete air preparation system.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MS4-LR-1/4-D7-AS |
| Part No. | 529419 |
| Type | Pressure Regulator / Air Regulator |
| Series | MS4 |
| Port Size | G1/4 |
| Inlet Pressure | 0 ~ 1.6 MPa (0 ~ 16 bar) |
| Output Pressure Range | 0.05 ~ 0.7 MPa (0.5 ~ 7 bar) |
| Max Flow Rate | 1200 l/min |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -5 ~ +60 ℃ |
| Material | Aluminum manifold body, PA housing, NBR seal |
| Feature | D7 pressure gauge, AS locking knob, modular stack design, pressure self-compensation |
| Mounting | Modular assembly for MS4 service unit |
| Weight | 310 g |
| Condition | New Original |
