CQ35-25NPP-KC1 6020479
Product Overview

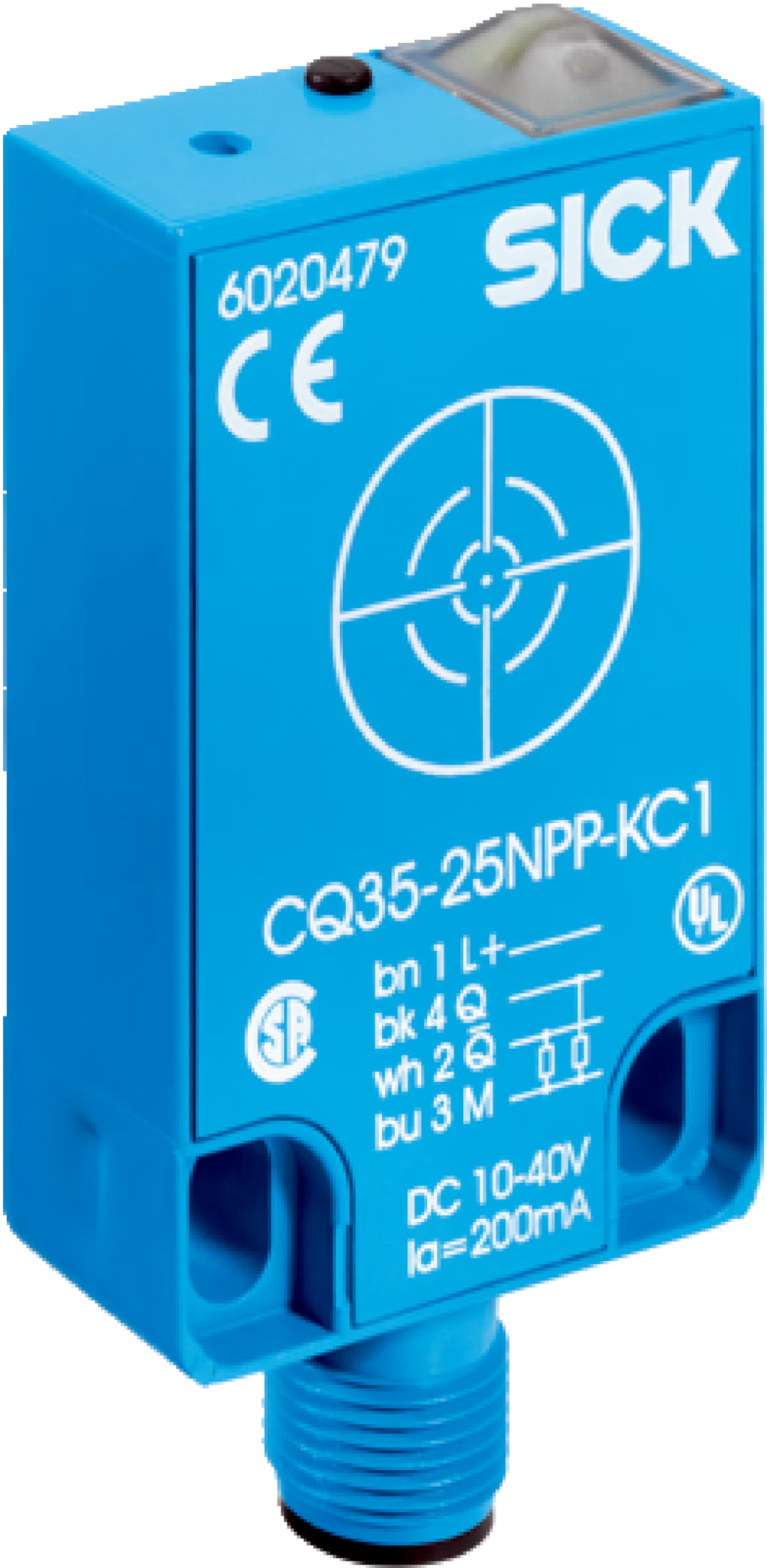

New original SICK CQ35-25NPP-KC1 capacitive proximity sensor, PN 6020479, rectangular CQ series non-flush mount sensor. Sensing range 4~25mm, complementary PNP NO+NC output, 10-36VDC power supply. It adopts M12 4-pin male connector and IP67 protection grade. PBT plastic housing with 270° potentiometer for sensitivity adjustment and excellent EMC performance. It can detect liquid, powder and granular materials through non-metallic container walls. Working temperature -20℃ ~ +75℃. Widely used for material level monitoring and object detection on packaging, conveyor and bulk handling automation lines. We supply genuine SICK sensors with fast delivery and professional after-sales support.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Model | CQ35-25NPP-KC1 |
| Part No. | 6020479 |
| Series | CQ |
| Sensor type | Capacitive proximity sensor |
| Sensing distance | 4 ~ 25 mm |
| Installation | Non-flush mount |
| Output type | PNP, NO+NC complementary |
| Wiring | DC 4-wire |
| Connection | M12 male, 4-pin |
| Supply voltage | 10–36 V DC |
| Max switching current | 200 mA |
| Switching frequency | 50 Hz |
| IP rating | IP67 |
| Housing material | PBT plastic |
| Operating temperature | -20 ℃ ~ +75 ℃ |
| Feature | 270° potentiometer for sensitivity adjustment, high EMC, through-wall detection |
| Weight(net) | 0.14 kg |
| Weight(gross) | 0.20 kg |
| Certificate | RoHS |
