LR-1/2-D-MIDI-MPA
Product Overview
Item No: 8002257 Model: LR-1/2-D-MIDI-MPA Brand: Festo Type: Diaphragm Pressure Regulator, D Series MIDI Service Unit

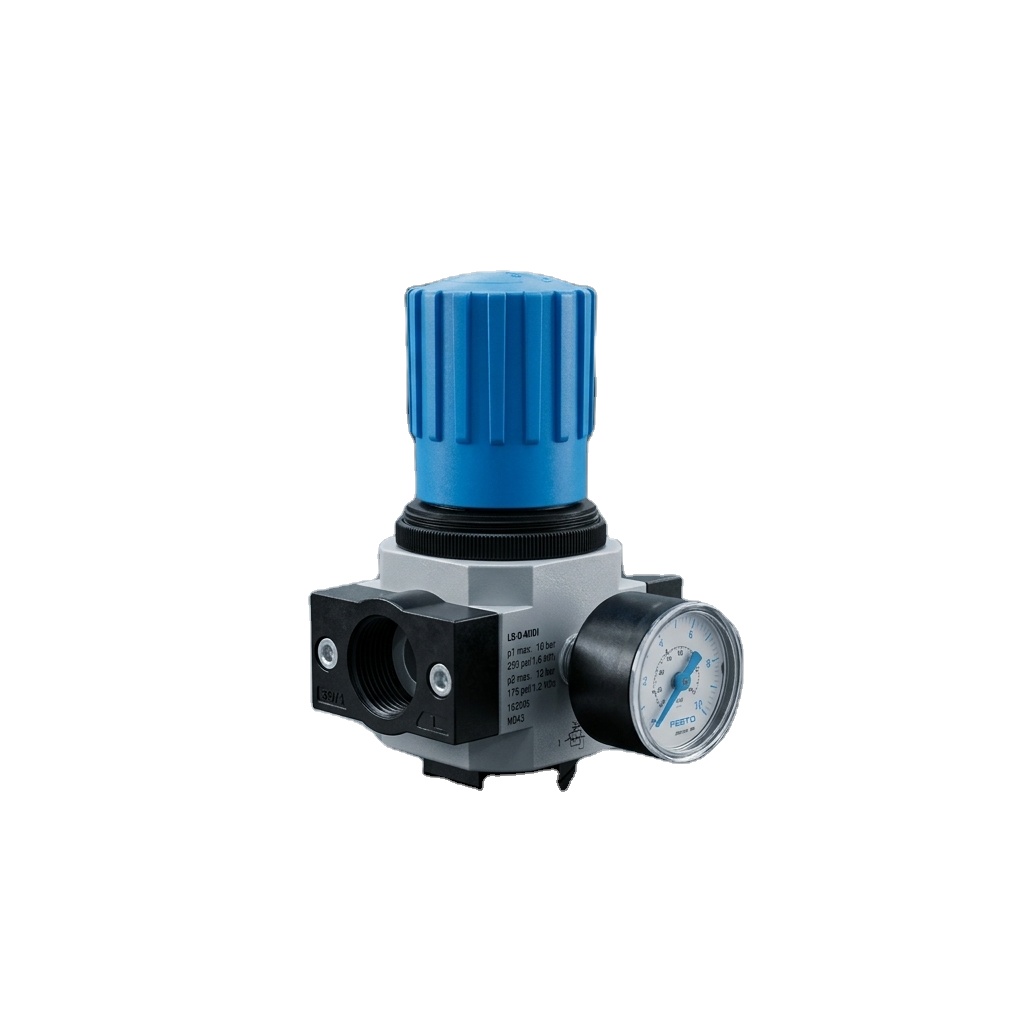

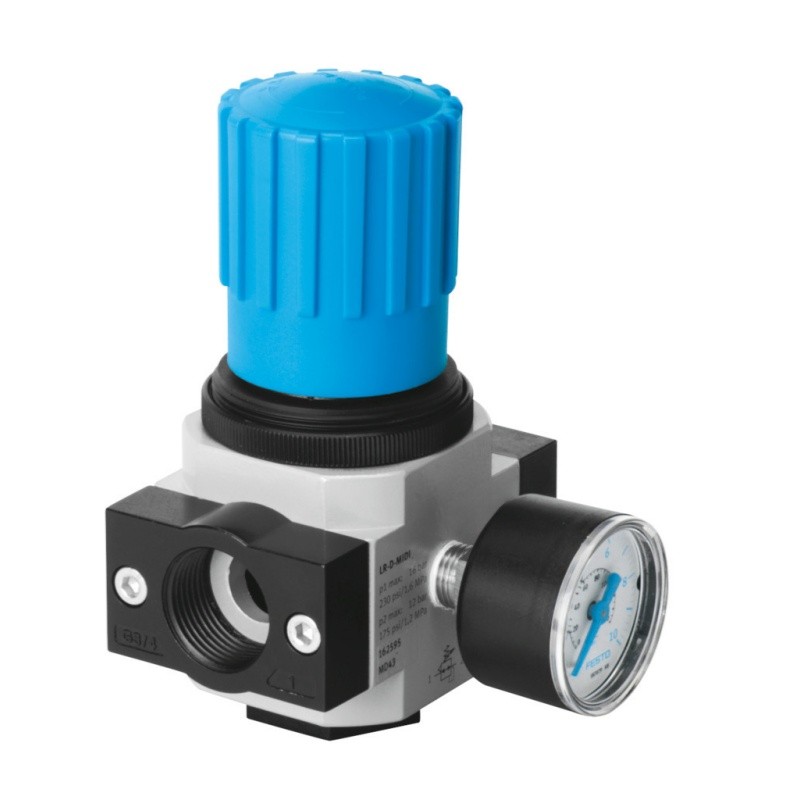

Festo LR-1/2-D-MIDI-MPA pressure regulator, part number 8002257, is a MIDI-size modular diaphragm regulator for Festo D series air service units. It adopts direct actuation and primary pressure compensation design with secondary venting, achieving low hysteresis and stable output pressure. A built-in pressure gauge allows real-time visual monitoring of outlet pressure. The rotary detent knob enables easy pressure adjustment and can be locked to prevent accidental parameter change. Made of die-cast aluminium housing and NBR diaphragm, it has CRC2 corrosion resistance. It supports installation in any position and optional panel mounting. It is widely assembled into D series air source treatment combination, used for compressed air pressure stabilization and pressure control for automation pneumatic actuators.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | LR-1/2-D-MIDI-MPA |
| Part No. | 8002257 |
| Product Series | LR / D series service unit |
| Product Type | Diaphragm Pressure Regulator |
| Product Function | Directly actuated diaphragm regulator, primary pressure compensation, secondary venting, with pressure gauge |
| Pneumatic Connection | G1/2 |
| Max Inlet Pressure | 16 bar |
| Pressure Regulation Range | 0.5 ~ 12 bar |
| Nominal Flow Rate | 3500 l/min |
| Max Pressure Hysteresis | 0.2 bar |
| Operating Medium | Filtered compressed air ISO 8573-1 [7:4:4], inert gas |
| Ambient & Medium Temp | -10 ℃ ~ +60 ℃ |
| Housing Material | Die-cast aluminium |
| Diaphragm Material | NBR |
| Adjustment | Rotary knob with detent, lockable |
| Corrosion Resistance Class | CRC2 |
| Mounting | Any mounting position, panel mount optional |
| Net Weight | 720 g/pc |
| RoHS Compliance | Yes |
| Feature | MIDI size modular regulator, built-in pressure gauge, low hysteresis, secondary exhaust, compatible with D series service unit |
| Application | Compressed air pressure stabilization, pneumatic circuit pressure adjustment, D series air service unit assembly for factory automation |
