1049059

属性项	参数
Brand	SICK
Model	WL9-3P2230
Order No.	1049059
Product Type	Retro-reflective Photoelectric Sensor
Sensing Principle	Retro-reflective, polarizing filter
Sensing Range	0~4m max, rated 0~2.5m (with reflector)
Output Type	PNP, Light-on / Dark-on switchable
Supply Voltage	10~30V DC
Connection	M8 4-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	Red LED
Size	12.2 × 49.8 × 23.6 mm
Response Time	≤0.5ms
Max Output Current	100mA
Operating Temp	-25℃

INQUIRY

Product Details

Product Tags

Product Overview

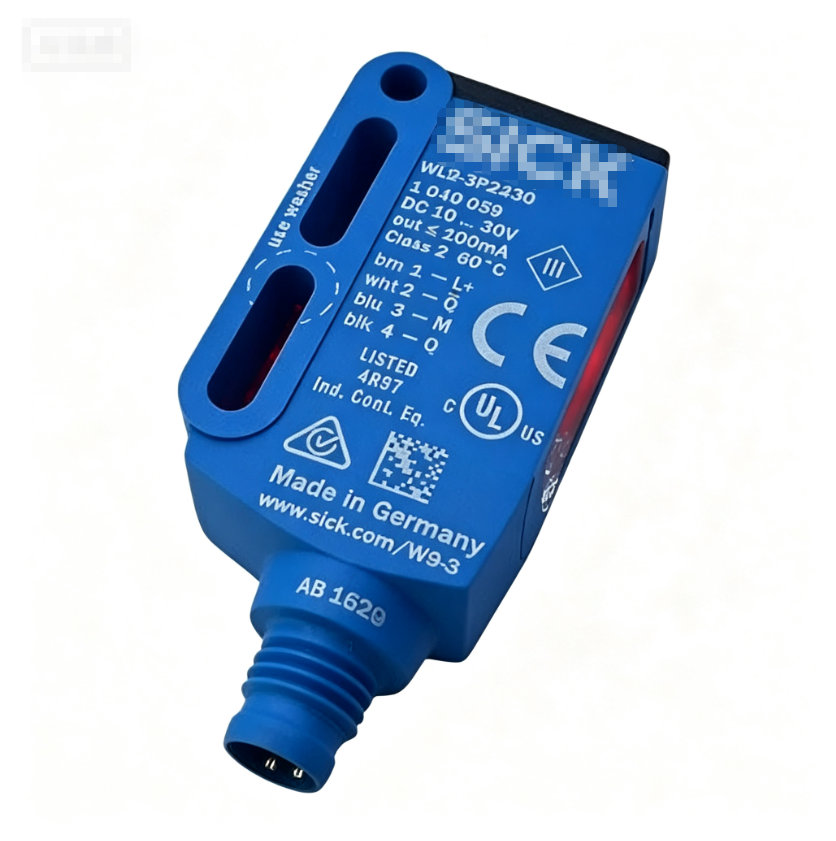

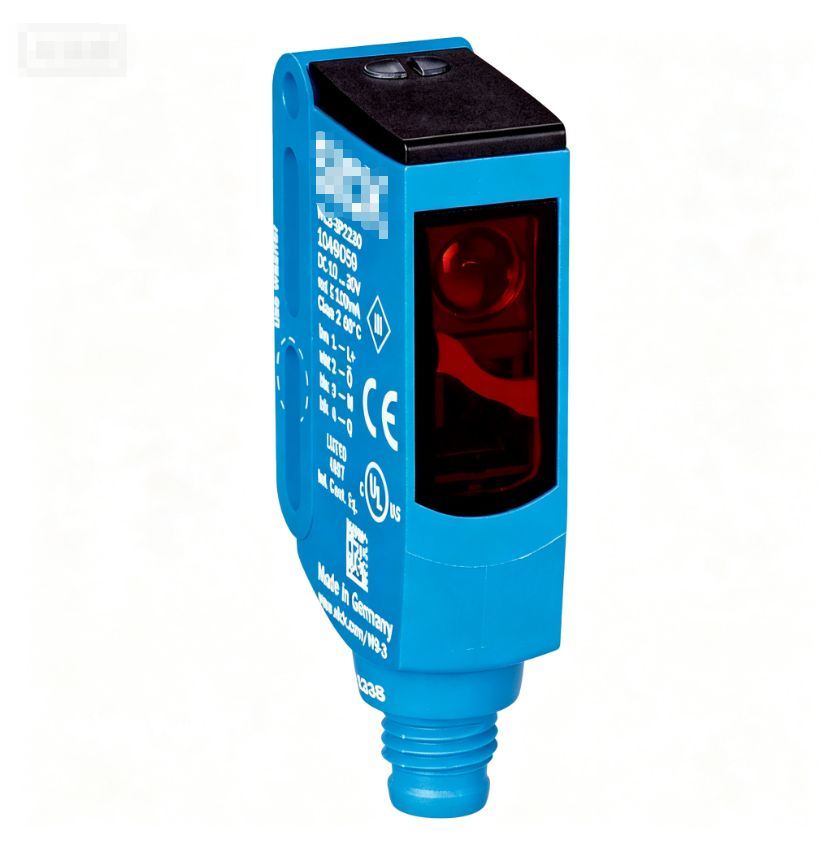

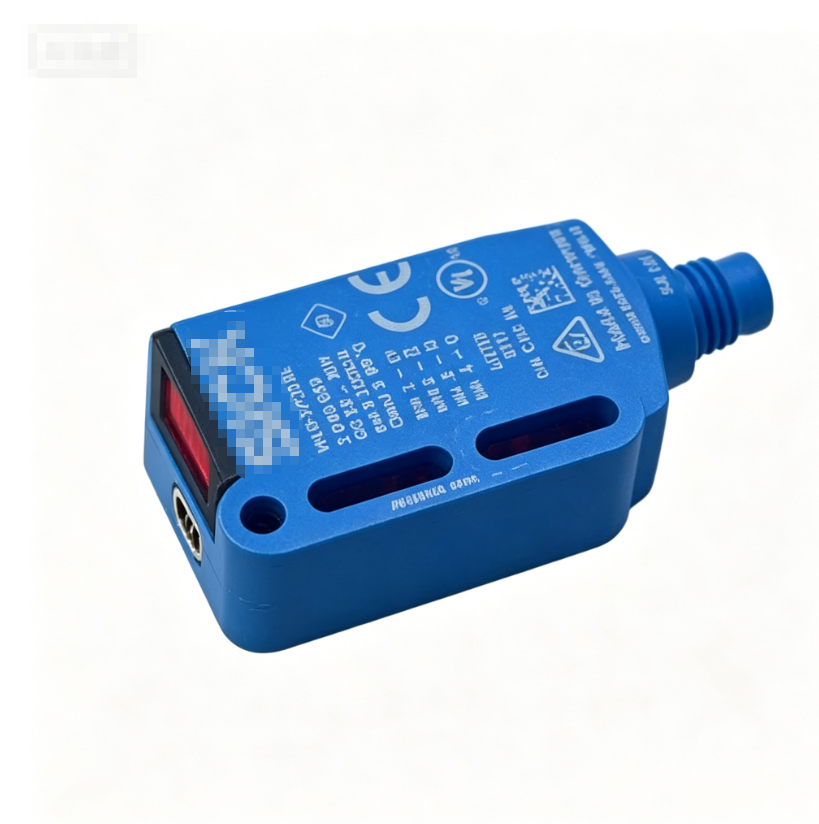

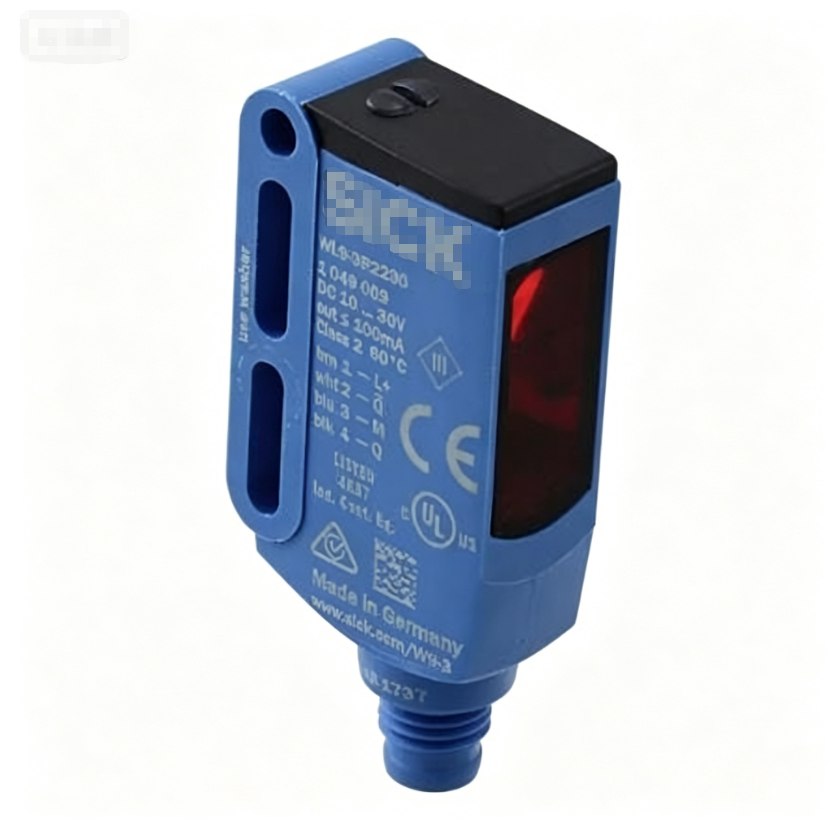

SICK WL9-3P2230, Order No.1049059 is a compact retro-reflective photoelectric sensor equipped with built-in polarizing filter and red LED light source. It supports switchable Light-on / Dark-on modes, can effectively suppress false triggering from glossy workpiece surfaces, ideal for object detection in tight installation spaces.

属性项	参数
Brand	SICK
Model	WL9-3P2230
Order No.	1049059
Product Type	Retro-reflective Photoelectric Sensor
Sensing Principle	Retro-reflective, polarizing filter
Sensing Range	0~4m max, rated 0~2.5m (with reflector)
Output Type	PNP, Light-on / Dark-on switchable
Supply Voltage	10~30V DC
Connection	M8 4-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	Red LED
Size	12.2 × 49.8 × 23.6 mm
Response Time	≤0.5ms
Max Output Current	100mA
Operating Temp	-25℃ ~ +55℃
Net Weight	0.05kg
Gross Weight	0.08kg
Certification	CE
Condition	New Original
Application	Factory Automation, Conveyor, Packaging Machine, Object detection
