MS6-DL-1/2
Product Overview

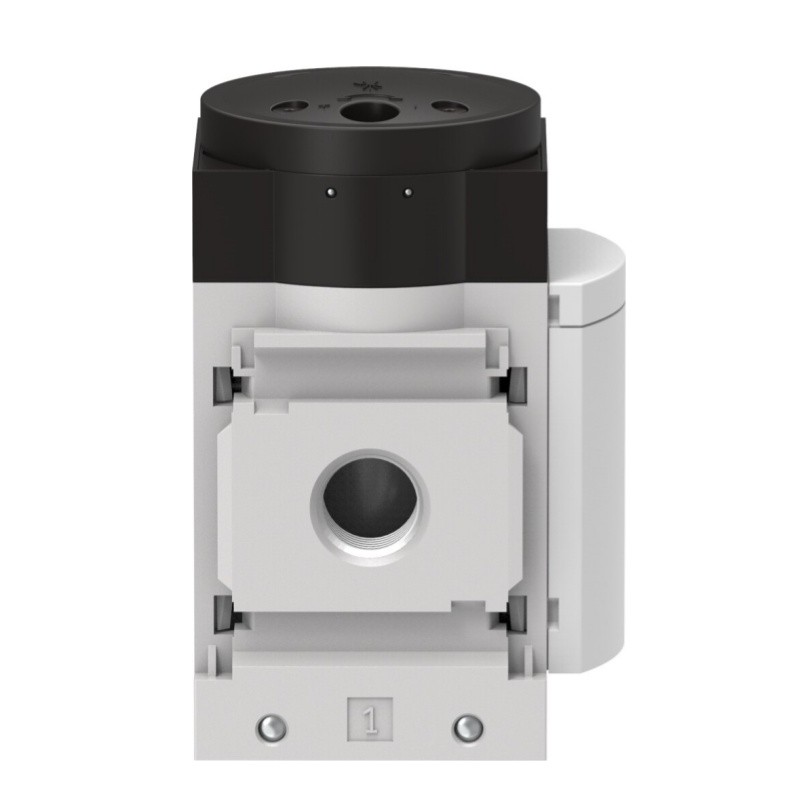

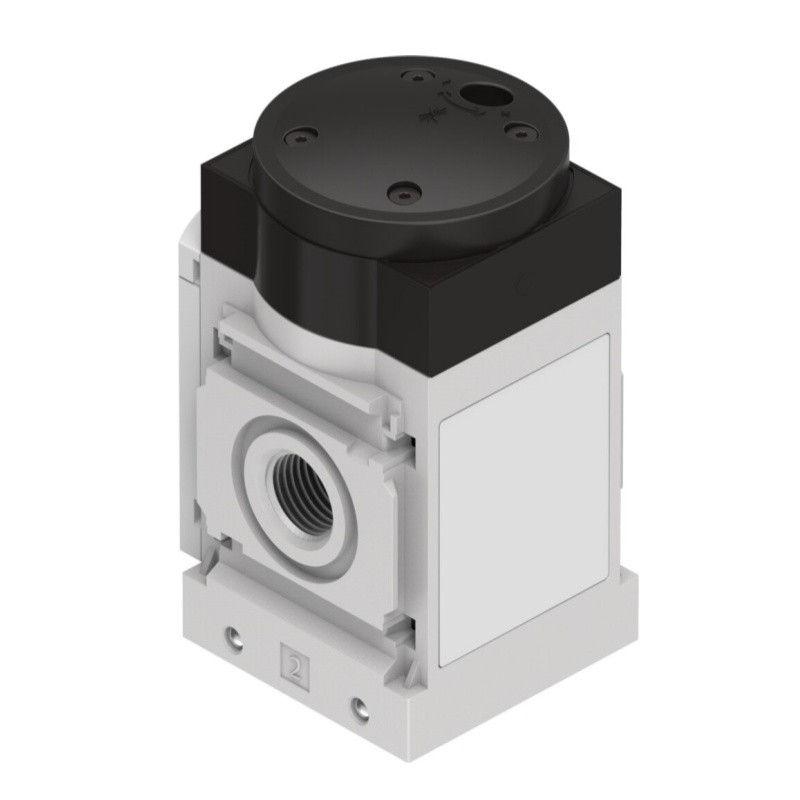

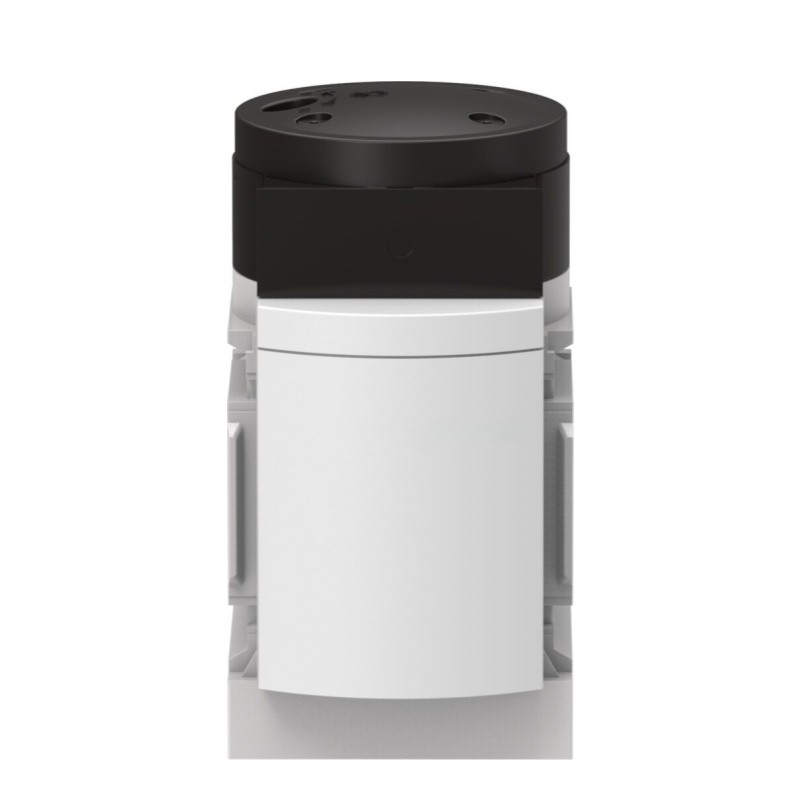

MS6-DL-1/2, Part No.529817, is Festo MS6 series soft-start valve. It is a 2/2-way pneumatic operated valve, integrated into MS6 service unit combination. It can slowly build up pressure in pneumatic circuits to avoid sudden impact on actuators and machinery, and safely exhaust pressure when shutdown. LABS/PWIS compliant, suitable for painting lines and high cleanliness automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MS6-DL-1/2 |
| Part No. | 529817 |
| Type | Soft-start valve, 2/2 way pneumatic valve |
| Series | MS6 service unit series |
| Port size | G1/2 |
| Standard nominal flow rate | 6450 l/min |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4], inert gas |
| Working pressure | 4 ~ 18 bar |
| Temperature range | -10 ~ 60 ℃ |
| Material | Body: Die-cast aluminium, Seal: NBR |
| Weight | 650.00 g |
| Feature | Slow pressurization, exhaust function, LABS/PWIS compliant |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
| Standard | VDMA24364-B1/B2-L |
