575423 NEBV-S1WA25-K-2.5-N-LE25-S9
Product Overview
Item No: 575423 Model: NEBV-S1WA25-K-2.5-N-LE25-S9 Brand: Festo Type: Electrical Connecting Cable

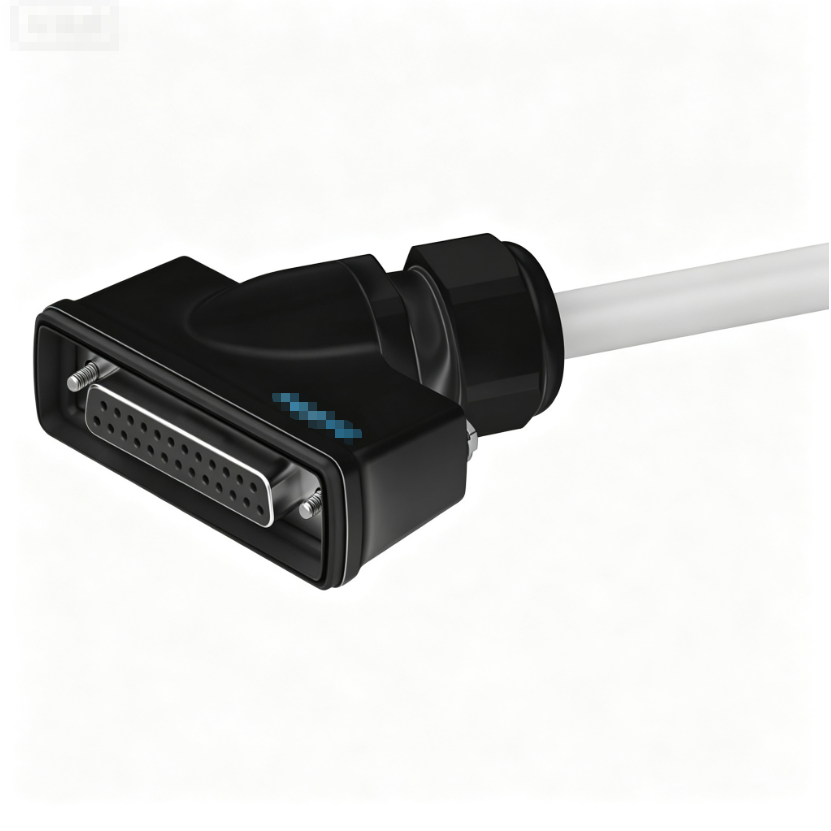

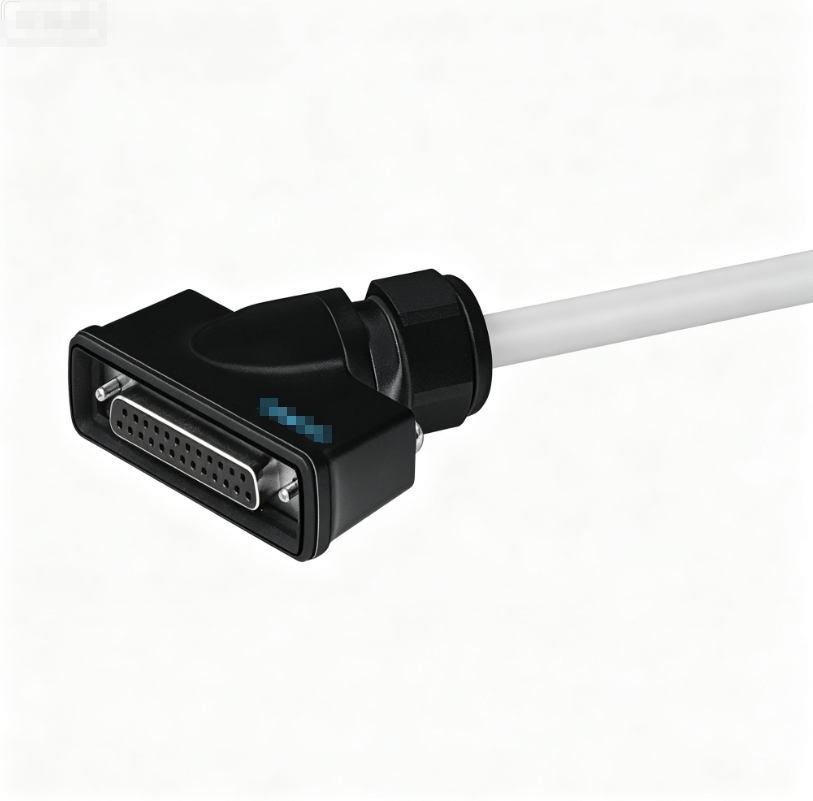

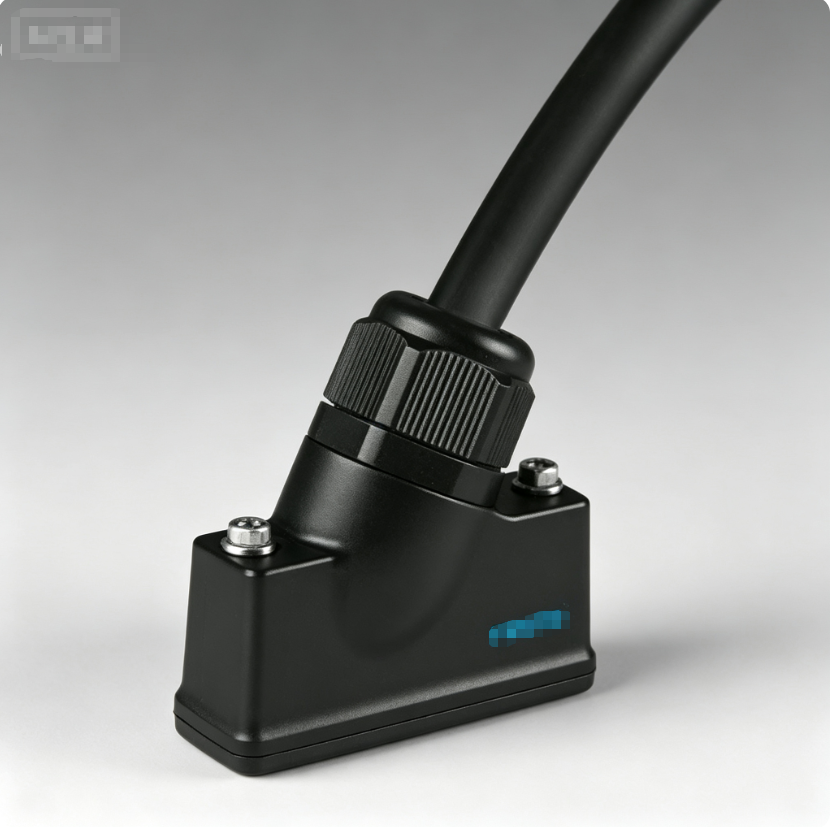

Festo NEBV-S1WA25-K-2.5-N-LE25-S9 connecting cable (575423) belongs to NEBV series Sub-D signal cable. One end is angled 25-pin Sub-D female socket for field device connection, the other end is open bare wire for controller wiring. Cable length 2.5 meters, 25 cores with 0.34mm² per core. Designed for valve terminal and industrial automation signal transmission, stable and reliable data transfer.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | NEBV-S1WA25-K-2.5-N-LE25-S9 |
| Part No. | 575423 |
| Type | Electrical Connecting Cable |
| Connector 1 | Angled Sub-D 25-pin Socket (Field device side) |
| Connector 2 | Open bare wire end (Control side) |
| Cable Length | 2.5 m |
| Cable Structure | 25 × 0.34 mm² |
| Outer Cable Diameter | 10.2 mm |
| Operating Voltage | DC 0 ~ 30 V |
| Current Rating @40℃ | 2.6 A |
| Surge Withstand Voltage | 2.4 kV |
| Feature | Reverse polarity protection |
| Protection Class | IP65 / IP67 (when mounted) |
| Ambient Temperature | -35 ~ +80 ℃ (fixed installation); -5 ~ +80 ℃ (flexible moving) |
| Material | PVC cable sheath (grey), PA66-GF30 connector housing, NBR seal, gold-plated bronze contacts |
| Standard | DIN 47100, RoHS compliant |
| CRC | CRC2, moderate corrosion resistance |
| Weight | 510 g |
| Condition | New Original |
