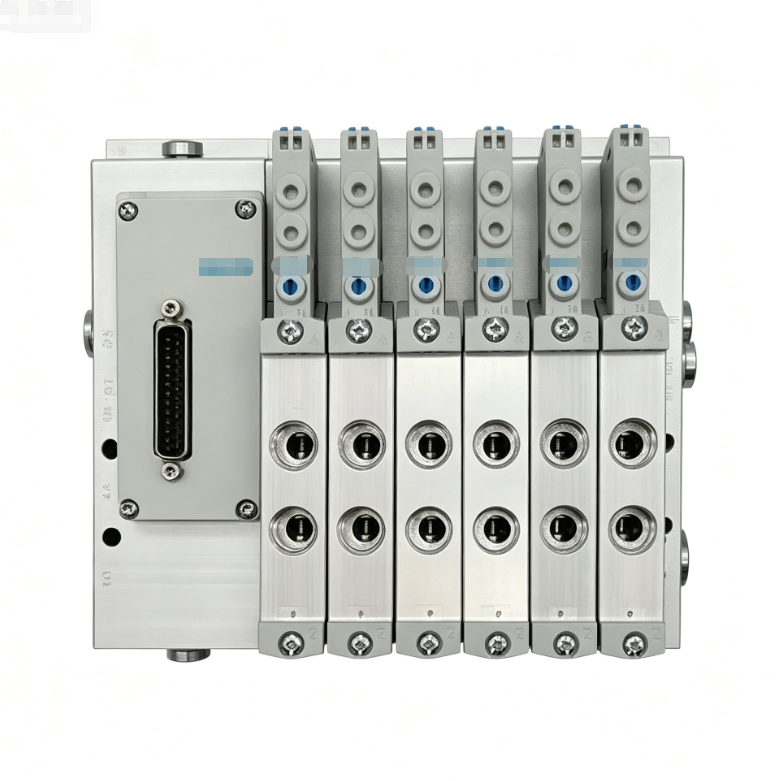

573606 VTUG-18-MSD-B1T-25V20-G38L-UL-Q8S-8A
Product Overview
Item No: 573606 Model: VTUG-18-MSD-B1T-25V20-G38L-UL-Q8S-8A Brand: Festo Type: Pneumatic Valve Terminal (Valve Island)

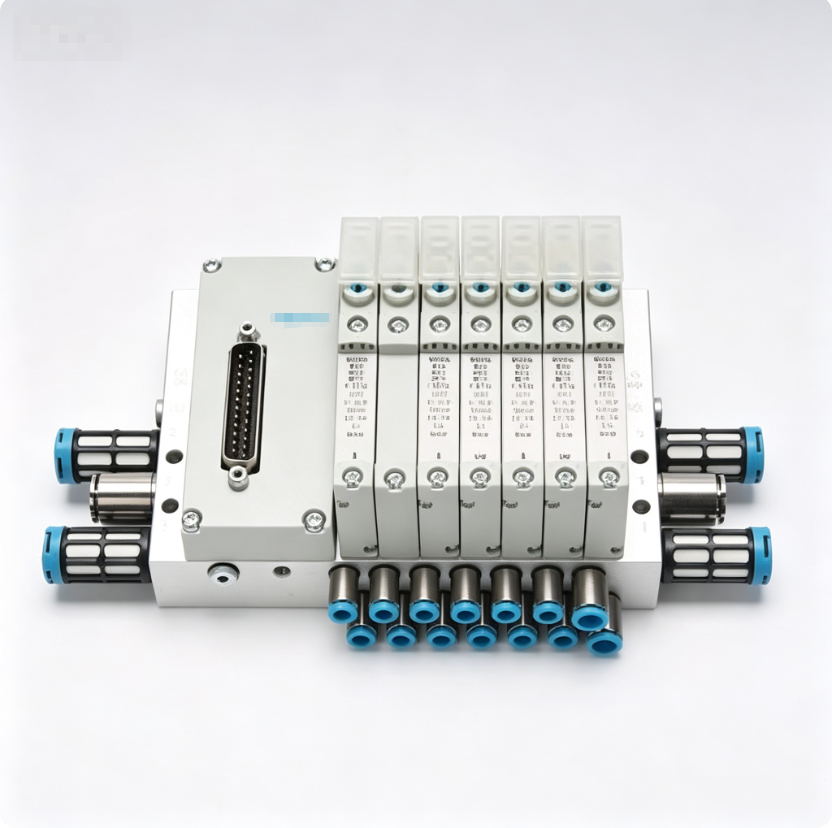

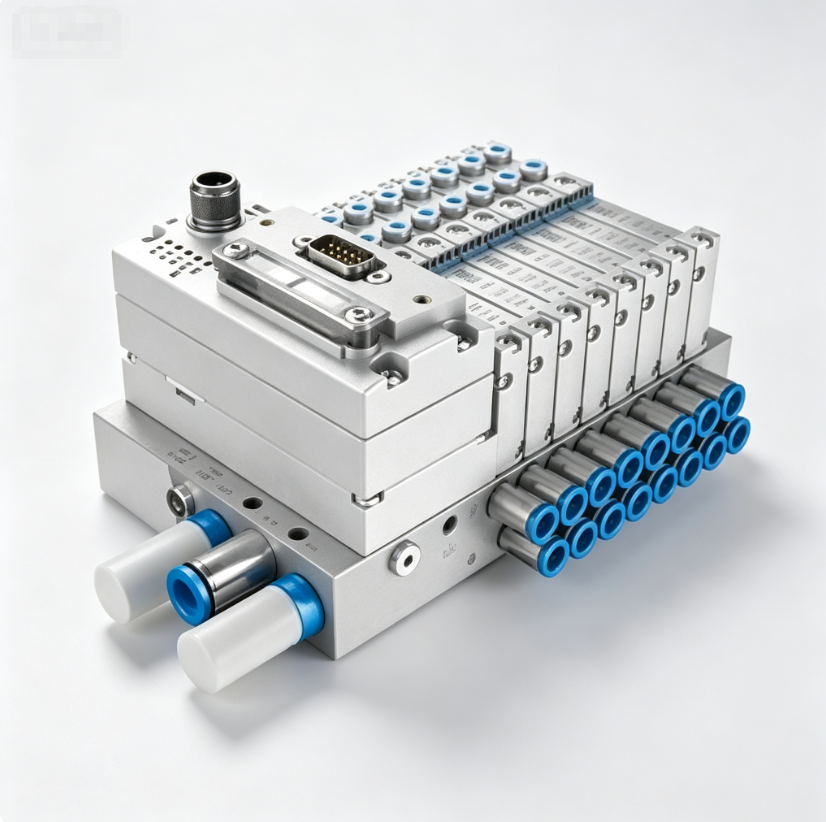

Festo VTUG valve terminal VTUG-18-MSD-B1T-25V20-G38L-UL-Q8S-8A (573606) is an integrated pneumatic manifold with 8 valve stations. Equipped with 5/2-way single solenoid valves, DC24V coil, MSD multi-pin connection, UL approval. It realizes centralized control of multiple pneumatic actuators, saves installation space and reduces wiring work. IP65 protection for harsh workshop environment.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VTUG-18-MSD-B1T-25V20-G38L-UL-Q8S-8A |
| Part No. | 573606 |
| Type | Valve Terminal / Pneumatic Manifold |
| Series | VTUG |
| Valve Type | Solenoid valve manifold |
| Number of valve positions | 8 stations |
| Valve function | 5/2-way, single solenoid |
| Coil Voltage | DC24V |
| Air Supply Port | G3/8 |
| Working Pressure | 0.2 ~ 0.8 MPa (2 ~ 8 bar) |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -5 ~ +50 ℃ |
| Protection Class | IP65 |
| Feature | MSD multi-pin connection, UL certified, Q8S quick plug, B1T, 25V20, G38L |
| Material | Aluminum manifold base, PA plastic valve housing, NBR seal |
| Mounting | Surface mounting |
| Condition | New Original |
